cup jelly filling sealing machine made in shanghai
Application:
BG60 series are applicable to fill and seal cups, bowls, boxes, trays, cans, pots and so on, used to fill with liquid, cream or solid material, such as yoghurt, milk, jelly, juice, ketchup, fruit salad, pulp, mineral water and so on.
Main Function:
- automatic cup dropping
- automatic filling
- UV sterilization(optional)
- double /twice sealing
- Photoelectric detection
- automatic cutting and wasted film recycle
- automatic cup feed out
- date printing(opitional)
Technical data(optional models)
| Model | BG60A-4C | BG60A-6C | BG60A-8C | BG60A-10C |
| Production capacity | 3000-4000 cups/h | 5000-6000 cups/h | 7000-8000 cups/h | 9000-10000 cups/h |
| Filling range | 50~300ml | |||
| Filling accuracy | <±1.5% | |||
| Vessel | cup, tray, bottle, box, can, container, tub, bucket, pot, etc. | |||
| Power | 3N-50HZ 380V | |||
| Power | 3.5Kw | 5 Kw | 6 Kw | 7.5 Kw |
| Air consumption | 0.8 cBM/M | 1 CBM/M | 1.2 CBM/M | 1.6 CBM/M |
| Dimension | 3300×710×1700 mm | 3800×630×1700mm | 3800×710×1700mm | 4000×800×1700mm |
| Weight | 700Kg | 800Kg | 1000Kg | 1200Kg |
This machine can be also used in following product(industry):
Quality guarantee:
1. Each machine is manufactured by our professional workers.
2. Each machine with a strict inspection before out of storage.
3. Each machine use a large number of 304 stainless steel.
4. Each machine use good quality electric elements.
5. After-sales service commitment: after one month, 3 months... we will have return visiting by phone or mail.
6. The warranty time is one year.
Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free, but clients pay for the freight from China to local place. If need our engineer go to help, clients need to pay for the freight of round-trip.
7. Beside the warranty days, we continue to provide life-long maintenance services.
8. Installation: We can send one technician to buyer's factory to install machine and train their worker.
Trade Terms:
1. Original: made in China
2. Package: wooden case.
3. Loading port: Shanghai
4. Payment terms: 50% deposit with the order, 50% balance before shipment.
5. Delivery time:45 days after receiving deposit and samples
6. Guarantee: 1 year
7. Remark: If you have special demand of some parts like motor, cylinder, control panel, filling, material, conveyor, collect table, plexiglass cover and others, please tell us.
Customer:
Packing and shipping:

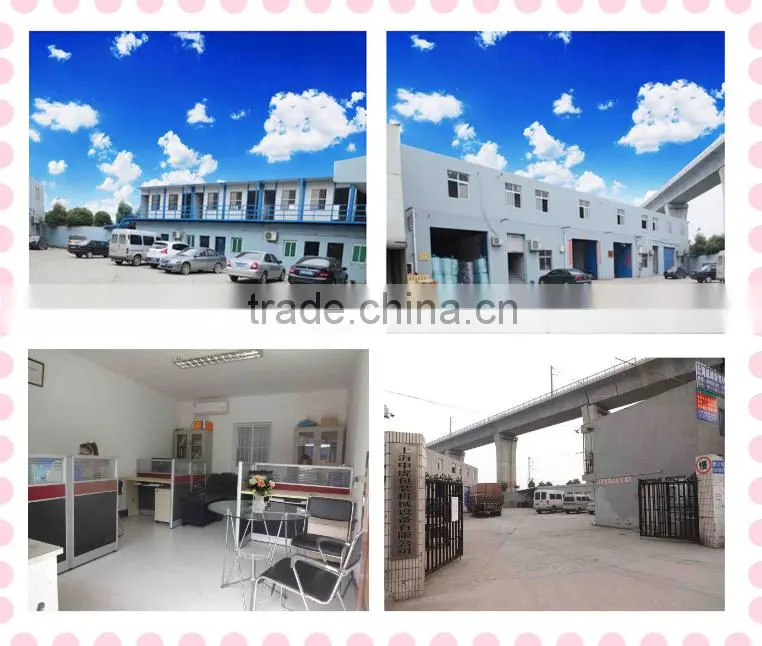

Our factory show:
