advanced Desktop hf rfid Reader 13.56Mhz with LCD display --RF-M8 Reader
Why do you choose us?
&15 years experience in RFID field
&Experienced in RFID software and hardware
&Timely delivery, competitive price and free sample for test
1. Brief Description:
RFID MF card reader
1) 125khz LF and 13.56mhz HF with USB/RS232/TCP/IP interface
2) TK/EM,MF ,Ultralight card reader
3) Card reader for payment
4) Free SDK
2.Performance Characteristics:
Basic Parameters | |
Model |
RF30-ID/ RF30-T5577/ RF30-S-X/ RF30-U-X/ RF30-H-X/ RF30-TP-X |
Dimensions |
100mm×100mm×27mm |
Operating temp |
0℃ to +50℃ |
Interface |
RS232/ USB/ TCP/IP |
Power Supply |
External Power/ USB/ POE |
RFID Parameters | |
LF |
|
Frequency Range |
125Khz/134.2Khz |
Protocols |
ISO11784/11785 |
Cards Supported |
TK/EM cards, T5577 cards, HIGH-TAG,Animal Tag etc. |
Read Range |
<5cm (depend on card) |
HF |
|
Frequency Range |
13.56Mhz |
Protocols |
ISO14443A; ISO15693 |
Cards Supported |
ISO14443A— MF 1K/4K, Desfire, Ultralight, Ultralight C ISO15693—I CODE2, Contactless CPU Cards |
Read Range |
<5cm (depend on cards) |
Models |
Specifications |
RF30-ID |
Serial port communication, external power, ID Cards identification |
RF30-T5577 |
Serial port communication, external power, Read/Write T5577 cards |
RF30-S-X |
Serial port communication, external power, Read/Write HF cards |
RF30-U-X |
USB, USB power supply, Read/Write HF Cards |
RF30-H-X |
USB, USB power supply, Read/Write HF Cards |
RF30-TP-X |
TCP/IP, POE Power or external power, Read/Write HF Cards |
- Contact Detail:
Address |
Yinhe Building, 2008 Xinluo str. High-tech District, Jinan 250101 Shandong Province, China |
Office |
0086-531-66955507 |
Skype |
sdmwrfid06 |

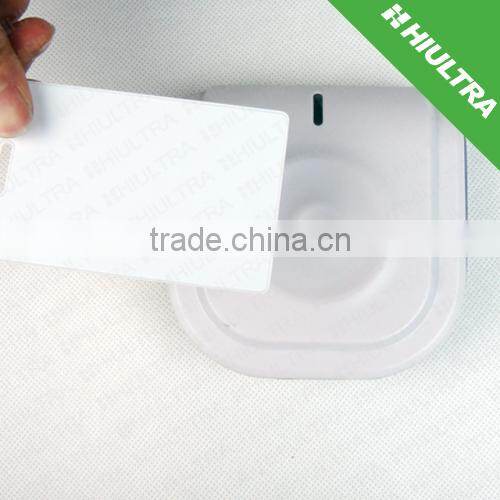

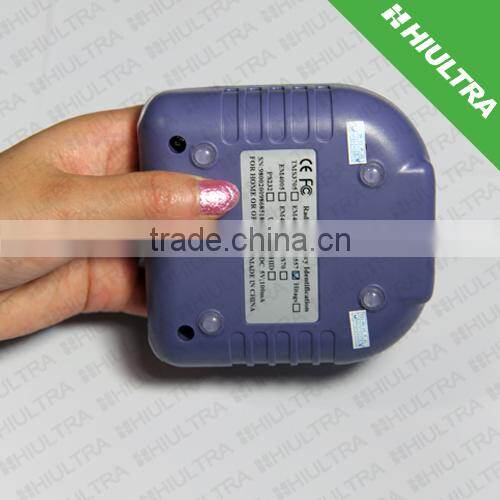

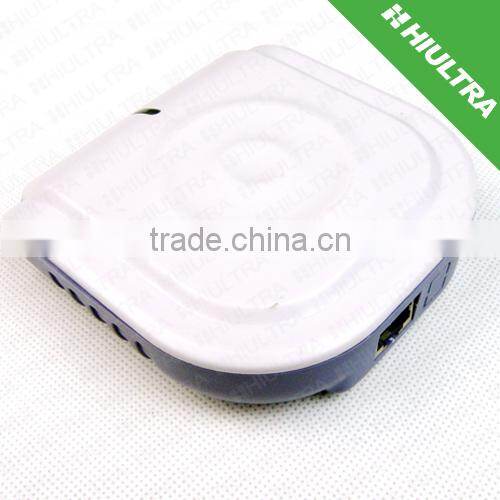

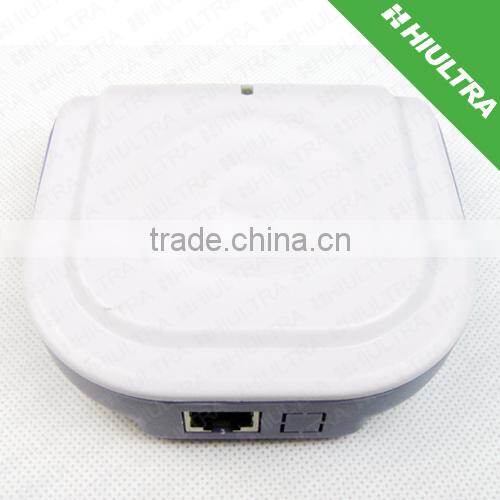

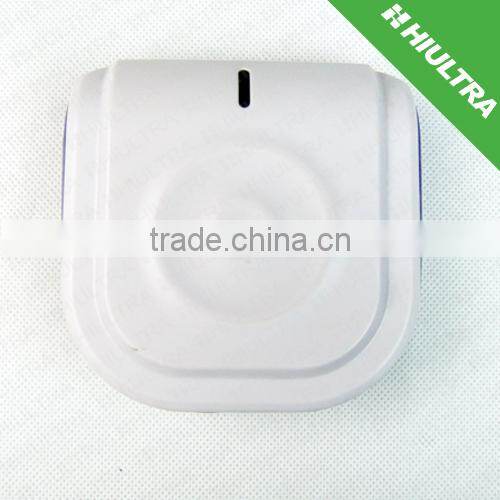

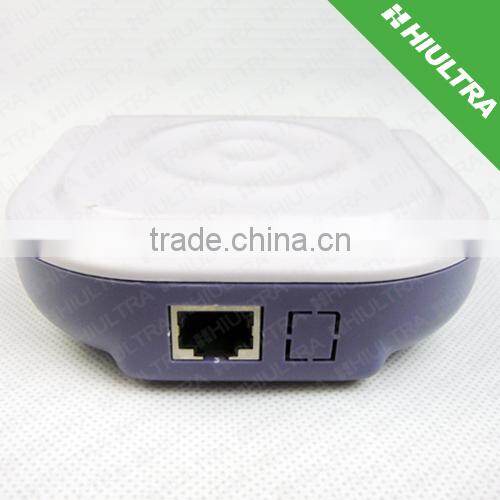

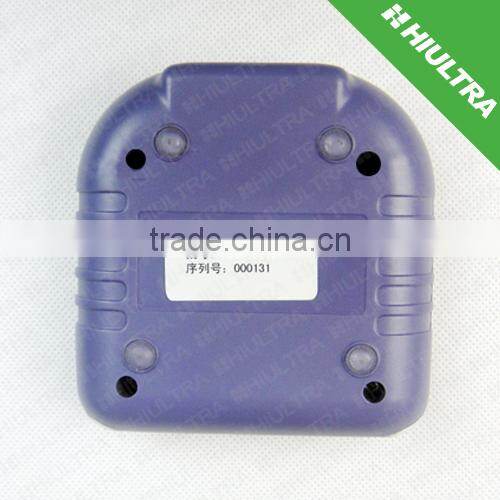

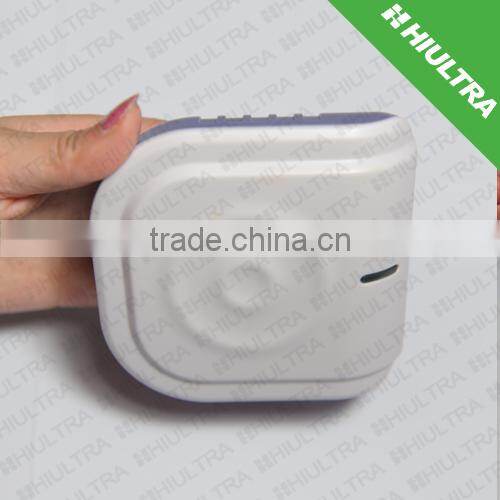

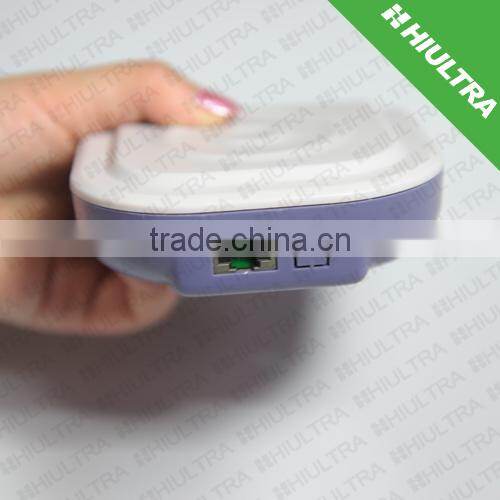

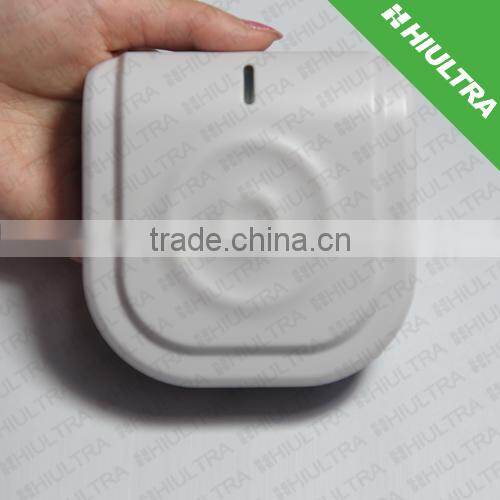

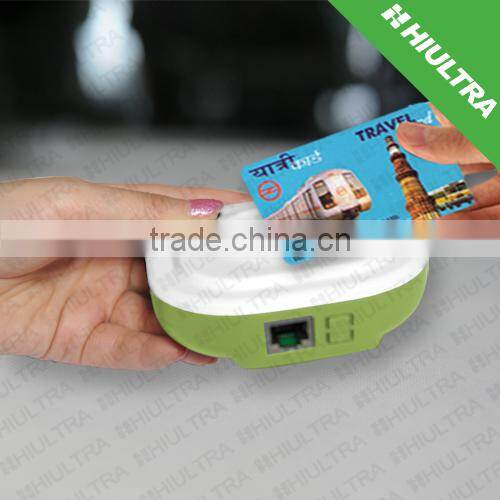

4.Product detail picture:
