Shenhu Automatic electronic tobacco flavors box packaging machinery
Product Features:
1.1.1This machine is specially used for cartoning pharmaceutical bottles such as:ointment.
Aluminum bottle and plastic bottle.
The machine could fold the leaflet,
open the carton and form ointment bottles automatically,
these actions could bo finished by synchronization,
the machine also could make the code printing on the catons.
The machines is controlled by PLC.
1.1.2Speed frequency transformer,machine interface and touch screen operation system,
it will show the cartoning speed and cartons counting.
The machine is versatile for cartoning many carton sizes
within the permitted range by adjusting and without changing parts.
The machine is also equipped with automatic detecting system,
it could reject the inferior carton and stop machine by positioning.
The touch screen can show the problem and soution of elimination.
Main Technical Parameters:
Specification of machine(mm) |
1300(L)×1200(W)×1500(H) |
Packaging dimension(mm) |
(L)60-120×(W)28-80×(H)28-55 |
Packaging speed |
40-100(cases)/(min) |
Air consumption |
5-8 L/Min |
Total power |
1.5kw |
Voltage |
220V/380V/50Hz |
Veight(about) |
950kg |
Machine Main Electrical Configuration
Serial |
Device Name |
Specification |
Quantity |
Manufacturer and Origin |
1 |
Main Motor |
CH750-15SZB |
1 |
Chenbang |
2 |
DC relay |
MY2NJ(DC24V) |
|
OMRON |
3 |
HMI & Touch Screen |
NB7W-TY00B |
1 |
OMRON |
4 |
PLC |
CP1E-NA20DR-A |
1 |
OMRON |
5 |
Drive |
AS2-107 |
1 |
Taiwan Edley |
6 |
Optical fiber |
FD-620-10 |
1 |
German Otto Nikos |
7 |
Photoelectric switch |
PMZ-LF10 |
1 |
German Otto Nikos |
8 |
Photoelectric switch |
S51-PA-Z-C10-NK |
1 |
German Otto Nikos |
9 |
Photoelectric switch |
SMZ-NO |
1 |
German Otto Nikos |
10 |
Proximity switches |
BSP12-1NO |
3 peices |
German Otto Nikos |
11 |
Pneumatic components |
|
|
Taiwan Chelic |

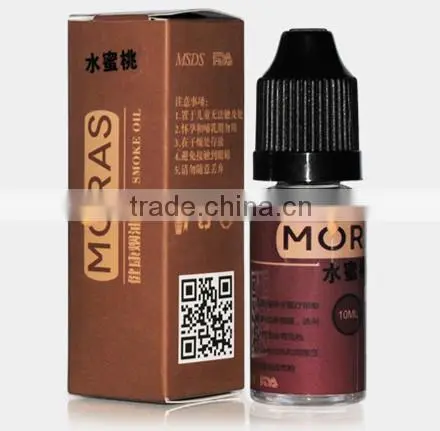

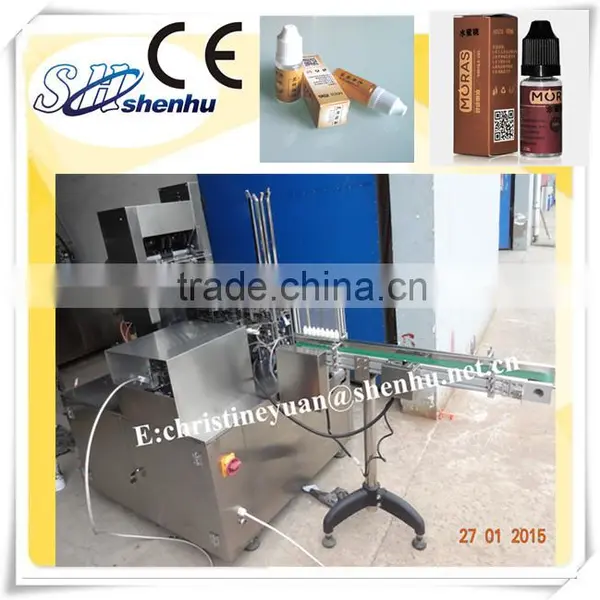

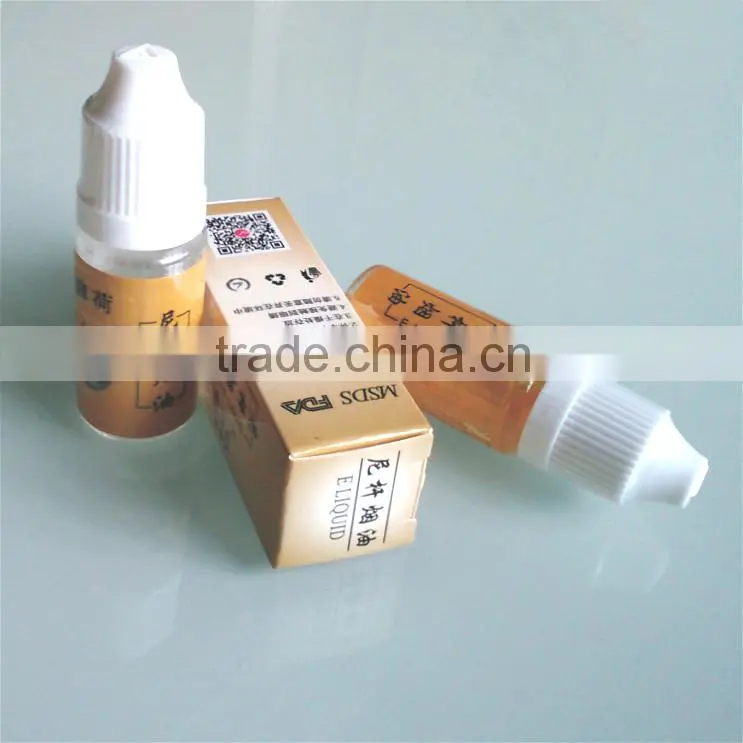

Machine reference pictures:
Machine Detailed Pictures:
