Rfid Tag for the Jewerly Tracking-15 Years RFID Experience

US$ 0.01 - 0.03 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

HY-P002 rfid tag for the jewerly tracking

Shandong H-RFID Information Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Jinan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HY

Model Number HY-P002 rfid tag for the jewerly tracking

Specifications

rfid tag for the jewerly tracking
*anti theft system
* HF, UHF iso 18000-6c
* made by paper
*long distance about 5 meters

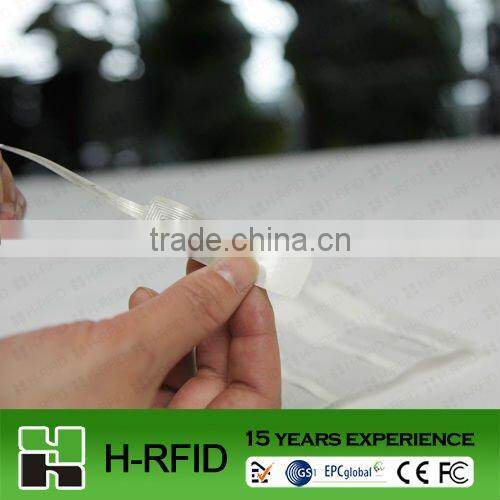

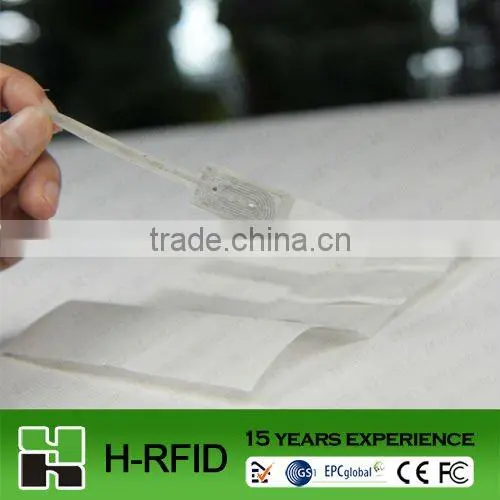

customized size RFID UHF paper tag for jewerly tracking

RFID UHF paper tag Description:

Adopt Frequency Hopping working mode, with strong anti-jamming ability.
User can define the reading& writing of standard data, to make their special application system more efficient.
The effective reading distance can reach up to 8m (up to read and antenna). With 1024 writable user area (ISO18000-6B protocol) and 512 bits writable user area (EPC Gen2 protocol) .
With ultra-wide working frequency design. Meet the relevant industry regulations, and is suitable for flexible application development.
196 bits memory area for user to read, write and re-write. With permanent special area for appointed user.
Passive type, with no battery. The memory area is re-writable for more than 100,000 times. The useful life can be 10 years above, so it’s very cost-effective.

RFID UHF paper tag Specifications

Protocol	ISO18000-6B, ISO18000-6C (EPC GEN2)
Frequency Range	ISM 902~928MHz (FCC), ISM865~868MHz (CE)
Working Mode	Fixed Frequency or FHSS, Software Programmable
Memory Capacity	MR6740A tag supports ISO18000-6B protocol, with 1024 bits (128 bytes) writable user area; MR6740B tag supports EPC GEN2 (ISO18000-6C), with 96bits writable EPC Code area, and 512 bits writable user area.
Reading Rate	Software Programmable. Average Reading per 64Bits: <10ms
Tags Material	Paper material, tamper-proof
Reading Range	>12 m maxium, determined by reader and antenna
Operation Temp	-20°C~+80°C
