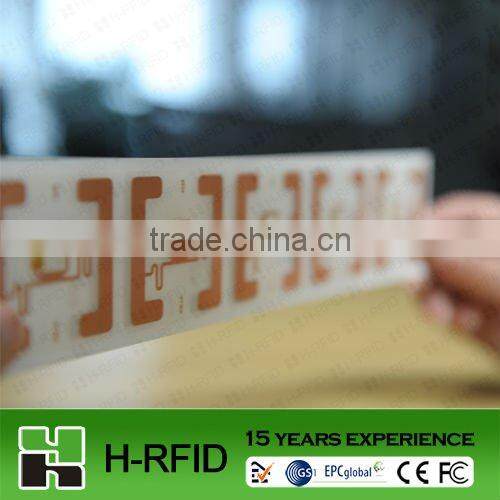

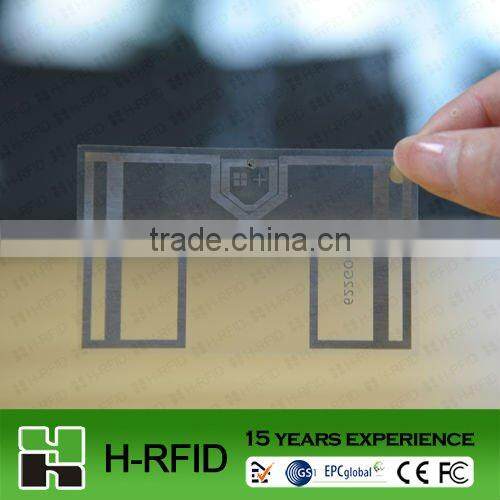

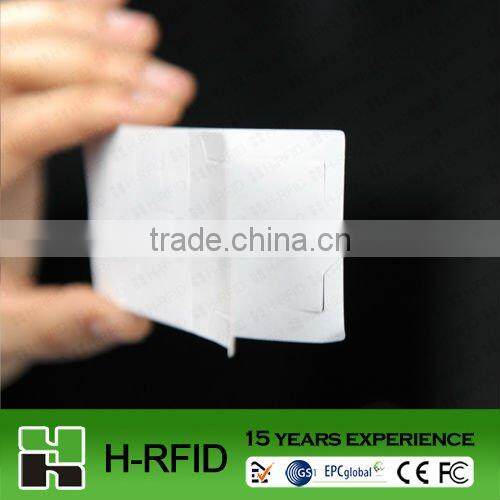

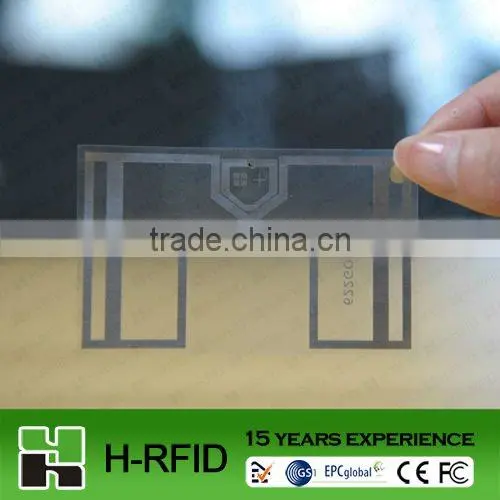

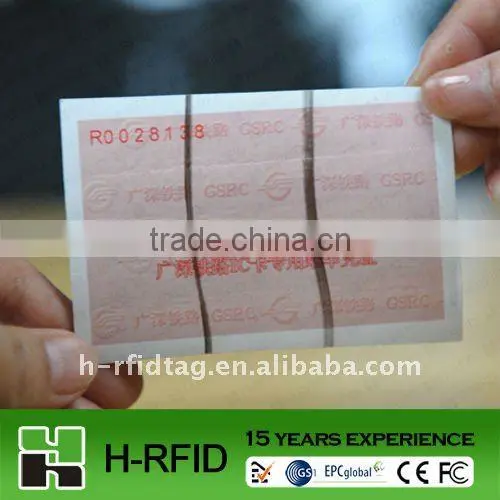

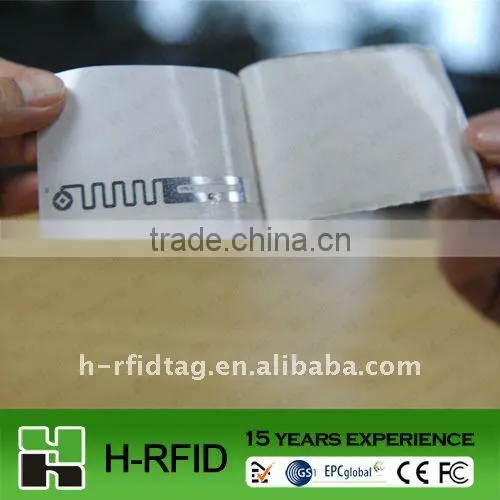

Assets Management Application 6C UHF RFID Paper Tag

Name: Assets Management Application 6C UHF RFID Paper Tag
Brand: HY rfid paper tag
SKU: 100205517
Availability: InStock

Shandong H-RFID Information Technology Co., Ltd.

US$ 0.01 - 0.03 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

HY rfid paper tag

Model Number:

rfid paper tag

Payment & Shipping

Payment Methods:

Port of Shipment:

Jinan

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name HY rfid paper tag

Model Number rfid paper tag

Specifications

rfid paper tag
*HF/UHF optional
*customized size,shape
*factory for 15 years
*offer rfid paper tag free samples for test

assets management application 6C UHF RFID paper tag

rfid paper tag
*HF/UHF optional
*customized size,shape
*factory for 15 years
*offer rfid paper tag free samples for test

Description:

Adopt Frequency Hopping working mode, with strong anti-jamming ability.
User can define the reading& writing of standard data, to make their special application system more efficient.
The effective reading distance can reach up to 8m (up to read and antenna). With 1024 writable user area (ISO18000-6B protocol) and 512 bits writable user area (EPC Gen2 protocol) .
With ultra-wide working frequency design. Meet the relevant industry regulations, and is suitable for flexible application development.
It can read and write multi-tags (up to 50pcs/s ), and is not affected or restricted by tag quantity in the working area.
1960 bits memory area for user to read, write and re-write. With permanent special area for appointed user.
Passive type, with no battery. The memory area is re-writable for more than 100,000 times. The useful life can be 10 years above, so it’s very cost-effective.

Specifications

Protocol	ISO18000-6B, ISO18000-6C (EPC GEN2)
Frequency Range	ISM 902~928MHz (FCC), ISM865~868MHz (CE)
Working Mode	Fixed Frequency or FHSS, Software Programmable
Memory Capacity	MR6740A tag supports ISO18000-6B protocol, with 1024 bits (128 bytes) writable user area; MR6740B tag supports EPC GEN2 (ISO18000-6C), with 96bits writable EPC Code area, and 512 bits writable user area.
Reading Rate	Software Programmable. Average Reading per 64Bits: <10ms
Tags Material	Paper material, tamper-proof
Reading Range	>12 m maxium, determined by reader and antenna
Operation Temp	-20°C~+80°C
