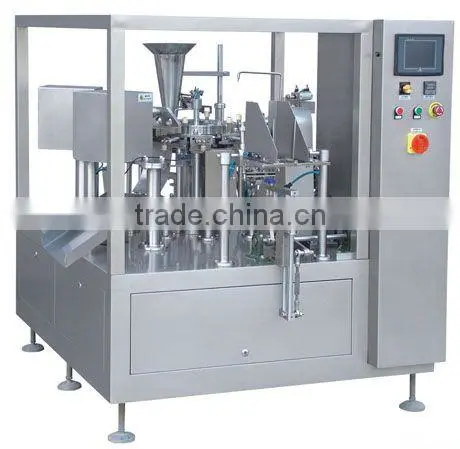

This machine is suitable for filling and sealing for the powder. premade pouch rotary filling and sealing machine .
1) Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch and electric control system, the man-machine interface is friendly.
2) Frequency conversion adjusts the speed: this machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3) Automatic checking: no pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.
4) Safety device: Machine stop at abnormal air pressure, heater disconnection alarm.
5) Horizontal conveyer style to giving bag: it can put on more bags on the bag storage and have a low requirement about the quality of bags.
6) The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
7) Use the plastic bearing; don't need put on oil, less pollution.
8) Use no oil vacuum pump; avoid polluting the environment in the production.
9) The open zipper framework is special in the feature of zipper bag, it can avoid distortion or destroy when open zipper.
10) The packing materials loss low, what this machine is used the reformed bag, the bag pattern is prefect and has a high quality of the sealing part, this improved the product specification.
11) Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food.
12) With different feeders changed to pack solid, liquid, thick liquid, power and so on.

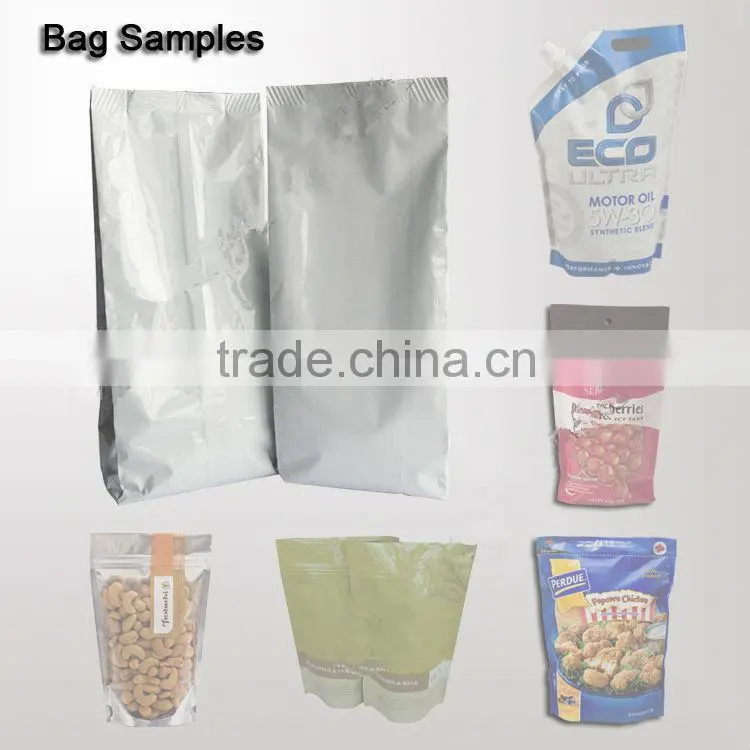

13) The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on preformed bag made by film and paper. pouch rotary filling and sealing machine

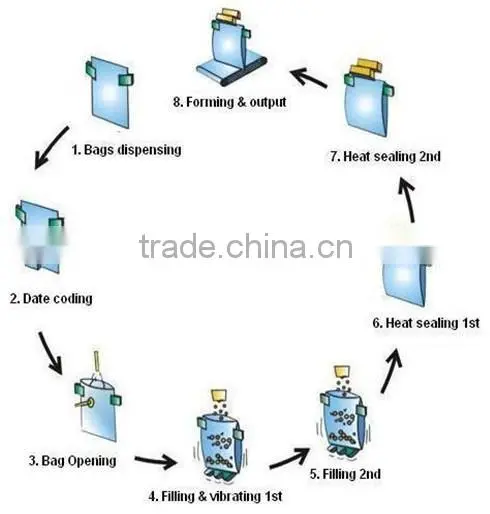

Working Position |
Eight-working position |
|
Pouch Material |
Laminated film |
|
Pouch Size |
W:100-210mm L:100-350mm |
|
Filling Scope |
Granule |
10-1000g (can be adjusted) |
Liquid |
50-500ml (can be adjusted) |
|
Weight Accuracy |
Granule |
±0.1-2g |
Liquid |
±1-5ml |
|
Speed |
20-55pouches/min (The speed depends on the product status and filling weight) |
|
Power source |
380V 3phase 50HZ |
|
Total power |
2KW |
|
Compress air |
0.6m3/min |
|
Standard Export wooden case. premade pouch rotary filling and sealing machine .
Delivery within 15-30 days
1.Installation & adjustment
After the equipment are arrived at the customer’s site, the customer is responsible for unpacking and arranging the equipment according to the placement drawing; and does under our install-adjust technicians’ guidance. Costs of the staff are decided at last.
2.Training
We are responsible for offering the technical training to user. The training content includes the structure and maintenance of the equipment, control and operation of the equipment. Through training, users' technical staff can grasp and the skill of operation and maintenance proficiently, and deal with the general troubles in time. We will appoint qualified technical staff for the guidance.
3.Quality assurance
We guarantee the line achieve product technical performance indicators within 5 days after feeding operation through the correct guidance of the installation and commissioning.
We are responsible for the fault and damage of the production line caused by our design, technology, manufacture, installation, adjustment and material defect etc. that all belong to our responsibility.
The warranty period is 12 months after acceptance check of the production line. If there is any different between the furnished equipment in the customer’s factory and the equipment concerned in the contract, the users have the right to pass the inspection book to the legal department to claim for compensation to our company within goods warranty period.
4.Warranty
Offer 12 months maintenance period to the problem that caused by our design, manufacture and the material quality, and offer the relevant parts and effective service for free for above reason. We will offer a widely and favorable technical support, after service all the time after guarantee period.
Shang hai shen hu Machinery Co., Ltd. is located in shanghai. We are specialized in manufacturing tube filling and sealing equipments for more than 10 years.
The automatic tube filling machine HTGF series we manufactured are well known in China. Many trading companies order from us export to their customers. We provide high quality machines with life-long aftersale service. premade pouch rotary filling and sealing machine .
Warmly welcome you to visit us!
If there is any confusion, please feel free to contact us.
