Specifications

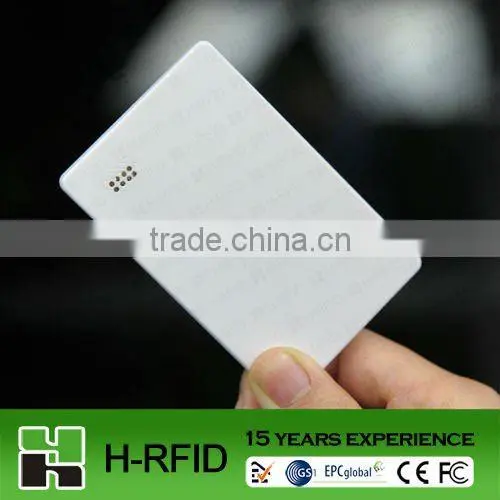

RFID Card F08 Chip made by FUDAN1,Frequency:13.56Mhz
2,Card surface:Matte/gloss finishing
3,Dimension:85x53x0.84mm
2012 New style active RFID tag with battery inside -15 years RFID experience
RFID active tag
Frequency: 2.45Ghz
2.reading distance: 250 m
3.Used in parking system poeple location
4. 5-10 year

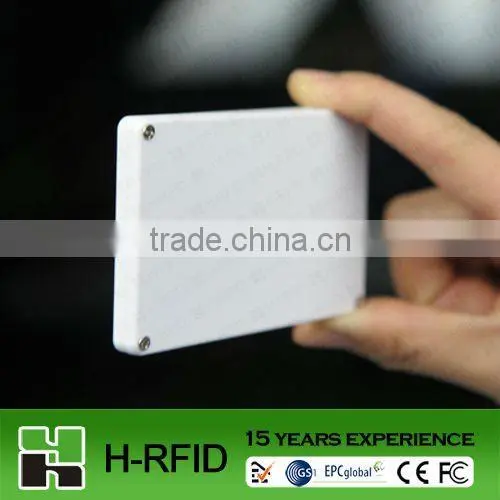

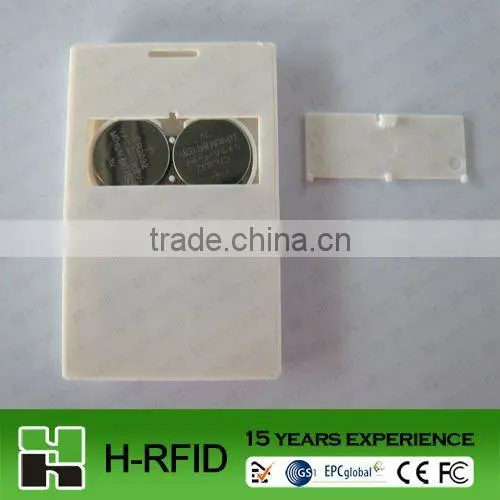

RFID active tag with battery inside
Frequency: 2.45Ghz
2.reading distance: 250 m
3.Used in parking system or poeple location
4. 5-10 year
Overview
MS-JS80 series 2.45 GHz active RFID identification, locating and tracking system is designed and developed aiming at some special customer requirements; it is one kind of high functions, high reliable locating and tracking system.
MS-JS80 is the pioneer of active series electronic tags, with large capacity battery, guarantee a very long working time.
Applications
- Person-location management system under coal mine
- Motor vehicle electronic license auto-identification system;
- Wild animals tracking and management;
- Warehouse electric power equipment inspection
- Storage tray and other containers tracking and management;
- Container transportation by sea, river, highway and railway.
Technical parameters
Specification | |
Work frequency |
2.4GHz-2.5GHz |
Work mode |
Active or passive |
Reading distance |
0-100m 0-50m 0-25m 0-10m |
Inquiry time |
0.25–0.375s; 0.5–0.75s; 1.0–1.5s; 2–3s; |
Reading speed |
200km/h |
Type |
Read only; read and write |
Anti-collision |
Can read 2000pcs tags at the same time |
Static current |
<10uA |
Max. work current |
<15mA |
Work voltage |
3V |
Water proof |
With water proof function |
Extended functions |
With battery indicator, calling function |
Size |
54mm×86mm×4.5mm |
lifetime |
5 years |
Transmitted power |
< 1mW |
