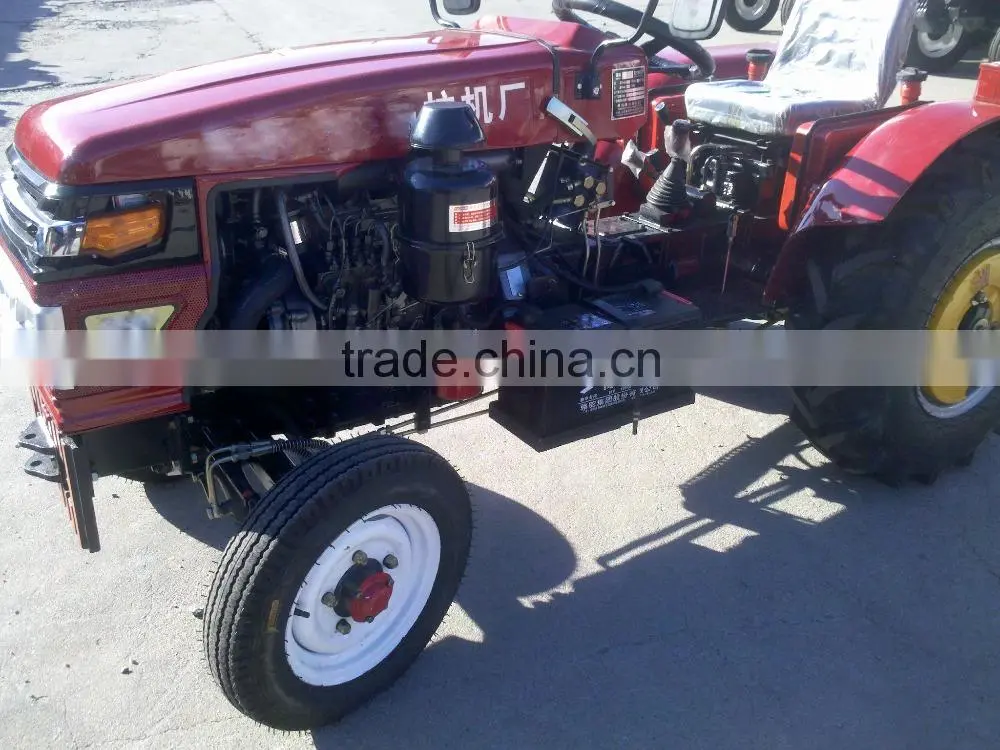

Agricultural 40HP 2 Wheeled Drive Mini Tractor

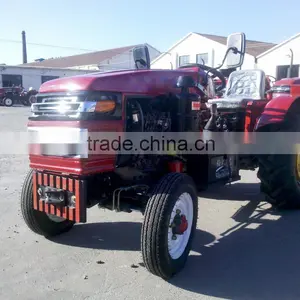

Agricultural 40HP 2 Wheeled Drive Mini Tractor thumbnail-1
Agricultural 40HP 2 Wheeled Drive Mini Tractor photo-1
US$ 3,600 - 3,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Chongqing Lilliput Technology&Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 29400
Brand Name Lilliput Mini Tractor
Model Number LL-400
Place of Origin Chongqing, China
After-sales Service Provided No overseas service provided

Agricultural 40HP 2 Wheeled Drive Mini Tractor

 Agricultural 40HP 2 Wheeled Drive Mini Tractor

Type

LL400

Model

4*2 (two-wheel driving)

Dimension (mm)

Length (with front loading)

3513

Width

1823

Height (to vent)

2130

Wheelbase (mm)

1880

Front-wheel tread (mm)

1200~1500 (1300 in common use)

Rear wheel tread (mm)

1200~1500 (1300 in common use)

The smallest ground gap (mm)

400

Agriculture ground gap (mm)

450

Turning radius(m)

apply the brake with single side

3.1

not apply the brake with single side

3.5

The whole tractor mass (kg)

structure mass

1665

the smallest using mass

1840

Loading mass

front loading

108

rear loading

360

Rated traction (KN)

9

Engine type

490BT

Marked power (KW)

36.8

Clutch

10 inch double action

Gear box

Shift combination style. Mesh cover shift

Speed range

2.4-31.9

Centre turn

Spire and taper sub-gear

Different speeder

Double planet wheels, close style

Different speed lock

Post and pin style

Final transmission

Planet gear style

Front driving bridge

 Full closed prick gear style (for types with 4- wheel driving )

Independent driving box

   Column gear with straight teeth (for types with 4-wheel driving )

Front wheel table specification

6.0-16

Rear wheel table specification

12.4-28

Redirector type

Mechanical or hydraulic turning

Arrester type

Arrester with double pieces of oil-bath tray (mechanical style)

Lifter type

Semi-separation

Control way to plough depth

Force, place control and floating control

Hanging device type

Three point hanging with postposition

Driving output axis turning speed (r/min)

540/760

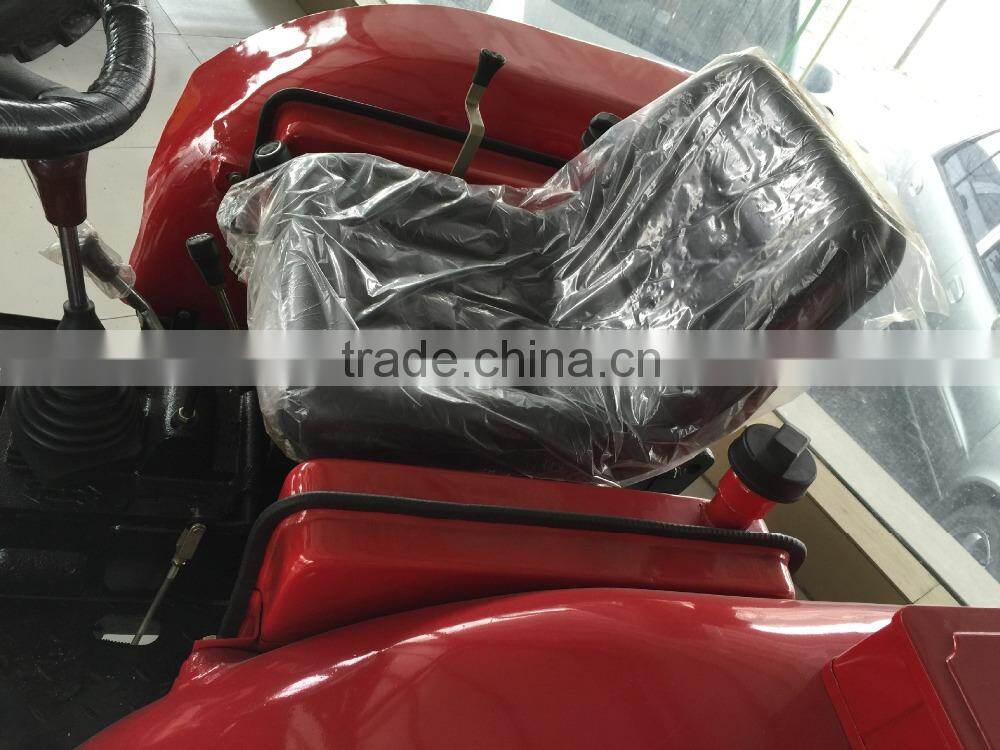

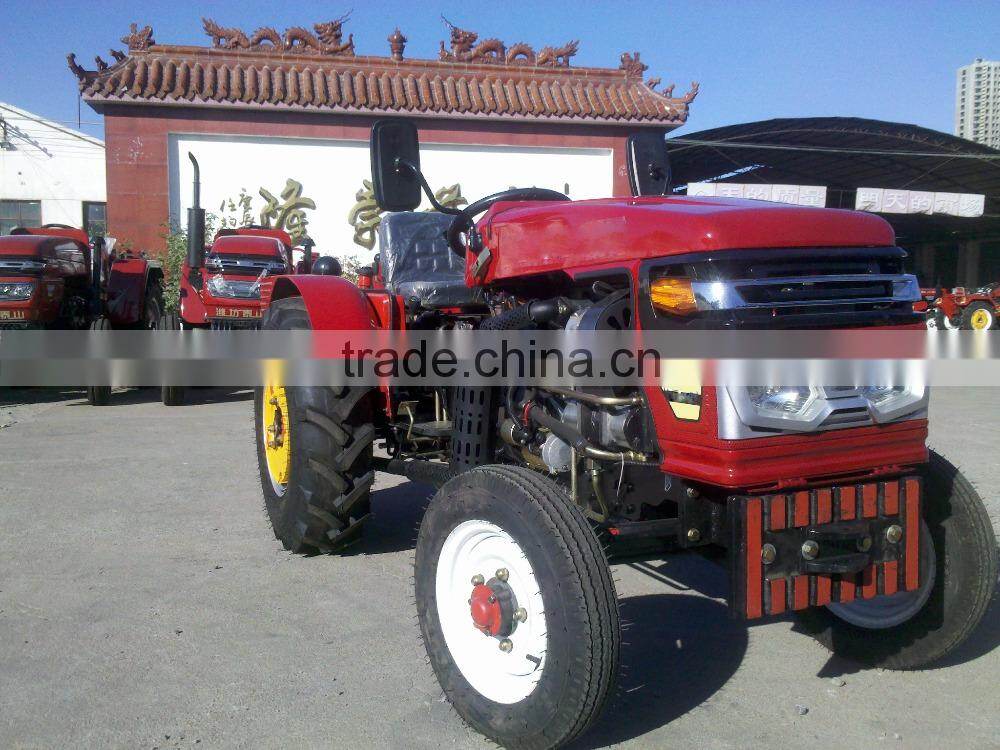

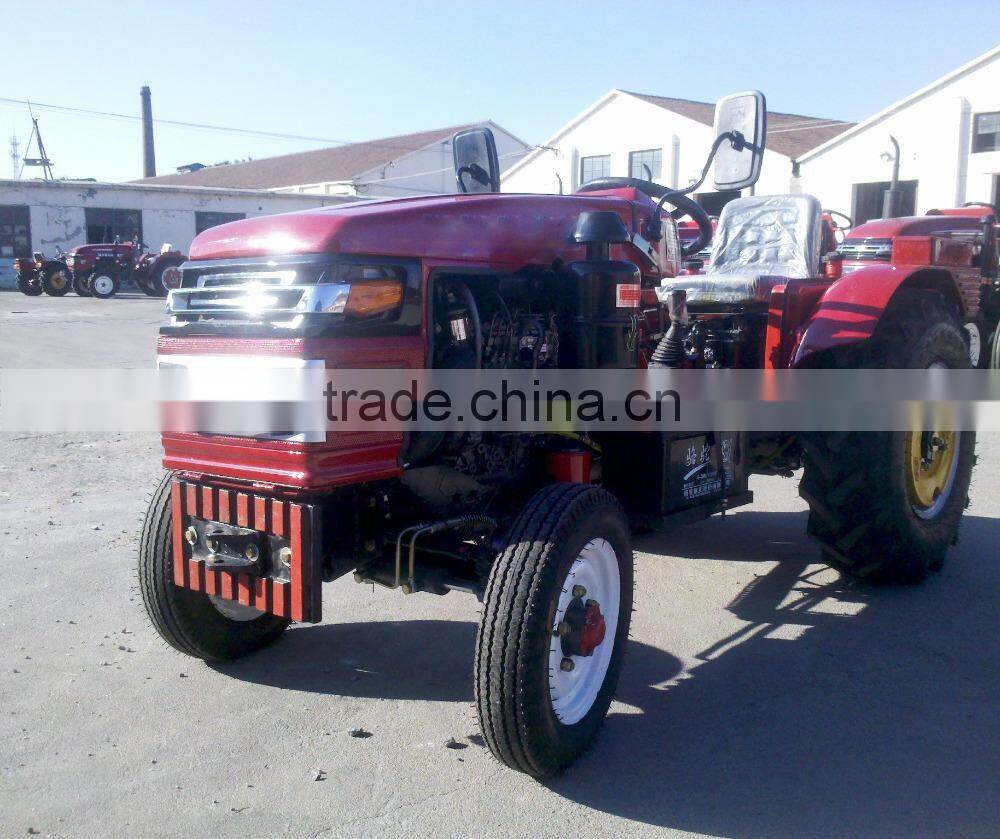

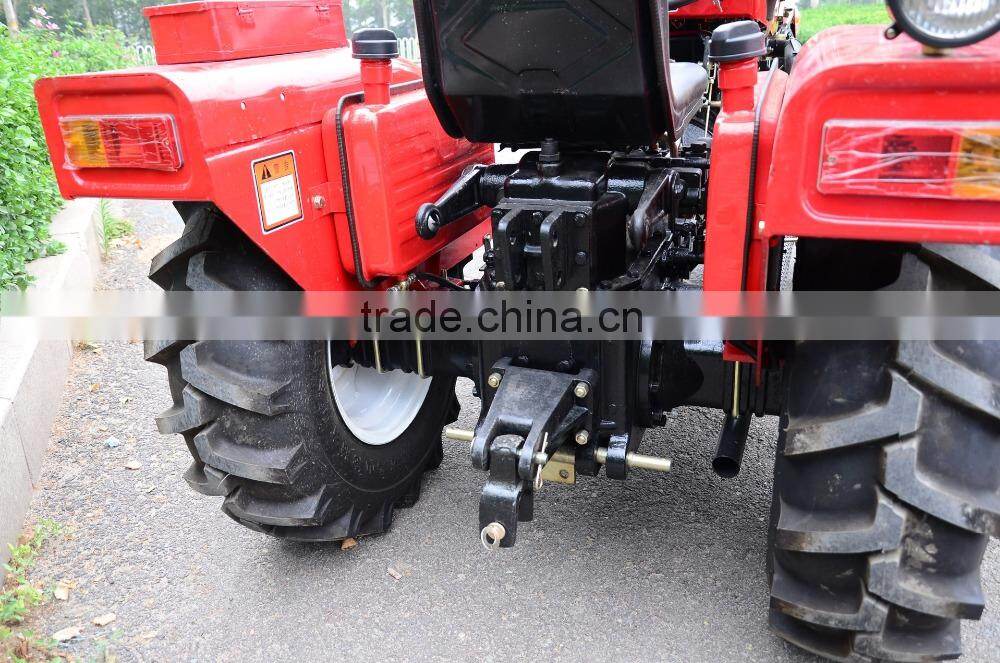

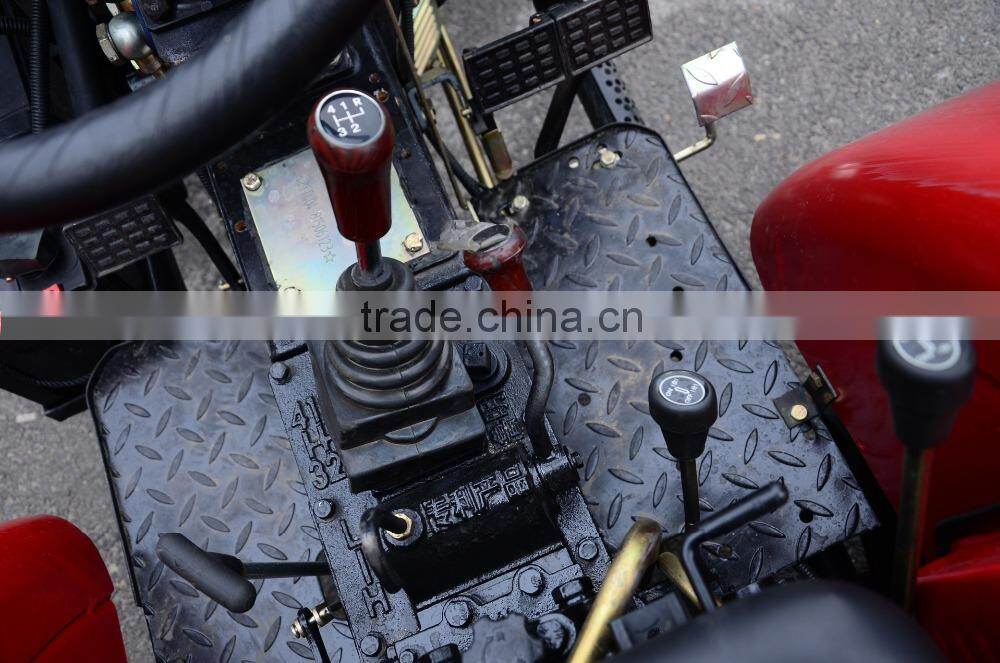

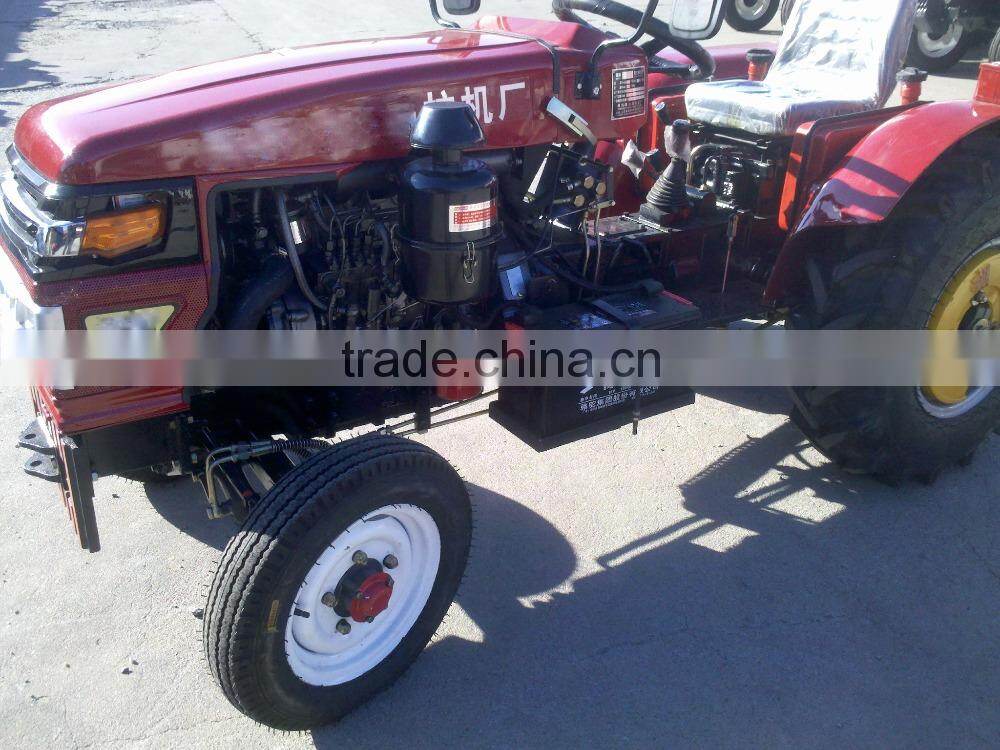

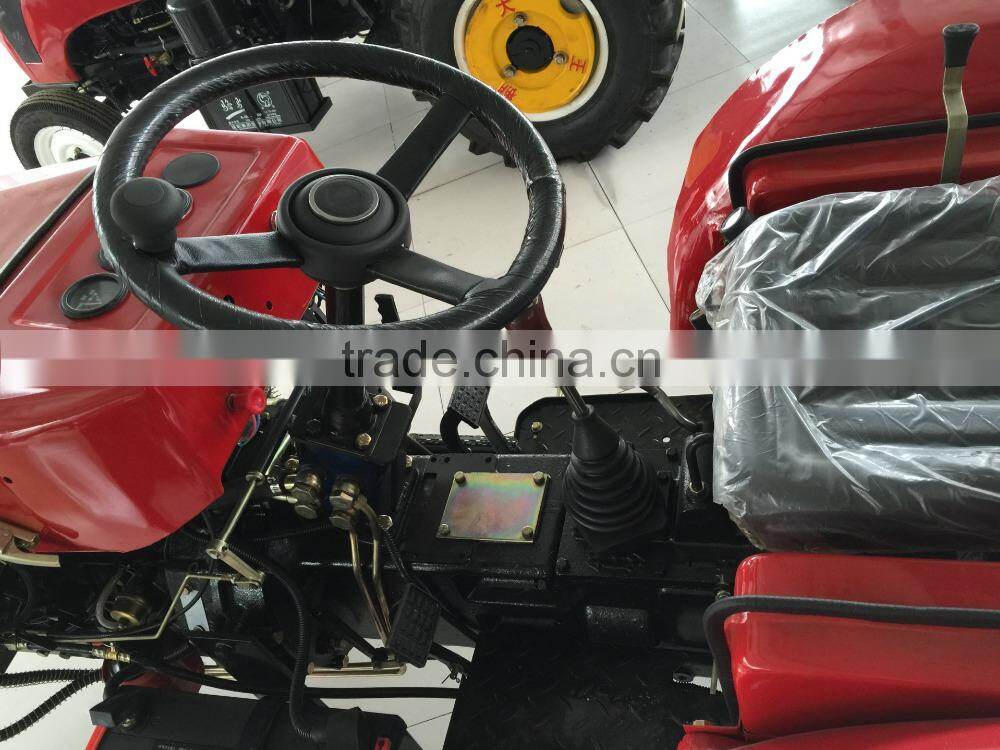

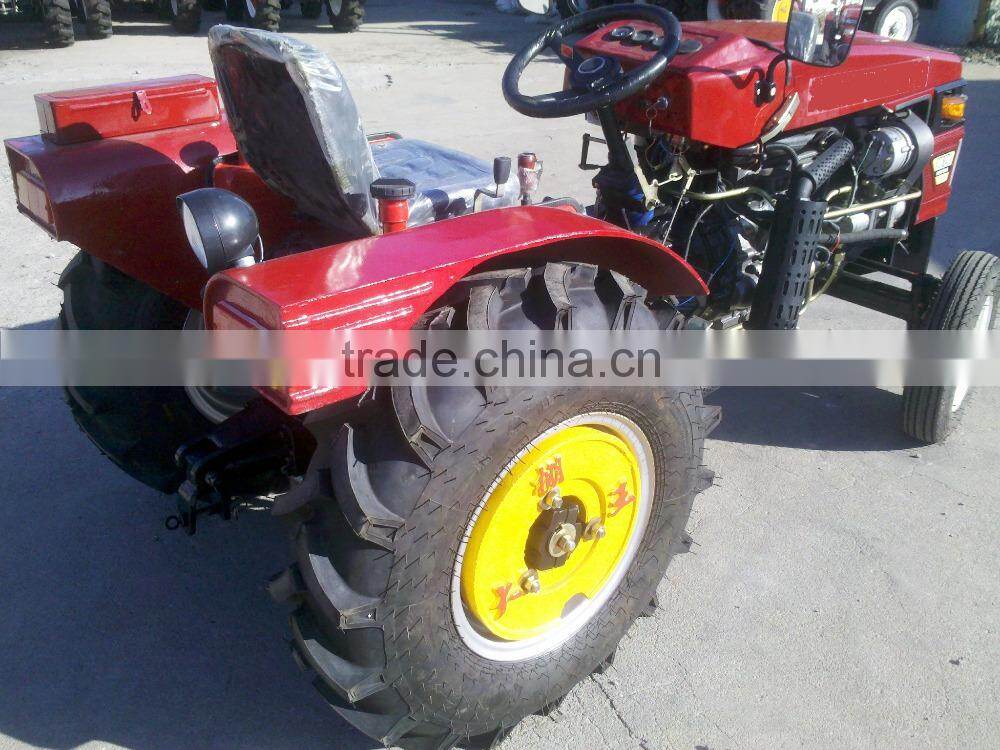

Product Pictures



 Agricultural 40HP 2 Wheeled Drive Mini TractorAgricultural 40HP 2 Wheeled Drive Mini TractorAgricultural 40HP 2 Wheeled Drive Mini TractorAgricultural 40HP 2 Wheeled Drive Mini Tractor

Agricultural 40HP 2 Wheeled Drive Mini TractorAgricultural 40HP 2 Wheeled Drive Mini TractorAgricultural 40HP 2 Wheeled Drive Mini TractorAgricultural 40HP 2 Wheeled Drive Mini Tractor

Packaging & Shipping

 Agricultural 40HP 2 Wheeled Drive Mini TractorAgricultural 40HP 2 Wheeled Drive Mini Tractor

Agricultural 40HP 2 Wheeled Drive Mini Tractor

1. Quality and delivery time guarantee.

2. Quick reply,any of your inquiry or questions will be replied in 1 working hour and 12 hours.

3. We will do as much as we can to meet your requirements about tillers(Logo,color etc).

4. Products could be finished as per your samples or drawing.

5. Your sales area, ideas of design and all your private information are under protection.

6. We will follow the order by photo and video to you when producing and packing.

7. We have Alibaba Trade Assurance,it can protect your order.

Agricultural 40HP 2 Wheeled Drive Mini Tractor



Agricultural 40HP 2 Wheeled Drive Mini Tractor

1.Can I buy only one set for personal use?

Of course,One set is available, but the freight cost of only one is pretty expensive.

2.What about the payment terms?

T/T,L/C,Paypal,Western Union etc. 30% deposits; 70% balance before delivery.

3.How about the delivery time?

Usually, it takes 10-30 days after depositing, anyhow, it depends on the order details.

4.How about your products' quality?

Checking in the whole manufacturing process and 100% inspection before shipment ensure quality of our products.

5.What about the warranty?

1 year warranty for whole products, except e-damage parts.

6.Where is your factory located? How can I visit there?

Our factory is located in Chongqing China,You can fly to Chongqing Airport. You are warmly welcome to visit us!
