Specifications
#Hydraulic Cutter Clamp Battery#Cut capacity: Q235 circle steel 25mm diameter
#Cut force 320KN
#Spread Distance 300mm

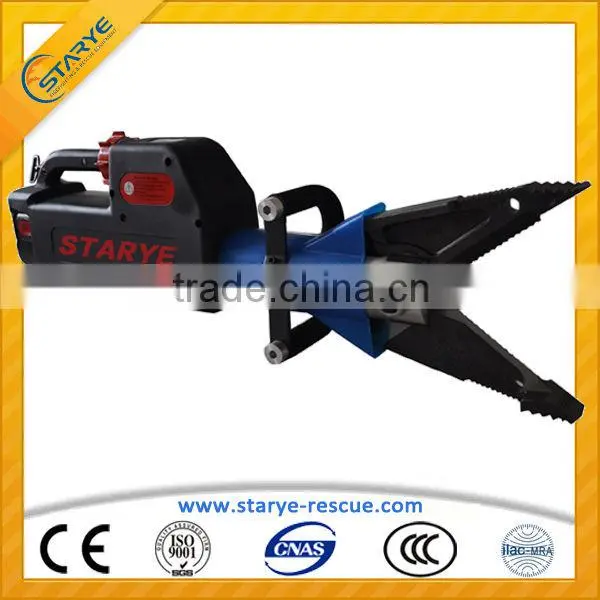

Hydraulic Cutter Clamp Firefighting Vehicle Extrication Rescue Tools
Battery hydraulic spreading cutter, also called hydraulic cutter clamp whilst a cutter or spreader tool is designed for a particular application, a battery combination tool, or combi-tool as popularly referred to by the fire department, is also available which combines the cutting and spreading functions of separate tools into a single tool, powered by battery or power source or vehicle battery. In operation, the tips of the cutter's blades are wedged into a seam or gap — for example, around a vehicle door — and the device engaged.
- Vehicle accident rescue;
- Earthquake and other disasters rescue;
- Railway rescue;
- Unclenching the door and metal structure into deformation;
- The hydraulic cutter clamp can cut metal structure, vehicle parts, pipeline and metal plates.
- 1-Power and cutting & spreading function in one.
- 2-No need for outer power unit or hydraulic hose for the hydraulic cutter clamp.
- 3-Big size with big capacity, suitable for most kind of rescue situation.
- 4-2 pieces of batteries ensuring the hydraulic cutter clamp constantly works during rescue
- 5-3 systems’ pump achieves the powerful driving for operation
- 6-Charging time of only 25-35seconds per time
- 7-Battery life is longer than 1000 times if cutting circle steel of 28mm
Technical Data of Hydraulic Cutter Clamp | |
| Model | BC-320/300-A |
| Rated Working Pressure | 63MPa |
| Rated Spreading Force | 78KN |
| Cutting Force | 320KN |
| Max. Cutting Capacity | φ25mm(Q234 circle steel) |
| Spreading Distance | 300mm |
| Opening Period without load | 7s |
| Closing Period without load | 9s |
| Weight | 21.8kg |
| Dimension(L*W*H) | 903*281*183mm |
Shandong Starye Firefighting Equipment Co., Ltd. devotes ourselves to exporting firefighting equipment backed up by our own factory and various products serious. The final station for purchase firefighting and rescue equipment in China will impress you lifetime as long as we have the chance to be your supplier.
Products involves in Hydraulic rescue tools, hand operated combi tool, rescue tripod, air lifting bags, escape chute, smoke ventilator, crowbar, diamond chain saw, concrete rescue tools and other firefighting & rescue products which are mainly used by Fire brigade, public safety department, private rescue team, fire trucks manufacturer.
We remain total free warranty service(including exchange or repair) during warranty period on all our products exported overseas.
Q: What are the conditions of becoming a distributor of Starye in my region?
A: As long as you own the marketing resources in your region that can help us to sell.Or you have capacity to do local after sales services.
Q: What are the benefits of being a Starye distributor?
A: - Special discount .
- Marketing protection.
- Priority of launching new design.
- Point to point technical supports and after sales services.
Q: How many distributors do we have now in Starye?
A: Starye just starts to establish distributors worldwide from this year. So if you are interested in this business, please be quick.
Q: How can i become a distributor of Starye?
A: Contact us immediately for further details by sending us an inquiry.
