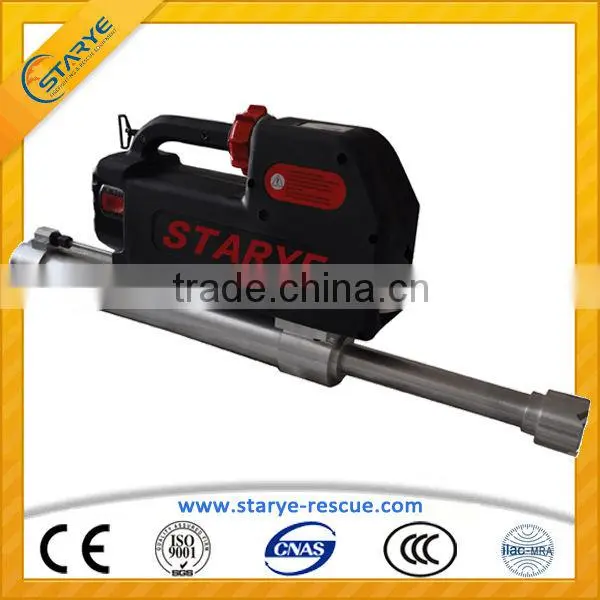

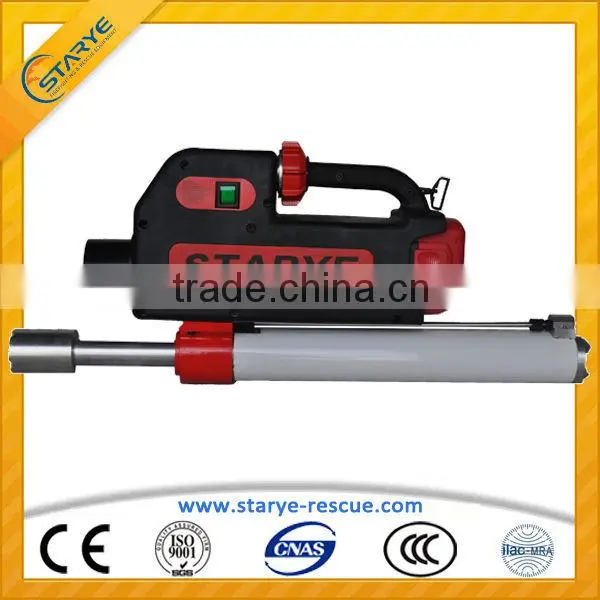

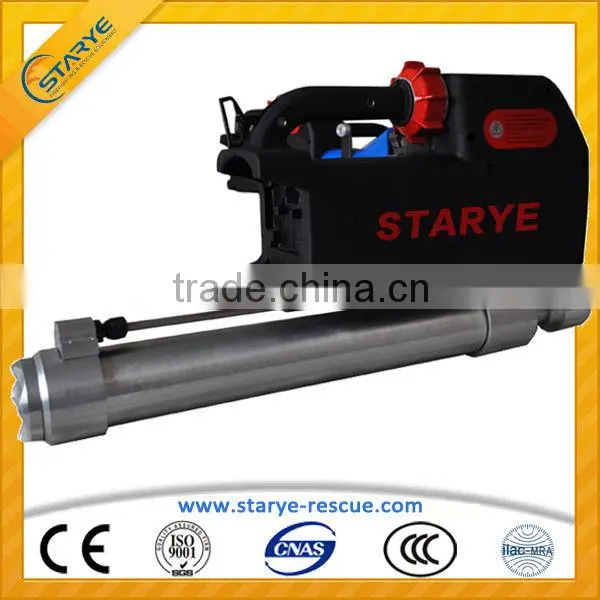

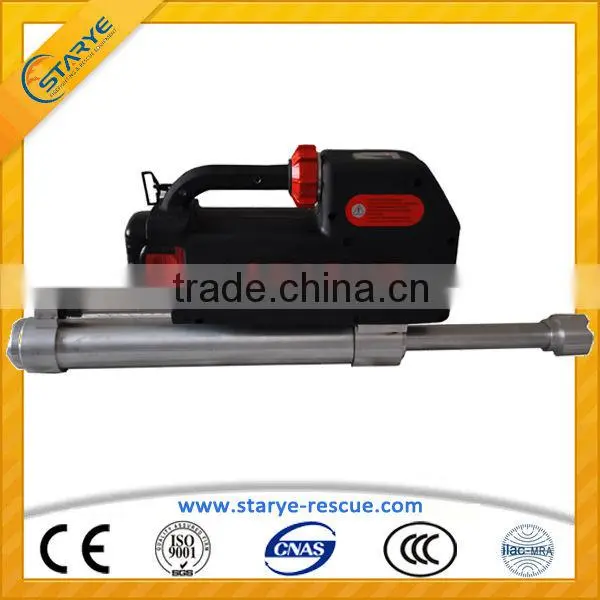

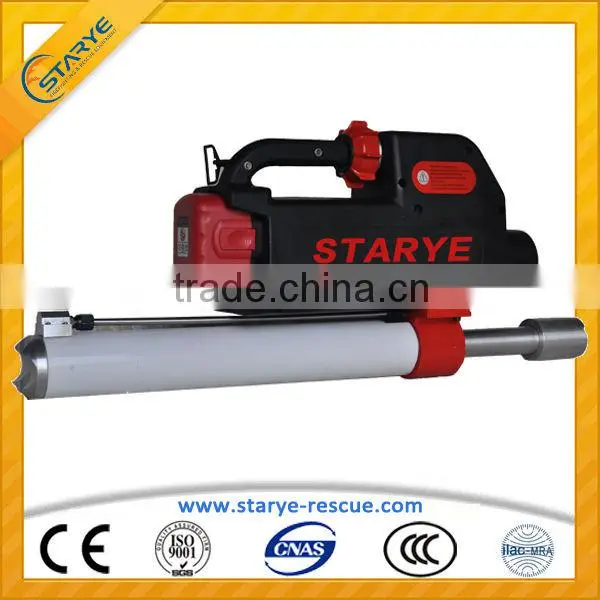

Hydraulic Hand Tools Battery Electric Ram

Name: Hydraulic Hand Tools Battery Electric Ram
Brand: Starye
SKU: 100175171
Availability: InStock

US$ 1 - 8,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

Starye

Model Number:

BR-260/360-A

Shandong Starye Firefighting Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name Starye

Model Number BR-260/360-A

Type Other, Hydraulic Pullers, Electric Ram

Electric Ram Vehicle Extrication Rescue Cylinder Portable Firefighting Lifting Equipment

Description: Electric rams are powered by battery or electricity
Functions: Lifting & supporting heavy objects during rescue operation like car accident and other emergency circumstance.
Introduction: The Electric ram is an important rescue tool for lifting & stabilization. A electric ram is the one powered by rechargeable batteries.

Highway railway accident rescue air crash and beach relief.
Buildings and disaster relief.
Moving obstacles, top objects, create rescue channels and maintain object stable.

This single electric ram supports high rescue jacking force, light weight can provide the max jacking force at 260KN, enough for vehicles rescue and general relief.

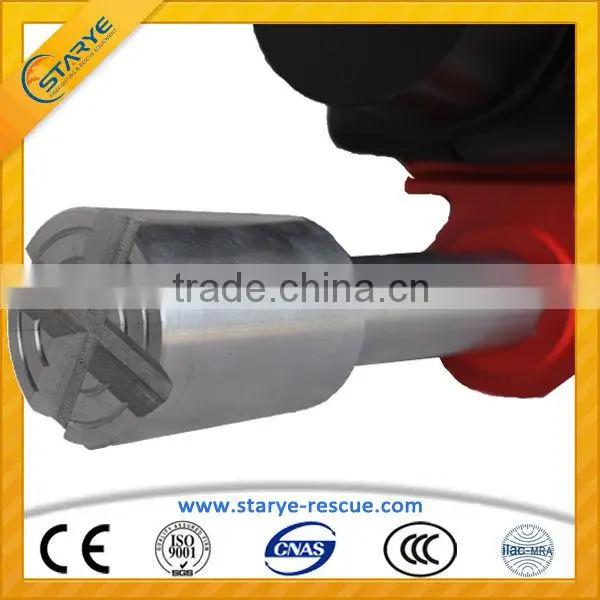

Piston cylinder of the electric ram uses high strength and lightweight alloy manufacture, elaborate design of both antiskid tooth to make sure when under stress won't fall off;
Bi-directional hydraulic lock and automatic reset valve operation can ensure the operator’s security;
Short in top-up time consuming, accelerate rescue process.
Charging time of the battery ram costs only 25-35seconds per time.

Technical Data of Electric Ram
Model	BR-260/360-A
Rated Working Pressure	63MPa
Max. Lifting Force	260KN
Closed Length	680mm
Lifting Scope	360mm
Length of Extending	1040mm
Extra Piston BarsⅠ/Ⅱ/Ⅲ	100/175/275mm
Weight	12kg
*Dimension(LWH)*	64090301mm
