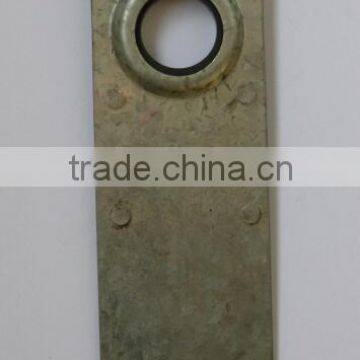

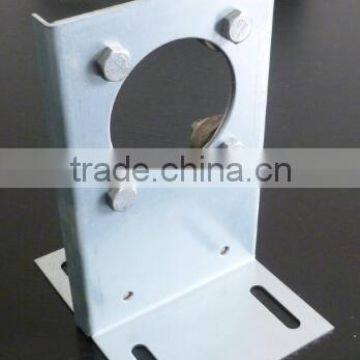

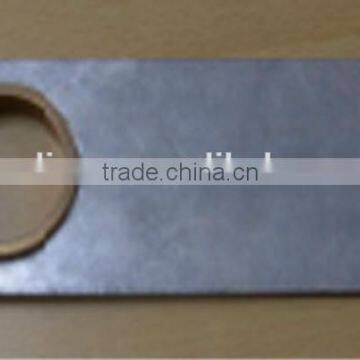

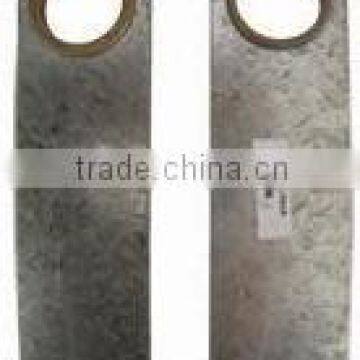

Help CenterGreenhouse Drive Shaft Support Bearing Brackets
Related Products
-
Greenhouse Rack & Pinion for Shading System & Window Opening System Quality ChoiceUS$ 0.1 - 5MOQ: 100 Sets -
Greenhouse Steel Rack and Pinion for Ventilation and ShadingNegotiableMOQ: 1 Set
-
Greenhouse Rack & Pinion Ventilation SystemUS$ 1 - 2MOQ: 1 Set
-
Greenhouse Ventilation Rack and PinionUS$ 1 - 20MOQ: 500 Sets
-
Greenhouse Shade Net Driving Equipment Gear MotorUS$ 1 - 300MOQ: 1 Set
We deal in greenhouse supplies for years, with greenhouse structure, covering materials, equipments and components for ventilation and for shade system.
Driving shaft and its support
Put the driving shaft to the shaft support, and connect the 2 neighbouring StyleAPinions with the driving shaft. When the 2 neighbouring pinions’ center line is parallel with the driving shaft line position, fix the shaft support to the pole of the structure.
All the shaft supports are installed in the same way as mentioned above. All the drivingshafts should be on the same parallel position. Disconnect the shaft from the place where the motor is positioned, for preparation of the motor installation.

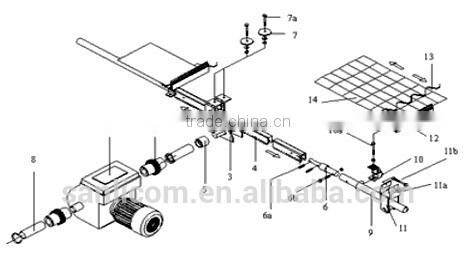

Item |
Name |
Specification |
Application |
1 |
Shading Motor |
GW10,GW30,GW40,GW80 |
torque 100-800Nm;rotate speed 2.6-5.2rpm |
2 |
shaft joint |
1",5/4" |
1",5/4"driving shaft |
3 |
Pinion |
Style A,transmission ratio 1:1.8 |
1",5/4" driving shaft |
4 |
Rack |
L=3160,3965 mm |
Greenhouse section 3-5m |
5 |
Welding joint |
1",5/4" |
1",5/4" driving shaft |
6 |
Coupling connector for rack |
dia. 27,dia 32 |
dia. 27,dia. 32 handspike |
