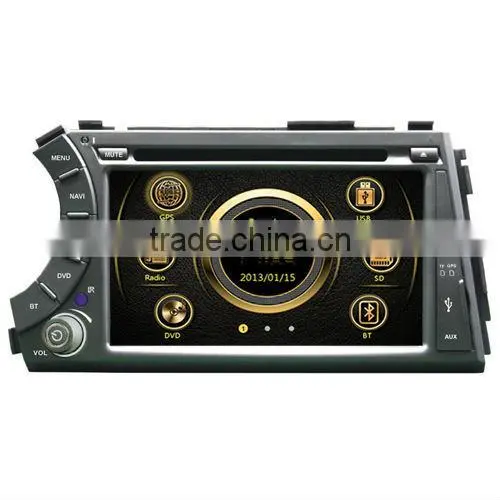

car audio gps system for Ssangyong Kyron/Actyon

Specifications

1.car audio gps for Ssangyong Kyron/Actyon
2.Dual Core topspeed processor
3.Virtual 6CD copy
4.3G internet
5.720P MP5

Car audio gps system for Ssangyong Kyron/Actyon with GPS/Bluetooth/Radio/SWC/Virtual 6CD/3G internet/ATV/iPod/720P RM/720P RMVB



Descriptions:



1. 8 inch Hannstar HD Original Digital touch screen, high temperature loader;

2. Sirf A4 + DSP Topspeed Dual Core processor;

3. Support MP4/MP5(720P RM/RMVB)/SVCD/DVD/AVI/JPEG/BMP/MP3/WMA, etc;

4. Built-in Bluetooth, Support BT phonebook with Name Searching function;

5. Bulit-in AM/FM Radio, RDS for option;

6. iPod ready, support iPod List;

7. Support Analog TV, Digital TV(CMMB/ISDB-T/DVB-T/ATSC) for option;

8. Dual Zone;

9. Support 6 CDC;

10. 3G internet via 3G adaptor;

11. Reserve Rearview (Frontview for option)

12. Bulit 4*45W hi-fi amplifier;

13. Accurate navigation, support TOMTOM, IGO8, ROUTE66, NAVITEL etc;

14. Multilanguages: English, Russian, Portuguese, Spanish, Turkish, Hebrew, Arabic etc. More languages can be customized.





Parameters:



Disc support

SVCD/DVCD/DVD/VCD/CD/CD-R/CD-RW/JPEG/WMA/MP3/MP4/DIVX/MP4/MP5



General
Power voltage	DC 9V-16V
Overload	4Ω
Max power output	45W x 4
Tone control	7db
	Bass 20Hz
	Treble 20KHz
Output port	Audio: 4 independent output channels
	Video: 1 Composite video output  channels
Input port	Audio: 2 independent input channels
	Video: 3 composite video input channels
Video Features	Video output level: 1.0 VP-P(75Ω overload)
	Video features: 20Hz-20KHz(±1dB)
Temperature	-10°C+60°C
Humidity	15-75% (no water frozen)



DVD PART
Video system	Auto/NTSC/PAL
S/N(signal to noise ratio)	75dB( 1KHz 0dB)
Resolution	60dB
Frequency response	20Hz-20KHz
Dynamic range	80dB
Distortaion	0.4%



FM PART
Frequency range	87.5-108.0MHz
Practical sensitivity	22dB
Down sensitivity	9dB
S/N(signal to noise ratio)	60dB (1KHz 0dB)
Resolution	32dB
Frequency response	40Hz -13KHz
Medium frequency	10.7MHz



AM PART
Frequency range	522-1620KHz
Down sensitivity	35dB
Practical sensitivity	28dB
S/N(signal to noise ratio)	45dB (1KHz 0dB)
Medium frequency	450MHz
Frequency response	40Hz-2.3KHz
