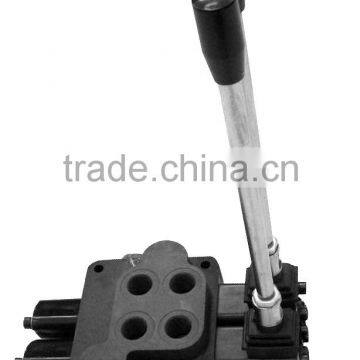

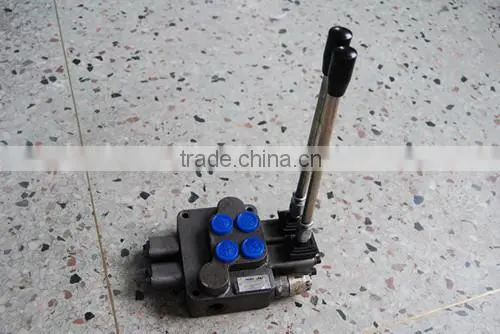

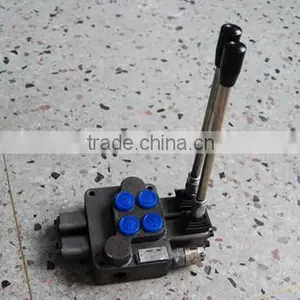

ZD-L10 Valve is designed by our company, which is medium-high pressure integrity way direction changed valve. Over-flow valve, over load valve, singte way and oil offset valve ect. may be installed per different customer's requirements. Over-flow valve may adjust the systempressure, over-load valve may control the working pressure of single oil cylinder, single valve is to prevent oil returning, direction changed valve function have A. O. Y. P. etc. It may be combinedrandom. The direction oil route. It has pressure releasing outlet to connect other hydraulic components to provide power source. The sealing is seecially designed with good sealing. The valve is widely used in the hydraulic system of forklift environment vehicle and light loading machines.
Monoblock types with 2 working sections
Flow 40 l/min with pressure 160bar, 200bar, 315bar
Spool returning type with T (spring return) and W (ball locking)
Joining port: L (screw connection)
Parallel circuit
Spool function: O, P. Y, A

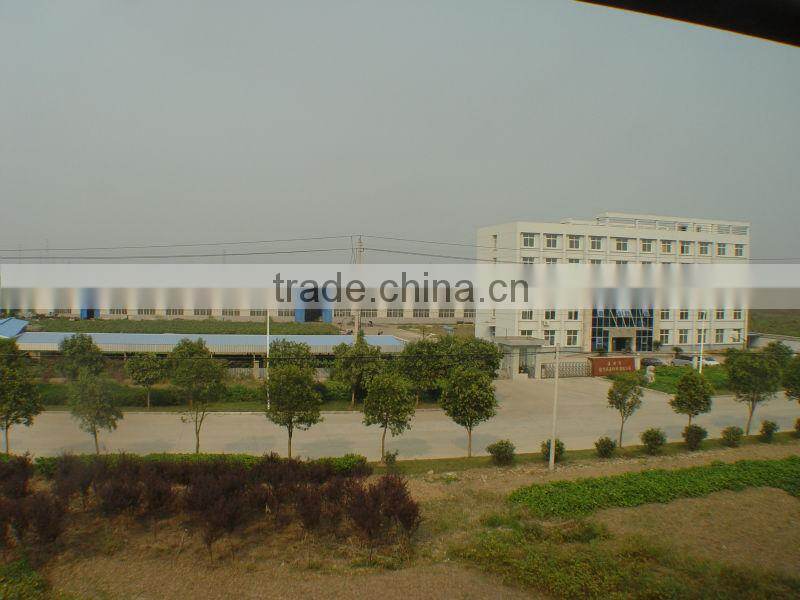

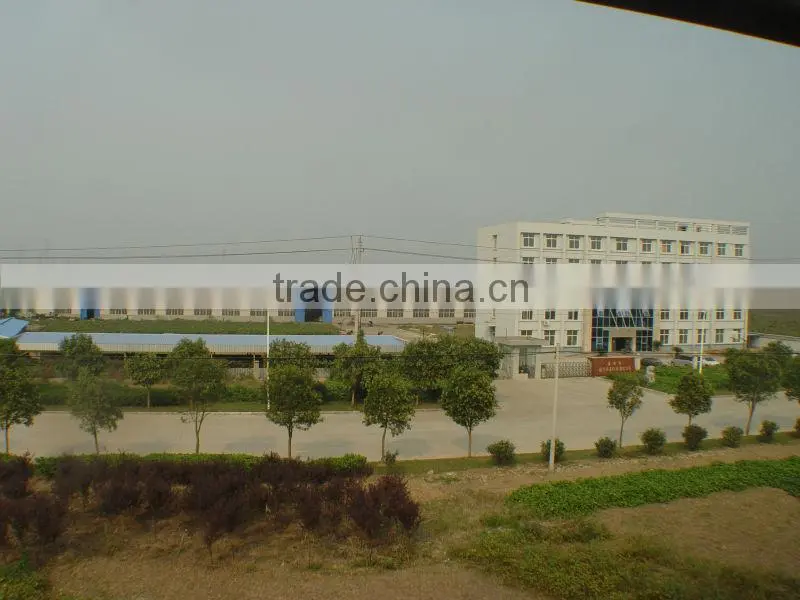

Huaian Shengjie Hydraulic Machinery Co., Ltd., established in 1990, is a professional manufacturer engaged in the research, development, production, sale and service of CBN series single and duplicate gear pumps, CBT series single and duplicate gear pumps, CBFC series single and duplicate gear pumps, BZZ hydraulic steering control units and attachments. We are located in Huaian, with convenient transportation access.
Being dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including imported machining machines, CNC production lines, high-precision grinding machines and other specialized processing equipment. In addition, we have obtained ISO9001:2008 quality management system authentication and the ISO14001 environmental management system authentication.
Sold well in all cities and provinces around China, our products are also exported to clients in such countries and regions as Japan, Australia and Southeast Asia. We also welcome OEM and ODM projects.
