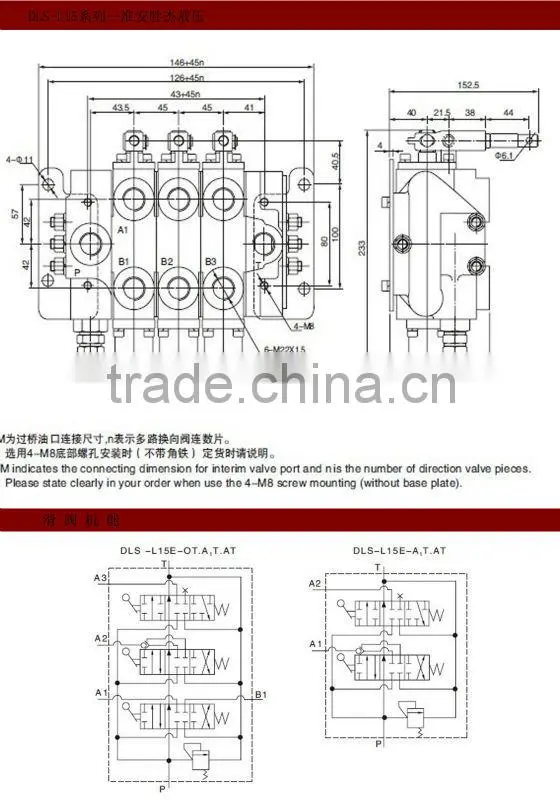

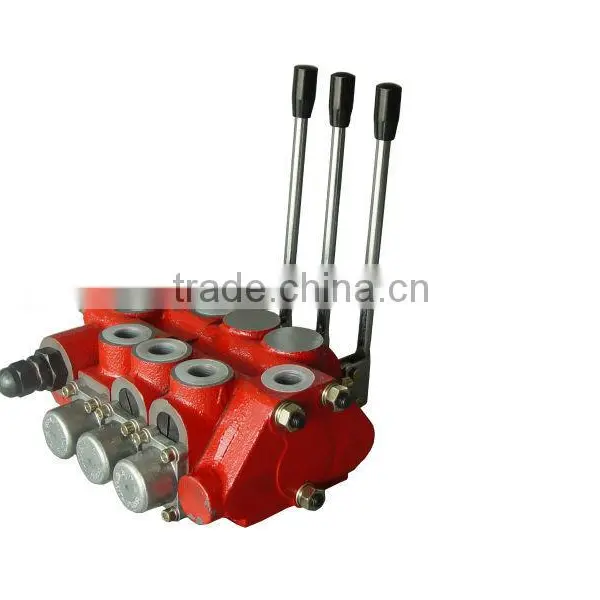

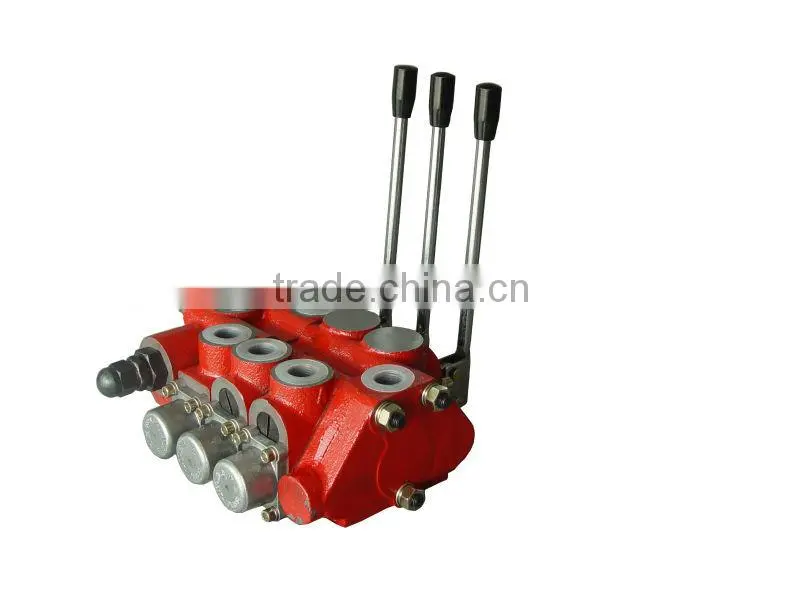

DLS-L15 Type 15mm ball hydraulic valves for corn picker
Specifications
Nominal Pressure (Mpa) 4-16
Max. Pressure (Mpa) 20
Nominal Flow (L/min) 63
Allowable Back Pressure (Mpa) <=1
Tem. Range -20-+80
Visc. Range (mm2/s) 10-400
Filtrating Accuracy (um) <=10
Applications&Features
DLS-L15 Series multiple directional control valve is a kind of combined directional manual controlled valve of parallel connection. It has such characteristics as highly integrated structure, less pressure loss, high reliability and convenient installation and maintenace to achieve integrated control over several executive fittings. This valve is specially designed for self-motive united-reaping machines. There are several spool functions such as O, A1, A for different customers. Single way hydraulic lock is installed into type Q1 to eliminate the middle leakage and prevent the over-load of the system, which highly improve the reliability of the system. The valve is widely used in different kind of machines.
OEM Service Offered Design Service Offered Buyer Label Offered
Huaian Shengjie Hydraulic Machinery Co., Ltd., established in 1990, is a professional spool directional control valve manufacturer in China. We specialized in producing directional flow control valve, directional control hydraulic valve, multiple control spool valve, high pressure multi-port valve and etc. Our products are with outstanding performance, convenient operation, and our products are widely applied to agriculture, construction, petroleum, fishery, mining and other industries. In additional, we can also offer high quality hydraulic gear pumps.
Factory Information
Please send me the following information:
1. Which kind of machines you will use on?
2. What's the flow rate of the control valve?
3. What's the working pressure you need?
4. How many spools you need ?
5. How many units you are planning to purchase?
6. What's other special requests?
