Power Units For Double-scissors Lift,hydraulic Power Unit for Material Handling

Power Units For Double-scissors Lift,hydraulic Power Unit for Material Handling thumbnail-1
Power Units For Double-scissors Lift,hydraulic Power Unit for Material Handling photo-1
US$ 10 - 1,000 MOQ: 100 Units
Key Specifications
Get Latest Price
Type:
Hydraulic Power Units
Model Number:
see below model specifications
Brand Name:
SJ-TECHNOLOGY
Contact Supplier Request Quote Chat Now
Huaian Shengjie Hydraulic Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Hydraulic Power Units
Model Number see below model specifications
Brand Name SJ-TECHNOLOGY
Place of Origin Jiangsu, China

hydraulic power unit

Equipped with the zero leakage double-check solenoid valves, this power unit fulfils the complete separation of the two independent circuits, which are respectively for the main platform and subordinate platform of the double scissors lift. By increasing the number of the solenoid valves, it is easy to get more independent circuits, which are used to control the corresponding cylinders.

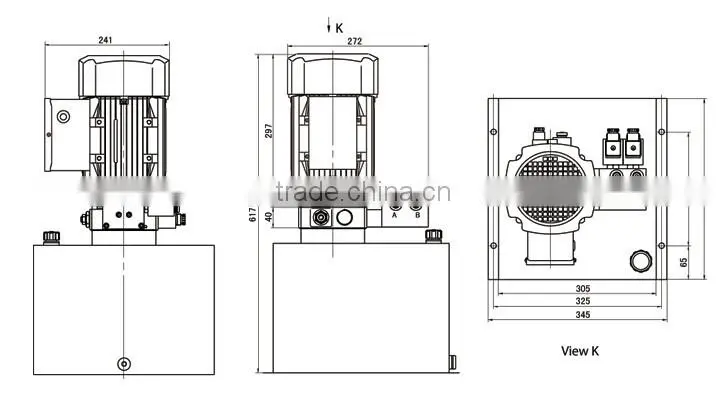

Outline dimension



 Power Units For Double-scissors Lift,hydraulic power unit for material handlingPower Units For Double-scissors Lift,hydraulic power unit for material handling





Model Specifications

Model
Motor Volt Motor power Rated Speed Displacement System pressure Tank Capacity
YBZ5-F2.7C3G30/LBCEN1 220VAC 1.5KW 1400rpm 2.7mL/r 22MPa 8L
YBZ5-F3.2E3G30/LBCEN1 3.2mL/r 20MPa 12L
YBZ5-F2.5F3H30/BCCEN1 2.2KW 2800rpm 2.5mL/r 18MPa 14L
YBZ5-E3.2G3H30/LCCEN1 3. 2 mL/r 15MPa 16L
YBZ5-D4.2G3H30/LCCEN1 4. 2 mL/r 10MPa 16L
YBZ5-F2.7H4I30/BCCEN1 380VAC 3KW 2.7mL/r 20MPa 20L
YBZ5-F3.2I4I30/LCCEN1 3.2mL/r 18MPa 22L
YBZ5-E3.7J4I30/LCCEN1 3.7mL/r 16MPa 25L


Remarks:

Please consult us for the different pump displacement, motor power or tank capacity.

60HZ motors with CSA or UL certification are available upon request.



Special notes:



1. The duty of this power unit is S3, i.e., 30 seconds on and 270 seconds off.



2. Clean all the hydraulic parts concerned before mounting the power unit.



3. Viscosity of the hydraulic oil should be 15~68 cst, which should also be clean and free of impurities, N46 hydraulic oil is recommended.



4. This power unit should be mounted vertically.



5. Check the oil level in the tank after the initial running of the power unit.



6. Oil changing is required after the initial 100 operation hours, afterwards once every 3000 hours.
