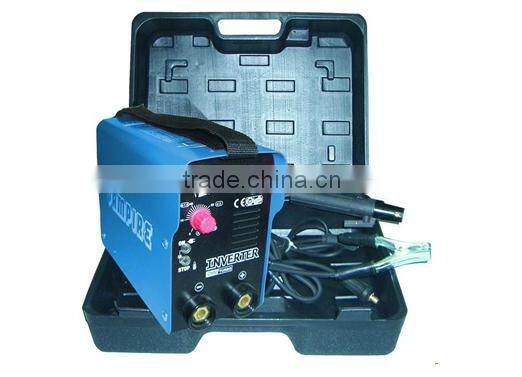

GS,EMC,CE Approval,100A MMA Welding Machine

Name: GS,EMC,CE Approval,100A MMA Welding Machine
Brand: KINGXXEL
SKU: 100105281
Availability: InStock

US$ 50 - 60 MOQ: 500 Pieces

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

KINGXXEL

Kingxxel Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name KINGXXEL

Model Number HW100

Arc Current 20-100A

Pulse Frequency 230v-50Hz

Pilot Arc Current 20A

Rated Duty Cycle over 4 mins

Motor Type DC Motor

Dimensions 22*19*26.7cm

Usage welding Iron

Voltage 230v

Certification CE,GS,EMC

Specifications

MMA welding machine
Light weight, small size
Welding current:20-80A
Electrode diameter(mm): 1.6-2.5

MMA welding machine

Mains connection 230V~50Hz
Welding current 10-100A
On-load factor X
15%		100A
60%		55A
100%		45A
Idling voltage(V) 85
Power input 3200VA at 100A
Fuse(A) 16
Weight 3.6kg
Electrode(φmm) 1.6-2.5
Carter box size 22×19× 26.7
Carton size 4/pcs 89.2×27.5× 21
Carter box G.W. / N.W. 22/20kg
20'Standard container 480/1920
40'Standard container 1060/4240
BMC size 36 × 17 ×28
Carton size 4/pcs 58 × 38 × 36
BMC G.W. / N.W. 25/23kg
20'Standard container 342/1368
40'Standard container 720/2880
Standard accessories:
Earth clamp with cable(1.7m , 10mm²)
Electrode holder with cable(1.7m, 10mm²)
Optional accessories:
Wire brush with hammer
Welding shield with welding glass
EMC Certification		OK
GS Certification		OK
