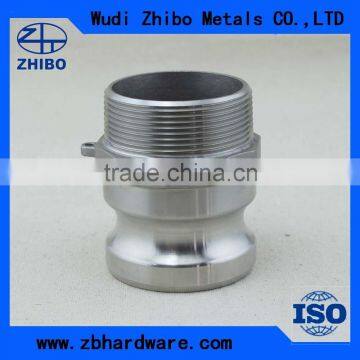

High-quality Stainless Steel Comlock Coupling Type F Coulping Rigging Cam Lock
US$ 1 - 29
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
zhibo
Model Number:
zhibo
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Ningbo Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel, Aluminum, Brass Camlock Coupling Type AUS$ 1 - 50MOQ: 20 Pieces -
Stainless Steel Quick Coupling / Camlock Coupling Male Coupler Type BUS$ 1 - 50MOQ: 20 Pieces
-
Stainless Steel Type D Quick Connector / Camlock CouplingUS$ 1 - 50MOQ: 20 Pieces
-
Stainless Steel Type E Camlock Quick Coupling With High QualityUS$ 1 - 50MOQ: 20 Pieces
-
Stainless Steel Type F Water Hose Quick Coupling Made in ChinaUS$ 1 - 50MOQ: 20 Pieces
Place of Origin
Shandong, China
Brand Name
zhibo
Model Number
zhibo

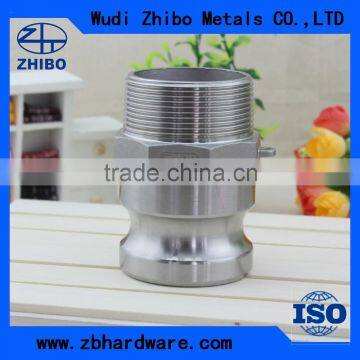

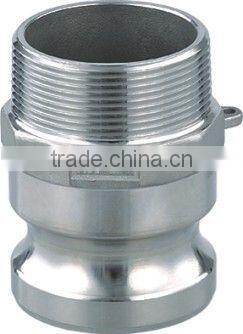

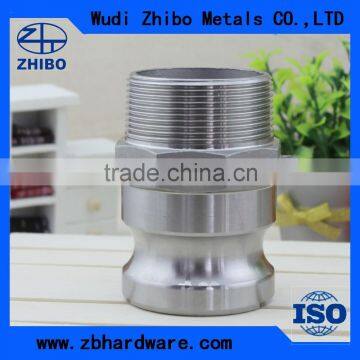

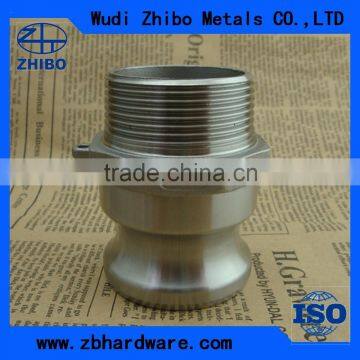

High-quality stainless steel camlock coupling type F
Technical parameters:
Product |
Quick Connector | |||
| Material | Stainless 316,304; Brass;Aluminum; PP | |||
| Place of origin | Wudi,Shandong, China | |||

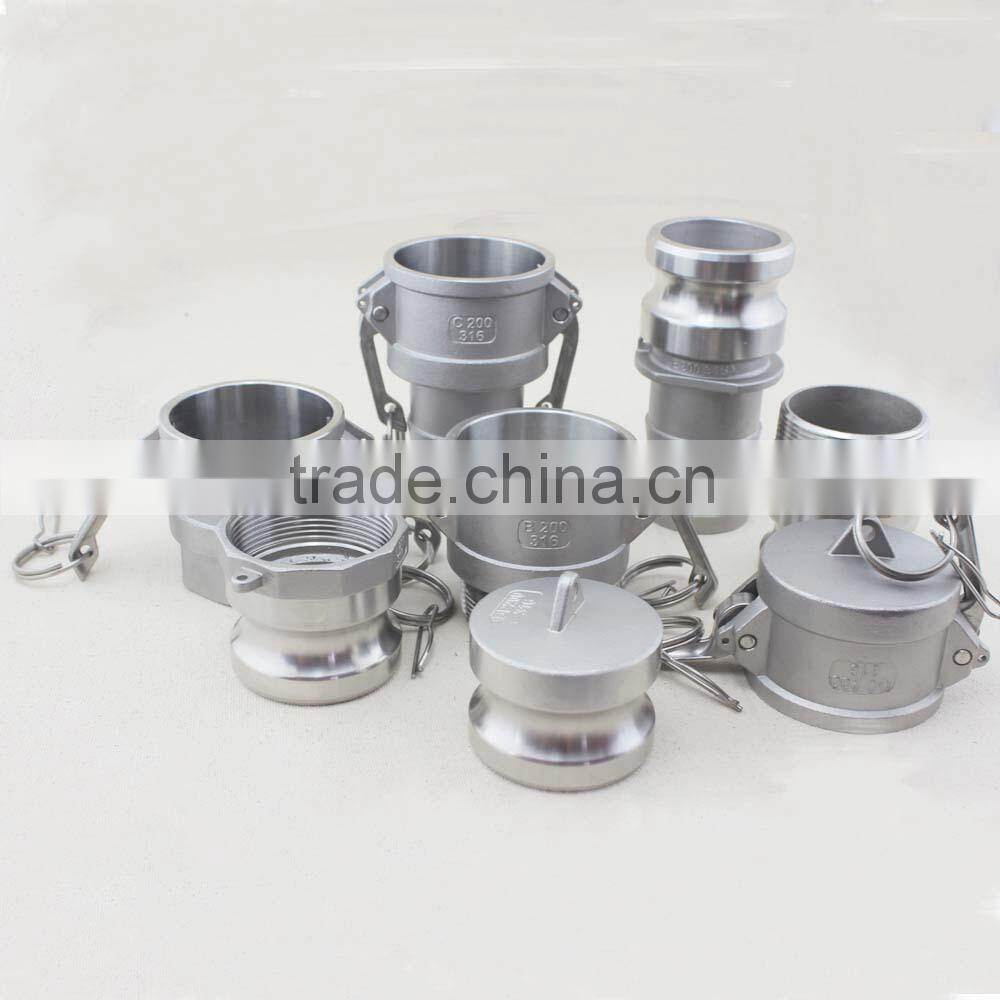

| Type | A / B / & Ccedil; / D / & Euml; / F / DC / DP / AA / DD / AD | |||
| Line | NPT / BSP / BSPT / DIN2828. | |||
| Assembly parts |
Stainless steel, brass, aluminum handle, Ring and brooch pin |
|||
| Connection | Male and female | |||
| Size | 1/2 & ldquo; -6 & rdquo;, DN15-DN150 | |||
| Gasket | Buna (NBR), Viton and Teflon, silicon oxide | |||
| Test pressure |
3/4 & ldquo; -2 & rdquo; 250PSI (17.6bar); 3 & ldquo; -4 & rdquo; 200PSI (14.8bar); Twenty one/2 & ldquo; 225PSI (15.8bar); 6 & rdquo; 150PSI (10.5bar) |
|||
| Workmanship | Casting or forging | |||
| Application |
Petroleum, textiles, minings, brewings, Ink, dye, paper mills, processing plants Chemicals, fertilizers, chemicals, |
|||
| Deal with | CNC lathe | |||
| Packing | Bags & rarr; Carton & rarr; wooden pallets | |||
& Nbsp;
F-type specification for reference:
& Nbsp;
& Nbsp;
| Dimensions (inches) | 1/2 & ldquo; | 3/4 & ldquo; | 1 & ldquo; | 1-1 / 4 & ldquo; | 1-1 / 2 & ldquo; | 2 & ldquo; | 2-1 / 2 & ldquo; | 3 & ldquo; | 4 & ldquo; | 5 & quot; | 6 & quot; |
| Size | 50 | 75 | 100 | 125 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| A | 15 | 21 | 27 | 35 | 40 | 52 | 66 | 80 | 105 | 127 | 155 |
| B | 49 | 46 | 56 | 67 | 71 | 76.5 | 84 | 90 | 93 | 114 | 119 |
| C | 26 | 34 | 39 | 47 | 56 | 65.5 | 78 | 94 | 122 | 148 | 178 |
| E | 25 | 25 | 31 | 38 | 39 | 43 | 47 | 49 | 50 | 55 | 60 |
| weight | 0.08 | 0.08 | 0.14 | 0.2 | 0.26 | 0.39 | 0.57 | 0.73 | 1.35 | 2.15 | 2.9 |

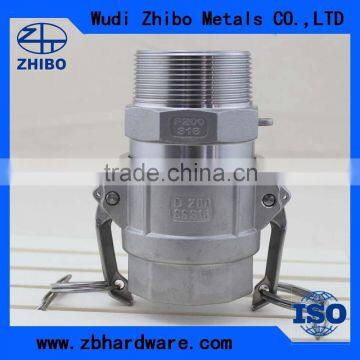

| Equipped with & ldquo; B & rdquo; or & ldquo; C & rdquo; or & ldquo; D & rdquo; or & ldquo; DC & rdquo; | |||||||||||
& Nbsp;
& Nbsp;
Advantage:
- 1. When you connect or disconnect the pipingQuick ConnectorIt can be easily operated, and save time and manpower.
- 2.Save fuel: quick connectors on a single valve, it can avoid the loss of oil andOil pressure.
- 3.Protection of the environment
Applicable industries:
& Nbsp;
Quick release pipe, aerospace industry,Metallurgical industry, ship fittings, chemical, municipal engineering.
& Nbsp;
Products

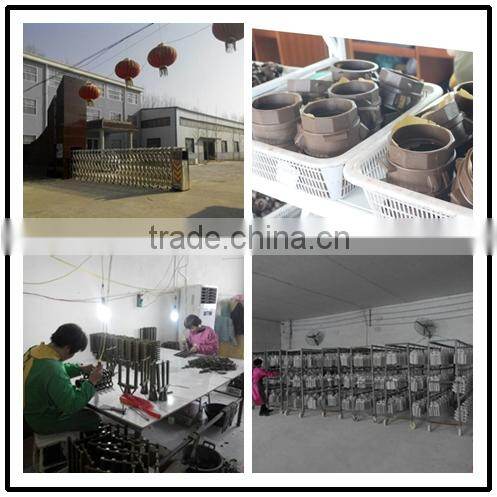

Company Information:
Binzhou zhibo Metals Co., Ltd. is a professional manufacturer with more than 8 years of production experience. Our main products are rapid quick connector, stainless steel pipe, stainless steel valves, stainless steel hardware, pipe fittings, air hose fittings, flanges, locks and accessories joint-stock enterprises. We can also produce products according to the special requirements of customers. At present, our production capacity is more than 60 tons per month. Our products are made of 316 stainless steel 304 / 304L / 316L / 201,Aluminum, brass, polyvinyl chloride, and the like.
Welcome to visit our company and make business negotiations!!!
