Foton Tractor CE

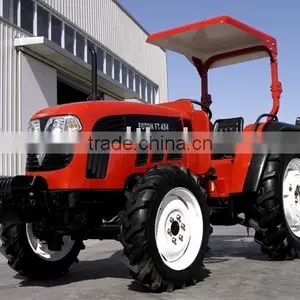

Foton Tractor CE thumbnail-1
Foton Tractor CE photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Xiaer Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Certificate CE
Place of Origin Shandong, China
Brand Name Foton
Model Number FT604

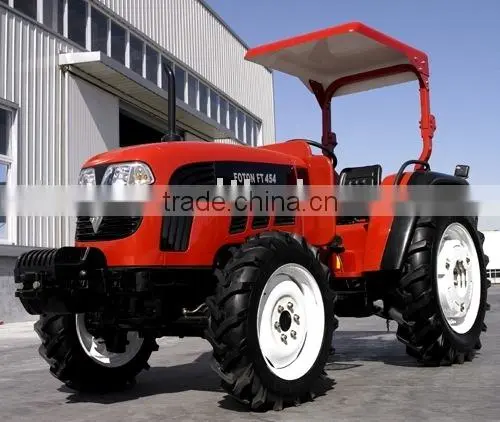

Foton tractor CE



Streamlined, luxurious and fashionable overall appearance.
humanized designing of flat floor and suspension pedal (60~75hp) ensures comfortable operation.
EPA-II standard Perkins engine
Reliable mating gears type of gearbox(60~75hp) with advanced performance.
10+10 or optional 16+4 gearboxes to meet different working requirements.
Hydraulic steering system is adopted for convenient operation.
Independent offering system of hydraulic oil for reliable operation
comfortable sealed cab with optional air-conditioner, acoustics, cell-phone charger and lighter etc; glass doors and windows expend eyeshot.

1. Adjustable wheels distance for more comfortable driving.

    Technical Specifications:

Item

Foton Tractors 60 Series - FT 604

Drive Type

4WD

Engine

Perkins Engines, 4-Cylinder Type

Rate Speed of Engine

2200rpm

Capacity of Fuel Tank

120 Liters

Engine Power at Rated Speed

44.1 KW / 60 hp

PTO Power at Rated Speed

39 KW

Torque Back Up (%)/(engine speed)

30-35 / 1650 rpm (engine speed)

Max Towing Force

18.7KN

Type of Gearshift

Mesh Gears

Creeper Gearshift F/R

16/8

Clutch

Dry, Dual-Stage Type

PTO Type

Dual Speeds, Semi-independent

PTO Rated Speed

540/1000 rpm

Hydraulic Type

Open Type

Output of Hyd. Pump

32 liters/min

Max Hyd. Working Pressure

16 (MPa)

Ploughing Depth Control

Draft and Position Mixed Adjusting

Category of 3-Point Link

II Category

Max Lift

12 KN (After the point of 610mm/24")

Hydraulic Sensor Type

Mechanical

Wheelbase

2236mm

Front Track

1450mm

Rear Track

1435-2200mm

Front Axle Ground Clearance

290mm

Turning Radius W/Brake

4000mm

Turning Radius W/O Brake

4500mm

Unballasted Operating Weight

3170kg

Front Tires

8.3-20

Rear Tires

14.9-28

Steering Type

Hydraulic Steering

Brake-Type and Control

Dry/disc/mechanical operation
..
