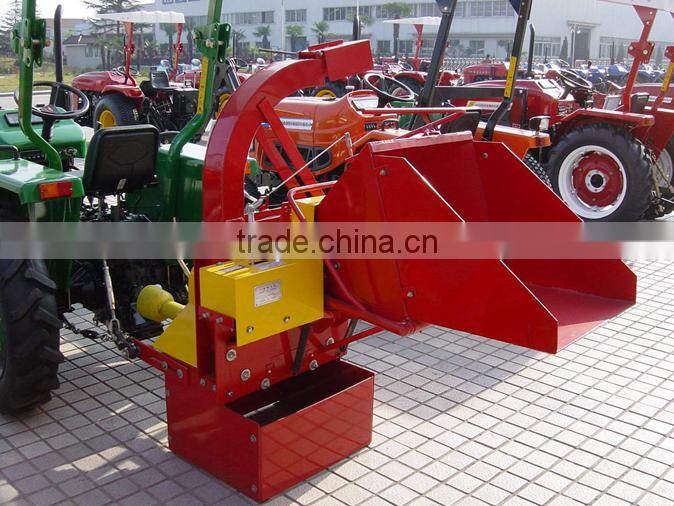

CE Certification hydraulic pto wood chipper
1. This machine with advanced design and structure, processing high quality wood chips.
CE certificate was passed in 2011.
2. It is consist of main machine, flywheel, knife blades, feeder, hydraulic pressure system, etc.
Diesel engine is main power, it can works in field where is no electric.
3. Knife roller with 2-6 knifes which can be adjusted up and down based on the thickness of wood
chips required.
Qualified chips is in size of 4mm, which comes down through the outlet
4. The machine is suitable for processing of wood log and other waste materials such as density
board, straw etc.
Model |
BX62R |
BX92R |
Drive System |
Direct drive, PTO w/ shearbolt |
Direct drive, PTO w/ shearbolt |
HP requirements for max. cap. |
60-70 |
85-110 |
HP Range |
30-100 |
65-150 |
Chipper Capacity |
6" Dia. (max. 12" slab) |
10" Dia. (up to 14" slab) |
Chipper Housing Opening |
6½" x 12" |
10½" x 14" |
Rotor Size |
30" |
36" |
Number of Rotor Knives |
4 |
4 |
Knife Type |
Hardened tool steel |
Hardened tool steel |
Rotor Weight |
180 lbs. |
280 lbs. |
Feeding System Feed |
Self or Hydraulic Feed |
Hydraulic Feed |
Mounting System |
3 Point Hitch |
3 Point Hitch |
Dimensions (Hopper Folded) |
50"L x 52"W x 74"H |
54"L x 52"W x 88"H |
Hopper Opening |
25" x 25" |
25" x 25" (635X635mm) |
Discharge Hood Rotation |
360° |
360° |
Discharge Hood Height |
74" |
84" |
Rated RPM |
540-1000 |
540-1000 |
Weight |
BX62R-1070lbs (485KG) |
1375 lbs. (620KG) |
Welcome to contact us !
