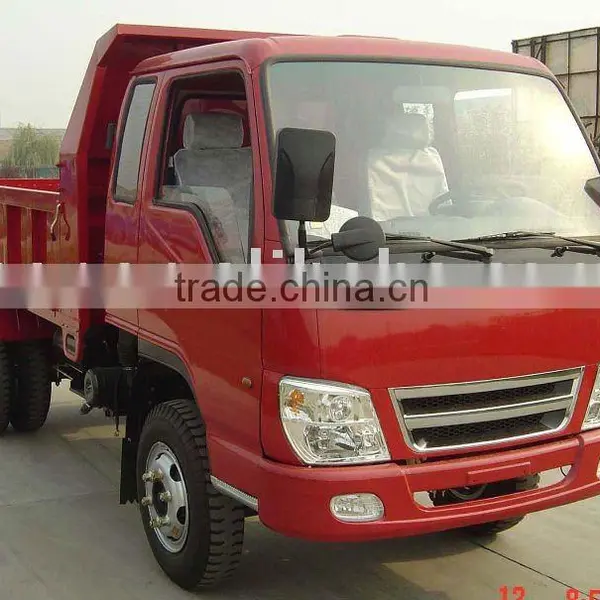

4*4 Dump Truck

Name: 4*4 Dump Truck
Brand: HETO
SKU: 100048889
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Drive Wheel:

4x4

Capacity (Load):

Other, 1-10T

Horsepower:

Other, 70.6kw

Weifang Xiaer Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Drive Wheel 4x4

Capacity (Load) Other, 1-10T

Horsepower Other, 70.6kw

Condition Other, New, New

Fuel Type Diesel

Place of Origin Shandong, China

Brand Name HETO

Model Number HT3040

Specifications

4*4 Dump Truck
1.Four-wheel drive dumper

4*4 Dump Truck

Four-wheel drive truck

MODEL:HT3040

Overall specification	overall length mm		5320	Engine	engine type	4102BZL
	overall width mm		2010		manufacturer	Yunnei
	overall height mm		2545		engine position	Frong-mounted
					engine model	Four-cylinder, in line, water cooling ,
	wheel base mm		3000		Rated power (kw/rpm)	70.6/3400
	front/rear overhang mm		1110/1205		Max.torque (N.m/rpm)	245/3200
	Front/rear Tread		1545/1515		displacement (ml)	3,856
	approaching and departure angle		25/30		bore and stroke mm	102×105
	Curb weight (kg)		2660		fuel type	Diesel
	rated payload(kg)		3000		emission standard
	Max. speed km/h		110
Item		standard deploy					option
	chassis type	HT3020
	Method of Driving	4*4
	transmission	5+1 speed LG530AF3
	front axle	Diving,steering, LS2060SY
	rear axle	Pressed axle housing, single reduction: Main ratio of geardowm 6.167, Dongfeng,
	suspension	leaf spring, front 29/ rear2(9+6)
	steering	Integral power steering 3401MDY-010
	braking	dual-circuit hydraulic braking /drum brake
	tyre	9.00-16
	battery/alternator	1*105A 24V
Main body assembly	body structure	Rivet joint
	interior trimming	Common interior trimming
	door	Two doors
	window and windscreen	Side window is toughened glass, windscreen is laminated glass
	rearview system	manual rearview mirror, inner view mirror
	Lighting	integral front/rear headlight
	wiper	wiper with washing function
	seat	common seat (no cloth cover),
	paint	domestic high grade paint
	others	skylights, Tilting cabin, Cargo box size:33651870500+200,Radio,white,RHD,6-wheel,without extra cabin..					..
