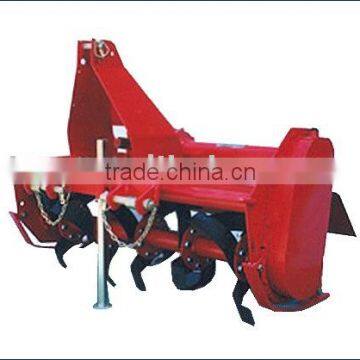

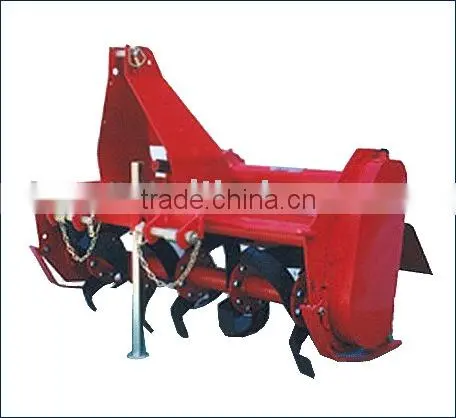

Rotary Tiller

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Farm Cultivator

Place of Origin:

Shandong, China

Weifang Xiaer Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Farm Cultivator

Place of Origin Shandong, China

Specifications

rotary tiller
1. Series rotary cultivators
2.CE certificate.

1.Rotary Cultivator->Light Series
description:Main Technical Specifications

Model		TL-95	TL-105	TL-115	TL-125
Tractor	Power	18HP	18-20HP	20-22HP	20-28HP
	Type of Linkage	Three-Point Hitch Linkage
	Speed of PTO (r/min)	540
Tillage Width (cm)		95	105	115	125
Tillage Depth (cm)		15	15	15	15
Speed of Cultivator shaft (r/min)		200	200	200	200
Number of Blade (piece)		16	20	24	28
Remarks:TL85 and TL135 are also available


2. Rotary Cultivator->Heavy Series.
description:Main Technical Specifications

MODEL	TH-90	TH-100	TH-105	TH-125
DIMENSIONS (L × W × H)	1100 × 800 × 700mm	1200 × 800 × 700mm	1250 × 800 × 700mm	1450 × 800 × 700mm
STRUCTURE WEIGHHT	250kg	260kg	265kg	285kg
TILLING WIDTH	895mm	995mm	1045mm	1245mm
TILLING DEPTH	120mm	120mm	120mm	120mm
WORKING EFFICIENCY	1500-2500m ² /h	1700-2600 m ² /h	1800-2600 m ² /h	2000-2900 m ² /h
PTO TURNNING SPEED	540r/min	540r/min	540r/min	540r/min
PTO SPLINE	6 × 8 × 700mm	6 × 8 × 700mm	6 × 8 × 700mm	6 × 8 × 700mm
POWER REQUIREMENT	16-20hp	18-22hp	20-28hp	25-30hp


MODEL	TL-135	TH-150	TH-180
DIMENSIONS (L × W × H)	1550 × 800 × 700mm	1550 × 800 × 700mm	1550 × 800 × 700mm
STRUCTURE WEIGHHT	300kg	320kg	350kg
TILLING WIDTH	1345mm	1495mm	1795mm
TILLING DEPTH	120mm	120mm	120mm
WORKING EFFICIENCY	2000-3000m ² /h	2200-3000 m ² /h	2200-3200 m ² /h
PTO TURNNING SPEED	540r/min	540r/min	540r/min
PTO SPLINE	6 × 8 × 700mm	6 × 8 × 700mm	6 × 8 × 700mm
POWER REQUIREMENT	25-30hp	30-50hp ..	40-75hp
