Made in China Factory Front End Loader

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Condition:

New

Weifang Xiaer Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Condition New

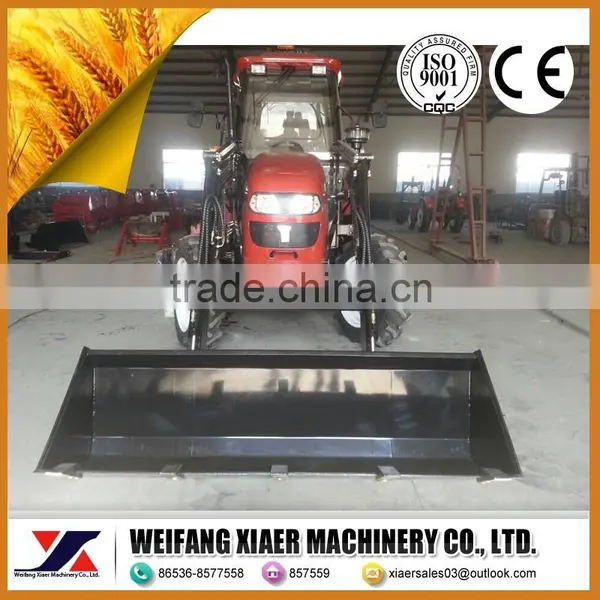

Made in China factory front End Loader

WE ARE FOTON'S SOLE SUPPLER OF FRONT LOADER AND BACKHOE

Product Description

FLD20C Series Front Loader to suit 204&254&284

Technical Data		FLD20C
Max. Lift Height Measured at Pivot Pin (mm)		2100
Max. Lift height Under Level Bucket (mm)		1700
Max. Dump reach (mm)		600
Dump angle (°)		45
Reach with Bucket on Ground (mm)		1560
Rollback angle on ground (°)		26
Max. Digging depth (mm)		100
Rated load (kg)		260
Bucket Capacity (m3)		0.2
Pallet Fork Lengthmm		800
Pallet Fork Widthmm		800
Pallet Fork Loadkg		260
Wood Grapple Widthmm		800
Wood Diameter/Weightmm/kg		600/260
	A. Max. Lift Height Measured at Pivot Pin (mm) C. Max. Lift height Under Level Bucket (mm) D. Max. Dump reach (mm) E. Dump angle (°) F. Reach with Bucket on Ground (mm) G. Rollback angle on ground (°) H. Max. Digging depth (mm)

**************************************************************************************************************

FLD40D Series Front Loader to suit 404&454

Technical Data	FLD40D
Max. Lift Height Measured at Pivot Pin (mm)	2400
Max. Lift height Under Level Bucket (mm)	2000
Max. Dump reach (mm)	800
Dump angle (°)	42
Reach with Bucket on Ground (mm)	1830
Rollback angle on ground (°)	26
Max. Digging depth (mm)	100
Rated load (kg)	360
Bucket Capacity (m3)	0.3
Pallet Fork Lengthmm	1030
Pallet Fork Widthmm	960
Pallet Fork Loadkg	360
Wood Grapple Widthmm	960
Wood Diameter/Weightmm/kg	800/360

**********************************************************************************************************

FLD80D Series Front Loader to suit 754&804&824

Technical Data	FLD80D
Max. Lift Height Measured at Pivot Pin (mm)	3020
Max. Lift height Under Level Bucket (mm)	2500
Max. Dump reach (mm)	1020
Dump angle (°)	42
Reach with Bucket on Ground (mm)	2200
Rollback angle on ground (°)	28
Max. Digging depth (mm)	130
Rated load (kg)	800
Bucket Capacity (m3)	0.6
Pallet Fork Lengthmm	1240
Pallet Fork Widthmm	1200
Pallet Fork Loadkg	800
Wood Grapple Widthmm	1200
Wood Diameter/Weightmm/kg	1200/800
