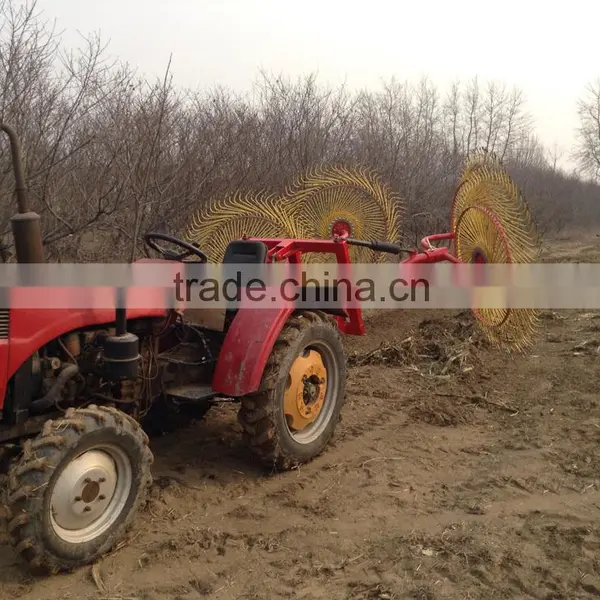

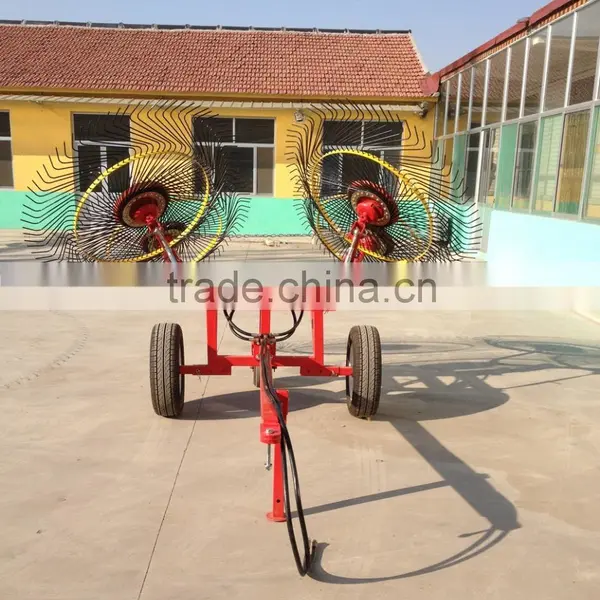

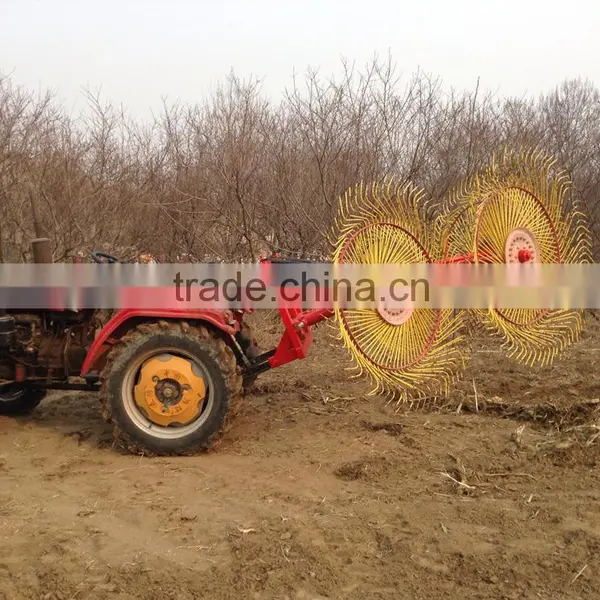

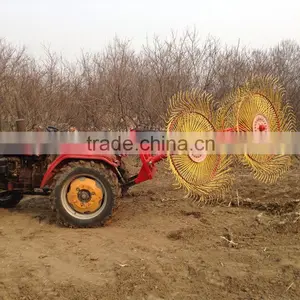

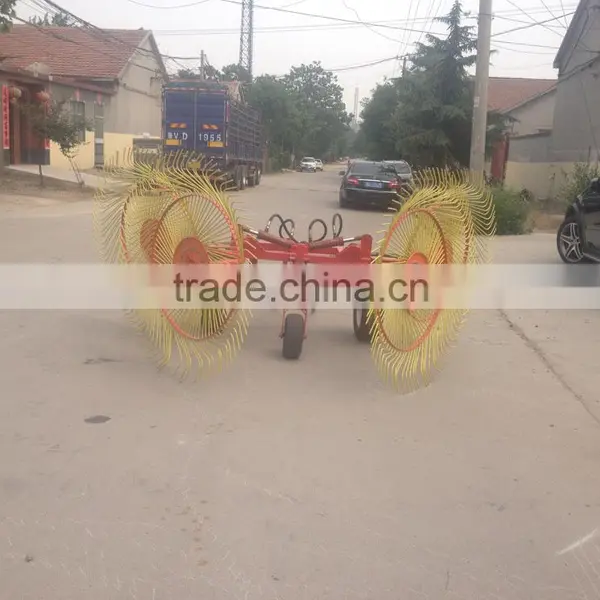

1. Product introduction of wheel rake
9LZ series of wheel hay rake is mounted on the 4 wheel tractor, the material of tine is 65Mn spring
steel to keep durable. this machine has simple structure, convenient operation and reliable use,
less failure and high efficiency. This rotary rake could be used together with our lawn mower.
2.Product application of wheel rake
9LZ series hay rake can rake pasture, straw and residual field film in high performance.
This machinery adopts double-sided structure design, the transportation and folding
is very convenient and simple in operation, so it’s very suitable for working in small
meadow.
3.Product after service of wheel rake
The solid suspension frame make the hay rake can matched with
many horse power of tractor. In production, the material and technology of all kinds
of sizes are completely the same, which can make easy for the hay rake’s further
upgrade and save your cost.
4.Product principle of wheel rake
9LZ series hay rake suitable for articulated on the linkage of wheel tractor, working parts to take tine
refers to the plate, the machine by referring to disc in order to the latter refers to the plate, until forming loose ventilation article grass.Changing the width of the article refers to the angle of plate can adjustthe grass.
Long tine for spring steel teeth, comb grass effect is good, copying performance is strong, tine in radial configuration is formed on the wheel hub, can eliminate wind effects, easy to dust by.With tension spring to control the pressure refers to the plate on the ground, can according to crops and ground conditions, through the tensile adjustment plate adjustment ground pressure.May transport when tries to offer to the rear of the tractor.
5.Feature of wheel rake
1)9LZ series hay rake is mounted with 25-110HP tractors and the machine
2)The nos of tine plates 4-8 to meet different condition of farm field.
3)The finger disc type hay rake for tractor adopts hydraulic turning, the spring steel tine and
other components. During the time of work , the hydraulic turning mechanism can make the
tine turn wholly turning.
6.Specification of wheel rake
Model |
9LZ-3.0 |
9LZ-4.0 |
9LZ-4.8 |
Working width (mm) |
3.0 |
4.0 |
4.8 |
Matched tractor (hp) |
25-40 |
40-60 |
60-110 |
Capacity (hm/h ) |
1.0-1.5 |
1.5-3.5 |
3-5 |
Wheels No. |
4 |
6 |
8 |
Wheel diameter (mm) |
1460 |
1460 |
1460 |
Raking grass width (mm) |
900-1200 |
1000-1500 |
1000-1500 |
Weight (kg) |
150 |
295 |
350 |
Linkage |
3 point hitch linkage |
3 point hitch linkage |
3 point hitch linkage |
