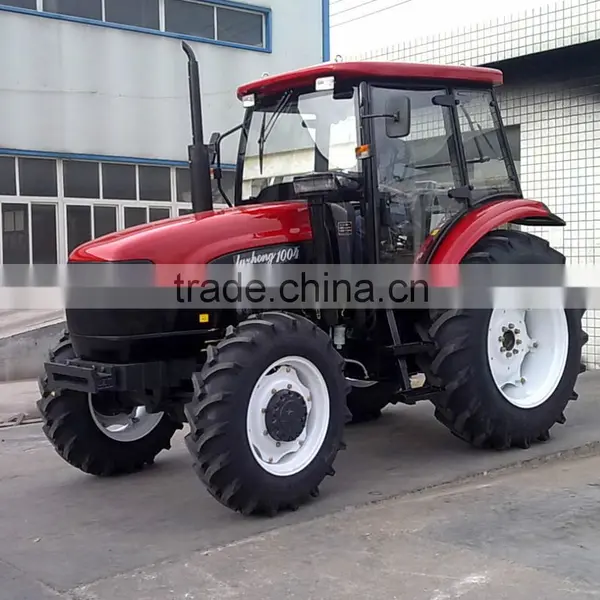

2016 Made in China Mini Four Wheel Farm Tractor Quality Choice

2016 Made in China Mini Four Wheel Farm Tractor Quality Choice thumbnail-1
2016 Made in China Mini Four Wheel Farm Tractor Quality Choice photo-1
US$ 4,500 - 7,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Contact Supplier Request Quote Chat Now
Weifang Xiaer Imp. & Exp. Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 4WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 29400~36800W
Certificate Other, ISO9001
Brand Name LUZHONG(LZ)
Model Number 904
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

 2015 Hot sale High Quality 40-50HP farming tractor, farm Tractor

2016 Made in China mini four wheel Farm Tractor2016 Made in China mini four wheel Farm Tractor2016 Made in China mini four wheel Farm Tractor2016 Made in China mini four wheel Farm Tractor2016 Made in China mini four wheel Farm Tractor







Product Description



Main Features:

1. Adopt Xinchai diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;

2. Double-function clutch,10 inches, high transmission capacity, reliable, comfortable manipulation;

3. Gearbox using 4 × 3(1 +1)  engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12 reverse gears, reasonable match between the gears, and have high efficiency;

4. Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000 r/min) for selection to meet the different operation requirements;

5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;

6. Adopt hydrostaticdisc-type brakes, a large braking torque, the braking effect is good;

7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;

8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;

9. New streamlined appearance, generous, modern, fashion;

10. Control levers can be mounted at side as optional, more convenient and comfortable.





Tractor Model

LT400

LT450

LT500

LT550

LT700

Drive Type

4×2

Overall Dimension  L×W×H(mm)

3910×1620×2130

3860×1635×2130

33925×1728×2170

Wheel base(mm)

1940

1950

2010

Front wheel tread(mm)

1200--1500 (Common 1300)

Rear wheel tread(mm)

1200--1500(Common 1300)

Min. ground clearance(mm)

330

330

360

360

450

Min. steering radius

Unilateral brake(m)

3.3

Not unilateral brake(m)

3.7

Min. operating weight(KG)

1840

2060

2340

Gearbox  gears number

12F+12R

Speed

Forward(Kw/h)

2.46-34.02

2.33-31.04

Reverse(Kw/h)

2.15-29.82

2.04-27.21

Engine

Model

C490BT-8

A495BT

A498BT-6A

A4K41T55-002

A4K43T70A

Rated power (Kw)

29.4

33.1

36.8

40.4

51.5

Rated speed(r/min)

2400

2400

2400

2400

2300

Tires spec.

Front tires

6.00-16

8.3-24

Rear tires

12.4-28

12.4-28

13.6-28

13.6-28

14.9-28

Steering type

Full hydraulic  front wheels steering

Max. lifting force( KN )

6.7

7.5

8.28

9.1

13.5

PTO

Type

Rear-mounted, Semi-independent type

Speed (r/min)

540/760 or 540/1000

Power(Kw)

≥25

≥28.1

≥31.3

≥34.3

≥43.8

Control type of ploughing depth

 Height control & flotation control



Max. traction force (KN)

8.9/9.4

10

10.7

11.8

11.7

Front / Rear ballast (KG)

104/220

104/300

Notice: As our products will be improved continuously , all above parameters are subject to modification without notice.
