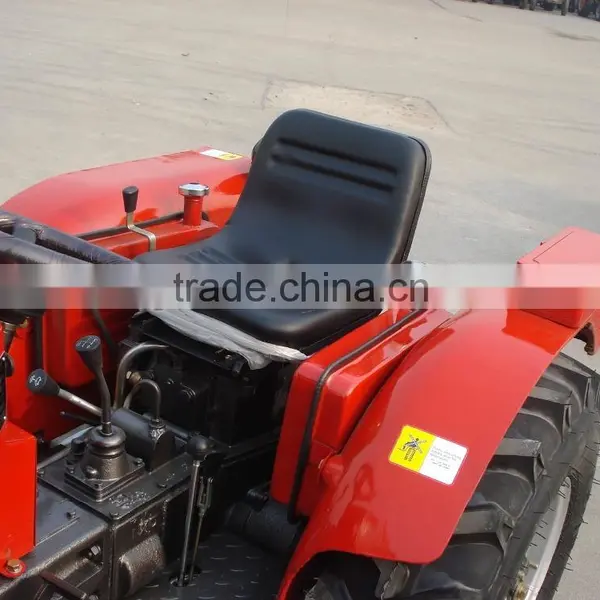

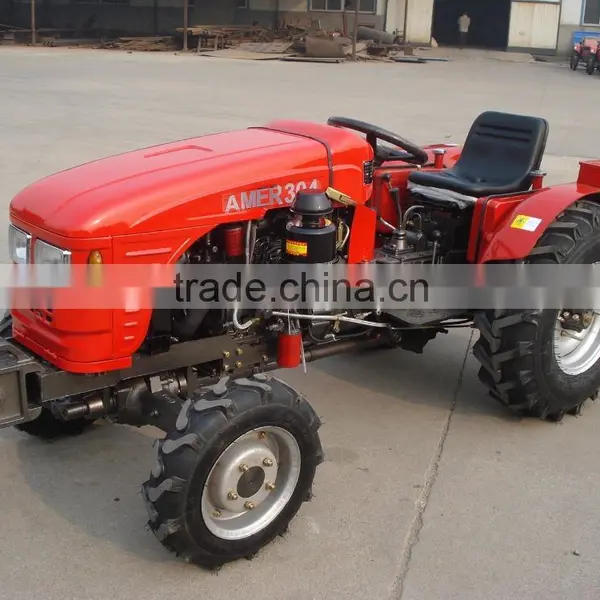

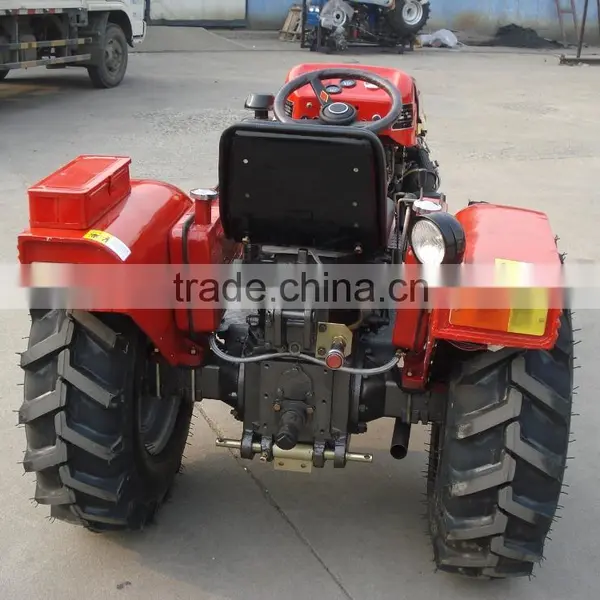

Mini Tractor Usage and Wheel Tractor Type Tractor
| Model | LZ550G | LZ554G | LZ600G | LZ604G | LZ650G | LZ654G | ||
| Type | 4x2 | 4x4 | 4x2 | 4x4 | 4x2 | 4x4 | ||
| Dimensions of Tractor(mm) | Length(With front ballast) | 3450 | ||||||
| Width | 1305 | |||||||
| Height(to the exhaust vent) | 1250 | |||||||
| Tread | Front Wheel | 1030 | ||||||
| Rear Wheel | 1050 | |||||||
| Axle Base | 1830 | |||||||
| Min.Ground Clearance | 240 | |||||||
| (kg) Structure weight | 1550 | |||||||
| Ballast weight (kg) |
Front ballast | 110 | ||||||
| Rear ballast | 100 | |||||||
| Rated traction force (N) | 9500 | 11800 | 10300 | 12800 | 11200 | 13900 | ||
| Engine | Model | 3105/490 | 495 | 495/498 | 498/4100 | 4100 | 4105 | |
| Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | |||||||
| Rated Power(kw) | 40.4 | 40.4 | 44.1 | 44.1 | 47.8 | 47.8 | ||
| Rated speed (r/min) | 2400 | |||||||
| Fuel | Diesel | |||||||
| Tyre | Front Wheel | 450-12 (2WD); 600-12 (4WD) | ||||||
| Rear Wheel | 11.2-20 | |||||||
| Clutch | Dual-stage clutch | |||||||
| Steering | power steering | |||||||
| Transmission Type | 8+2 or (8+2)×2 with creeper shift | |||||||
| Suspension Type | 3-point links | |||||||
| Suspension Type | Type and Rev | Semi-independent Type 540/1000 | ||||||
| PTO | Spline Size | F35 Rectangle Spline with 6 teeth | ||||||
