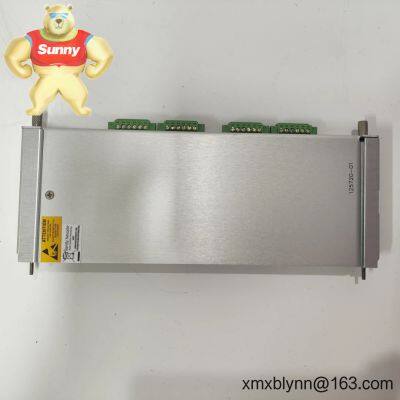

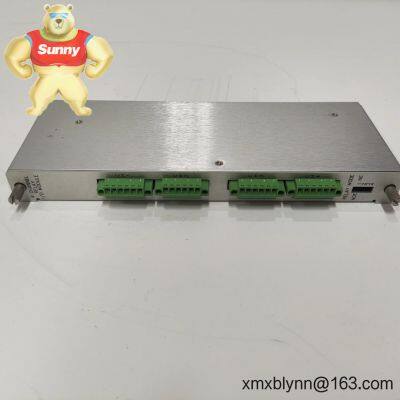

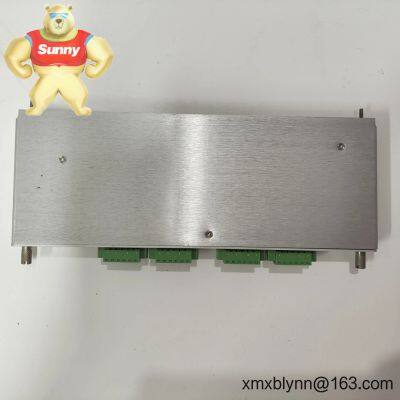

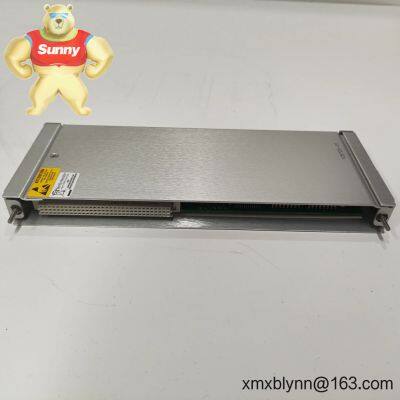

Bently Nevada 3500/70M Monitor de Velocidad de Impulso de Máquina Recíproca – Monitoreo de impacto dirigido para maquinaria de movimiento alternativo

• Garantía: 365 días

• Entrega: 1 semana si está en stock; como máximo un mes como máximo

• Pago: 50% de pago anticipado; pago completo antes de la entrega

• Opciones de envío express: FedEx, UPS, DHL

• Procesamiento IMV diseñado específicamente: Obtiene la velocidad de impulso a partir de la aceleración para resaltar los fallos de tipo impacto típicos en activos alternativos.

• Monitoreo de cuatro canales: Por lo general, admite hasta 4 entradas de acelerómetros sísmicos para cobertura multipunto en cilindros, marcos o piezas de distancia.

• Salidas con buffer: Convenientes salidas de transductores con buffer para recolectores de datos portátiles y herramientas de diagnóstico.

• Protección integrada: Dos puntos de ajuste por canal (Alerta y Peligro) que alimentan la lógica de votación y relés de la rack 3500 para esquemas de parada/alerta.

• Conectividad con System 1: Tendencia y diagnóstico disponibles a través del TDI de la rack, para que su equipo de confiabilidad pueda analizar los eventos de impacto a lo largo del tiempo.

• Integración en racks 3500: Se instala como un monitor estándar de un solo ranurado con un módulo de E/S compatible en el bus de sistema, sin cableado de alimentación especial.

You might notice that IMV shines where impacts dominate failure modes. Typical deployments include:

• Reciprocating compressors in midstream gas transmission—early warning on suction/discharge valve wear and ring/packing failures.

• Refining and petrochemical units—detecting crosshead, connecting rod, and guide shoe issues before they escalate.

• Fertilizer and ammonia plants—monitoring distance piece integrity and rod load-related impacts during transitions.

• Power and industrial gases—frame and cylinder end impact detection under varying load and speed conditions.

• Higher diagnostic sensitivity: IMV processing pulls impact events out of noisy environments, which typically cuts false alarms compared with raw acceleration.

• Reduced downtime risk: Earlier detection of valve and ring issues can prevent rod drops and secondary damage—procurement teams often justify the card on avoided outages alone.

• Seamless 3500 integration: Fully compatible with existing racks, relays, and TDI communications, so there’s no architectural change.

• Lifecycle continuity: Standard Bently Nevada form factor and accessories simplify spares strategy and technician training.

One thing I appreciate is how maintenance teams can correlate IMV peaks with operating states in System 1. A reliability lead at a gas compression station told us they caught a valve failure trend two weeks earlier than they typically would, just by trending channel IMV max with load changes.

• Panel/cabinet: Install the 3500 rack in a clean, ventilated enclosure; maintain ambient within the rack’s temperature range.

• Wiring: Use shielded, low-noise cabling for accelerometers; ground shields at the rack end only in most cases to avoid ground loops.

• Sensor placement: Mount accelerometers on cylinder heads, valve covers, or frame locations recommended by your mechanical team for best sensitivity to impacts.

• Setpoints: Start with conservative Alert/Danger thresholds; tune using baseline data under normal loads to reduce nuisance alarms.

• Maintenance: Periodically verify sensor mounting torque and cable integrity, clean I/O terminals, and review channel health in the TDI. Firmware updates are typically managed through the rack’s configuration tools.

• Safety: De-energize related circuits before wiring changes; follow site hazardous area practices when sensors are in classified zones.

• Manufacturer quality systems typically ISO 9001

• CE marking for EMC/safety where applicable

• UL/cUL compliance for relevant rack assemblies

• RoHS-compliant materials in most current production

Warranty from us is 365 days. If you need a configuration review (channel assignment, setpoint strategy, or sensor selection), we can share a Lista de comprobación rápida que reduce la puesta en marcha en un par de horas en muchos casos.
