Help CenterS (B) H15-M Series Sealed Amorphous Alloy Power Transformer
Related Products
-
S13 Series of Three-Phase Oil Immersed TransformersUS$ 500 - 1000MOQ: 1 Set -
Amorphous Alloy Iron Core Oil-Immersed Distribution TransformerUS$ 700 - 2000MOQ: 1 Set
-
Three Coherent Solid Distribution Transformers With Wound CoreUS$ 700 - 2000MOQ: 1 Set
-
Three-Phase Oil-Immersed Solid Distribution Transformer With Wound CoreUS$ 700 - 2000MOQ: 1 Set
-
High Quality Low Voltage Dfw-12 Type Cable Branch Box /SwitchgearUS$ 500 - 1000MOQ: 1 Set
Company Introduction:
Dehler Technology Co., Ltd. specializes in producing high and low voltage switchgear, box type substation, cable branch box, outdoor vacuum circuit breaker, isolation switch, grounding switch, load switch and low voltage components and other products.
Product Introduction
The transformer is completely hermetical oil-immersed type. The principle is the same as the hermetical power transformer. The basic elements of the amorphous alloy is Iron, nickel, cobalt, boron and carbon etc. It is a kind of isotropic soft magnetic material with low magnetizing power. With 0.027mm thickness and the filling coefficient is reduced to 0.75-0.8, the amorphous alloy material is very sensitive for stress. The electrical resistivity of the material is 3-6 times of silicon steel sheet and the hardness is 5 times of it.
Load loss of S(B)H15-M 30~1600/6~10 series transformer can be reduced by 15% on the basis of GB/T6451 standard. The no-load loss can be reduced by 70% on the base of GB/T6451 standard. Amorphous alloy transformer meets the standard JB/T10318-2002 Technical parameter of oil immersed type amorphous alloy transformer.

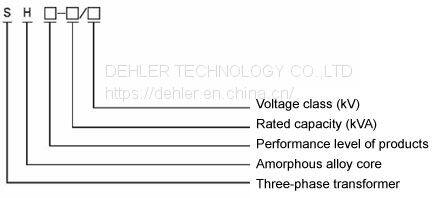

Model and Meaning
Technical Parameter of S(B)H15-M Series Hermetical Amorphous Alloy Power Transformer
| Rated capacity(kVA) | Voltage and tapping range | Connection Group Symbol | No-load Loss(W) | Load Loss (W)75ºC | No-load current (%) | Short-circuit impedance(%) | |||
| High Voltage (KV) | Tapping ranges of High Voltage | Low Voltage (KV) | |||||||
| 30 | 6 6.3 10 10.5 11 |
±5% ±2×2.5% |
0.4 | Dyn11 ( or ) Yyn0 | 130 | 630/600 | 2.3 | 4.0 | |
| 50 | 170 | 910/870 | 2.0 | ||||||
| 63 | 200 | 1090/1040 | 1.9 | ||||||
| 80 | 250 | 1310/1250 | 1.9 | ||||||
| 100 | 290 | 1580/1500 | 1.8 | ||||||
| 125 | 340 | 1890/1800 | 1.7 | ||||||
| 160 | 400 | 2310/2200 | 1.6 | ||||||
| 200 | 480 | 2730/2600 | 1.5 | ||||||
| 250 | 560 | 3200/3050 | 1.4 | ||||||
| 315 | 670 | 3830/3560 | 1.4 | ||||||
| 400 | 800 | 4520/4300 | 1.3 | ||||||
| 500 | 960 | 5410/5150 | 1.2 | ||||||
| 630 | 1200 | 6200 | 1.1 | 4.5 | |||||
| 800 | 1400 | 7500 | 1.0 | ||||||
| 1000 | 1700 | 10300 | 1.0 | ||||||
| 1250 | 1950 | 12000 | 0.9 | ||||||
| 1600 | 2400 | 14500 | 0.8 | ||||||
| 2000 | 750 | 17400 | 0.20 | 5 | |||||
| 2500 | 900 | 20200 | 0.20 | ||||||
