Help CenterUHZ 517C14 Float Ball Water Level for Liquid Gas Max 100 Centigrade 300lb From Water Meter Manufacturer in China
Related Products
-
UHZ 517C17 Corrosion Proof Magnetic Level Gauge With UPVC Fittings From Water Meter Manufacturer in ChinaNegotiableMOQ: 1 Set -
UHZ 517C12B Float Type Level Sensor for Measuing Tool High Temperature 450 Centigrade High Pressure PN6.4 400lb Side-mountNegotiableMOQ: 1 Set
-
UHZ 517C10 Fuel Tank Gauge for Fuel Level Meter Max 200 Centigrade 150lb Side MountNegotiableMOQ: 1 Set
-
UHZ 517C11 Fuel Tank Gauge for Survey Level Control High Temperature Max 450 CentigradeNegotiableMOQ: 1 Set
-
UHZ 517C12A Fuel Tank Gauge for Float Ball Water Level 450 Centigrade 300lbNegotiableMOQ: 1 Set
Specifications
1. for easily vaporized liquid measurement,2. for liquid gas applications
3. level switch and level transmitter are optional
Technique Parameter
Measure Range: |
150~8000mm (center distance) or on request. |
Nominal Pressure: |
PN2.5 MPa PN5.0 MPa |
Working Pressure: |
≤1.875MPa 3.75MPa |
Working Temperature |
-20~100°C |
Medium Density |
500~2000kg/m³ |
Chamber(bypass tube) |
Φ76×3mm |
Process Connection |
Factory Standard: DN25 PN4.0MPa HG20592-97; 150LB 300LB 1" ANSI B16.5; Optional std: 1/2"~ 2" ANSI B16.5; DN10-DN50 GB/T 9112-2000; JB/T 79.1-94 SH3406-1996 DIN 2635; DN10-DN50; DIN 2527; DN10-DN50 10A~50A JIS 20K FF RF; 1/2"~2" JPI 300LB RF |
Chamber/Flange/ Wetted Material |
304, 316, 316L, 316Ti, 321, 1.4301, 1.4435, 1.4401, 1.4571, 1.4783, 0Cr18Ni9, 1Cr18Ni9Ti, 00Cr17Ni14Mo2, 0Cr17Ni12Mo2, 0Cr18Ni2Mo2Ti |

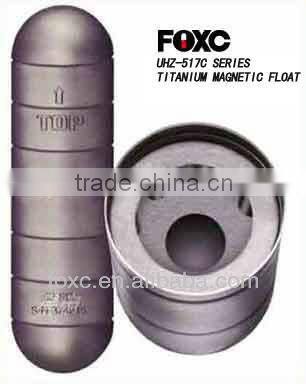

Magnetic Float |
Its size depends on liquid density Material: Titanium, 316SS or 316L SS |
Optional Items |
1. Tri-magnet level switch 2. Heating Jacket 3. Depth Vacuum heating jacket 4. Coil type heating jacket 5. Drain/Vent valves 6. Level Transmitter(4~20mA, two/ three wire,HART) 7. Magnetostrictive level transmitter |
