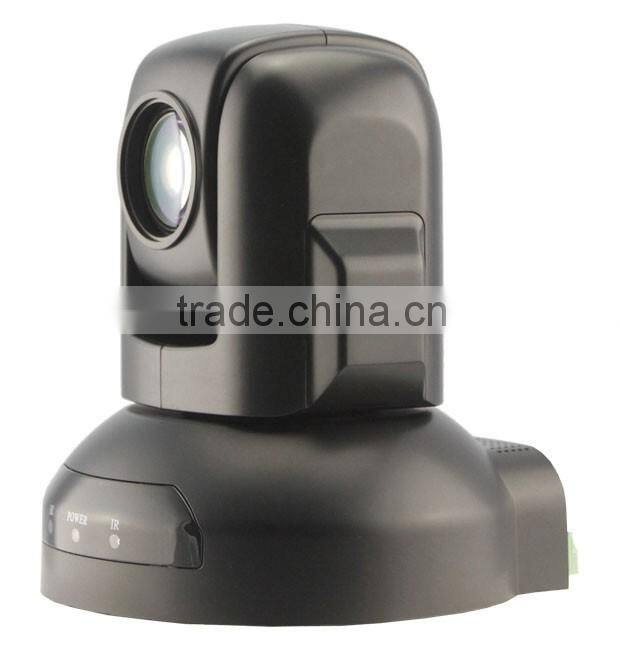

SMTSEC SVC-HD652 Low Cost High Performance 2.0 Megapixel HD Color Video Camera USB2.0 1080p Video Conference Camera
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Audio Conference System, Network Conference System, Video Conference System
Function:
Other, hdmi video conference camera
Simultaneous Interpretation:
No
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
480TVL 64 Preset 10 Optical Zoom Color Video PTZ Conference Camera(SVC-HA02-CN)NegotiableMOQ: 1 Piece -
New Products 3D Joystick Visca Keyboard Controller Conference Camera System (SK-CV03)NegotiableMOQ: 1 Piece
-
High Performance 600TVL CCTV Color Video PTZ Video Conference Camera for Video Conference System(SVC-HA01)NegotiableMOQ: 1
-
30 Optical Zoom 2.14 Megapixel Full HD Color Video PTZ Pan Tilt Zoom Camera USB 3.0 Video Conference Camera System(SVC-HDD17)NegotiableMOQ: 1 Piece
-
650tvl 360 Degree Color Pan Tilt Zoom PTZ Video Conference Camera System(SVC-HA03-CN6-USB)NegotiableMOQ: 1 Piece
Type
Audio Conference System, Network Conference System, Video Conference System
Function
Other, hdmi video conference camera
Simultaneous Interpretation
No
Place of Origin
Guangdong, China
Brand Name
SMTSEC
Model Number
SVC-HD652
SMTSEC SVC-HD652 Low cost high performance 2.0 Megapixel HD Color Video camera USB2.0 1080p video conference camera
Product Description
| Low Cost High Performance 2.0 Megapixel HD Color Video camera achieved 1080p@30 or 720p@30 high quality images. Equipped with 4mm fixed lens with 72.5 degree wide Horizontal View angle, USB 2.0 ideally for Web conferencing system, easily connecting to laptop for whom on business trip. | ||
| Features: | ||
| Smart design High Definition PTZ camera | ||
| Fast and smooth video handling | ||
| Low cost design for video conferencing | ||
| Work & Standby LED indicator | ||
| Speed Match | ||
| Auto/Manual IRIS/brightness/WB | ||
| RS-232C/VISCA Protocol | ||
| Boundary scanning | ||
| Image auto-flip | ||
| OSD Menu on screen | ||
| USB 2.0 simple connection for PTZ Control & video display | ||
| Performance: | ||
| 1920x1080pixels progressive @30fps | ||
| 4 mm fixed lens | ||
| HOV 72.5 degree | ||
| 1/2.7" HD color CMOS | ||
| Pan ±180degree continuously | ||
| Tilt + 90 degree, - 45 degree | ||
| 64 preset positions | ||
| 4 cruise lines | ||
| DC 12V, 1.2A | ||
| Dimension: | ||
| L 124mm x W 120mm x H145mm | ||
| N. Weight: 1.3kgs | ||
| G. Weight: 1.5kgs | ||
| Installation: | ||
| Desktop | ||
| Ceiling/wall mount | ||
| Standard Tripod accessory | ||
| 5 meters USB Cable | ||
| Model | SVC-HD652 | |
| Image | Sensor | 1/2.7″ HD color CMOS |
| SenSor | Signal System | PAL/NTSC |
| Minimum Scene lllumination | 0.5Lux at F2.0 | |
| White Balance | AUTO/Manual | |
| Gain Control | AUTO | |
| Back-light compensation | ON/OFF | |
| S/N Ratio | >50db | |
| Lens | Lens | 4 mm |
| Iris | AUTO/Manual | |
| Zoom | Fixed lens | |
| Hov | 72.5 degree | |
| Video Output | USB Interface | |
| Video format | 1080p@30, 720p@30 | |
| Control Decoder | EIA/RS-485, USB | |
| Communication | EIA/RS-232(Bidirectional) | |
| PTZ Control Protocol | VISCA, PELCO-D | |
| Baud Rate | 9600/38400bps | |
| Patrol tours | 4 | |
| Preset | 64 | |
| Save status after Power off | Support | |
| Speed Matching Function | Support | |
| Image Auto Flip | Support | |
| Pan Speed | 0-280 degrees/s | |
| Tilt Speed | 0-100 degrees/s | |
| Pan Rotation Angle | 360 degrees | |
| Tilt Rotation Angle | + 90 degrees, - 45 degree | |
| Auto Pan Scan | Support | |
| Boundary Scan | 0-359 degree(Programmable) | |
| Remoter Control | IR Wireless remote control P/T/Z | |
| Power | DC12V ±10% 1.2A | |
| Operation Temperature | 0℃~50℃ | |
| Environmental humidity | 0-95%RH(non-condensaion) | |
| Length X width X high | 124x120x145mm/220x175x220mm(NET/PACKAGE) | |
| Weight | 640g/1100g(NET/PACKAGE) | |
| SMTSEC Video conference camera FAQ | ||
| Symptom | Cause | Remedy |
| The power of the camera is not turned on. | The supplied AC power adaptor is not connected to the DC IN 12V jack firmly, or the AC power cord is not inserted firmly into the AC power adaptor or the AC outlet. | Insert the power cord firmly as far as it will go. |
| Not Turn On the Power switch as “ON”. | Turn On the Power switch as “ON”. | |
| Insufficient frame rate detected | Cannot recognize USB 3.0 connection, but the USB 2.0 speed. | Make sure you connected USB 3.0 Cable, USB 3.0 connect, and firmly connect to USB 3.0 interface. |
| Pan,tilt or zoom cannot be operated. | Any menu is displayed on the monitor screen. | Press the “Dome OSD” OR “Lens OSD” on the Camera remote control Unit to turn off the menu from the monitor screen. |
| The panning or tilting range is limited | Pan/Tilt movement range is ± 45 degree. | |
| The Remote Commander does not work. | The Camera Select button you pressed on the Remote Commander does not match the number set with the IR SELECT switch on the camera. | Press the Camera Select button corresponding to the IR SELECT SWITCH setting on the Camera. |
| Used out of battery | Change new battery (AA x 2) | |
| The VISCA control is not available with a computer connected to the camera. | The computer is not correctly connected to the camera. | Make sure the connection between the computer and camera is made correctly. |
| Check that the VISCA control setting (RS-232C or RS-422) and the baud rate setting (9600 bps or 38,400 bps) are properly made with the BOTTOM switch on the bottom of camera and the COM Port which configured in your computer. | ||
| The camera cannot be operated at all. | Pull out the plug of the power cord from the AC outlet, then reinsert it into the AC outlet after a while. | |
