Product Description

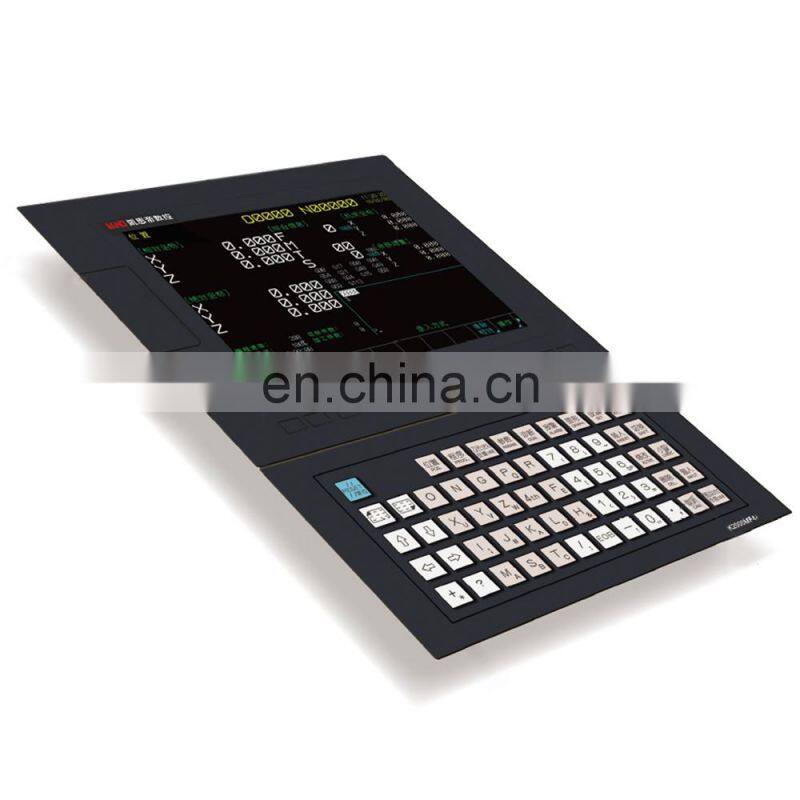

K2000MFi
K2000mfi is a CNC system for KND's new F series high-end machining center. It adopts a new hardware platform and is equipped with the second generation of high-speed, high-precision and high-precision method. The system has faster response, better machining effect and higher efficiency. According to the user application scenario, the operation menu of "user-centered" is redesigned to optimize the user experience and improve the operation efficiency. K2000mf I has two horizontal and vertical installation structures and 10.4 display screen, which can meet the adaptation needs of different models.
Applicable models: Machining Center, engraving and milling machine, drilling and tapping center, high gloss machine, drilling and milling center, etc.
Machine tool operation panel (standard mold key panel)
Product features
●New hardware platform, equipped with high-performance CPU, faster system speed. |
●Integrated flat cast aluminum panel, oil and water proof, 10.4-inch TFT color LCD. |
●Focusing on user experience, the new design of soft menu interaction logic makes the operation more convenient. |
●Upgrade file management and program editing functions to quickly preview files, verify tracks and improve operation efficiency. |
●The high-speed and high actuarial method is upgraded to the third generation, taking into account the machining accuracy and efficiency, and the surface machining effect is better. |
●Built in machining accuracy grade, which can be called according to the requirements of processed products. |
●With advanced diagnosis, it provides servo online optimization, vibration detection and other functions to improve the machining performance of the machine tool. |
●It has advanced control functions such as tilt axis, imaginary axis and synchronous axis. |
●It provides breakpoint and power-off management functions, which can quickly restore the interrupted processing program. |
●Pexc parallel controller function is added, which can control multi-channel special machine, truss manipulator, etc. |
●Provide open PLC function and standard PLC program, with complete functions, stability and reliability. |
●Kapi interface is provided as standard to open the operation data of machine tool and help intelligent manufacturing. |
●Suitable for processing scenarios: 3C, highlight, mold and other high-speed and high-precision products. |
●Applicable machine tools: Machining Center, drilling and tapping center, high gloss machine, carving and milling machine, etc. |
Specification
project | Specifications |
Maximum number of control axes | 8 |
PLC axis | 8 |
Spindle control | Bus spindle, analog spindle (2-way, expandable) |
Other axis control functions | Simple PLC axis, pexc parallel controller |
Program storage | 50M |
High speed and high precision | Third generation high-speed actuarial method |
Small segment preprocessing | 20000 paragraphs |
Processing cycle | Spot drilling, tapping, boring, high-speed deep hole, etc |
Tool setting operation | Centering and knife setting, three-point centering, etc |
Graphic simulation | 2D and 3D graphics functions |
Online diagnosis | Graphic diagnosis, bus diagnosis, etc |
Historical records | Alarm history, important operation history, exportable |
Parameter operation | Parameter collection, user-defined classification, USB flash disk backup and recovery |
tool | Tool offset, tool compensation, tool life management, etc |
PLC program | Built in PLC V30 (STD) |
Time limited protection | Time limited protection function based on Network |
Authority function | Level 7 operation authority |
project | Specifications |

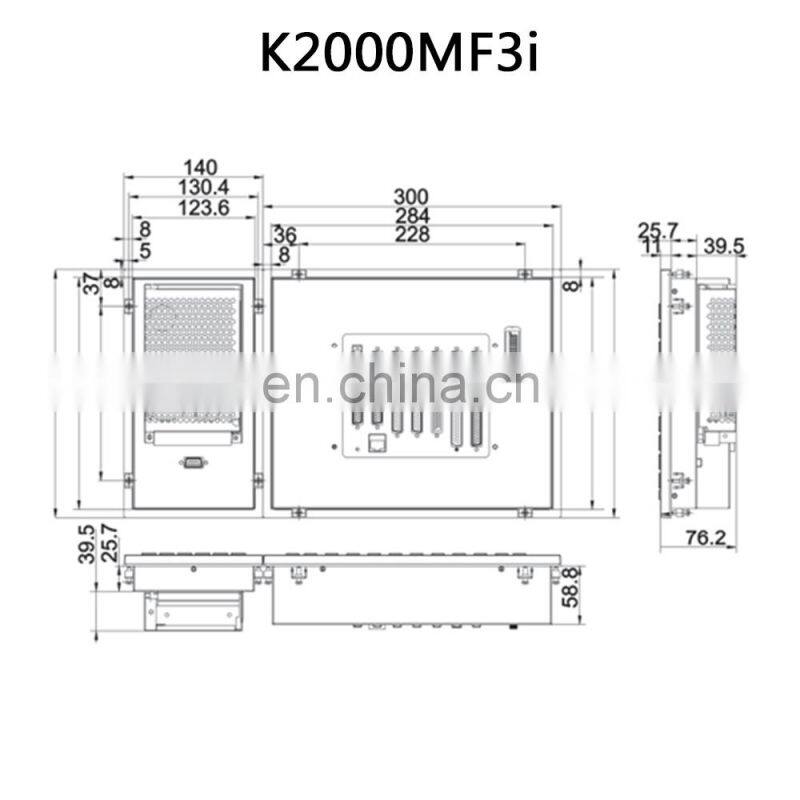

model | K2000MF3i、K2000MF4i |
display | 10.4 inches |
panel | Integrated cast aluminum panel |
Servo bus | KSSB |
USB interface | Front 2 |
Local IO | 40 point input, 32 point output |
handwheel | 2-way |
Analog output | 2-way, 0-10V |
IO module | Standard SD6 (DL, DO quantity) |
External interface | Ethernet, RS232, RS485 |
Feed servo configuration | SD310(20/30/50/75/100) |
Spindle servo configuration | ZD210(2.2-45kw) |
Feed motor configuration | KA series 5-Pair motor, linear motor, torque motor, etc |
Spindle motor configuration | ZJY asynchronous servo motor, motorized spindle, etc |
Machine operation panel | 3313C (F3 example) |
Installation mode | Buckle back mount |
Perfect supporting scheme
In order to pursue the ultimate machining effect, there must be corresponding configuration scheme. K2000mfi uses kssb servo bus and is configured with sd310 feed servo and zd210 spindle servo, which can meet the high-speed and high-precision machining occasions such as die, drilling and tapping. Diversified machine tool operation panel configuration can improve the recognition and operation convenience of the machine tool, and help users gradually upgrade from "function" to a new path of "brand" construction.Advantageous models and fields
Kanti provides a large number of CNC systems and servo products for domestic metal cutting machine tools, and is a major participant in the popularization of CNC machine tools in China. We have good cooperation with major domestic machine tool manufacturers. Our products have good performance in the processing fields of auto parts, pumps, gas / liquid systems, hardware, consumer electronics and so on, which are deeply loved by users, and the market share is in the forefront.Packing & Delivery
