Product Description

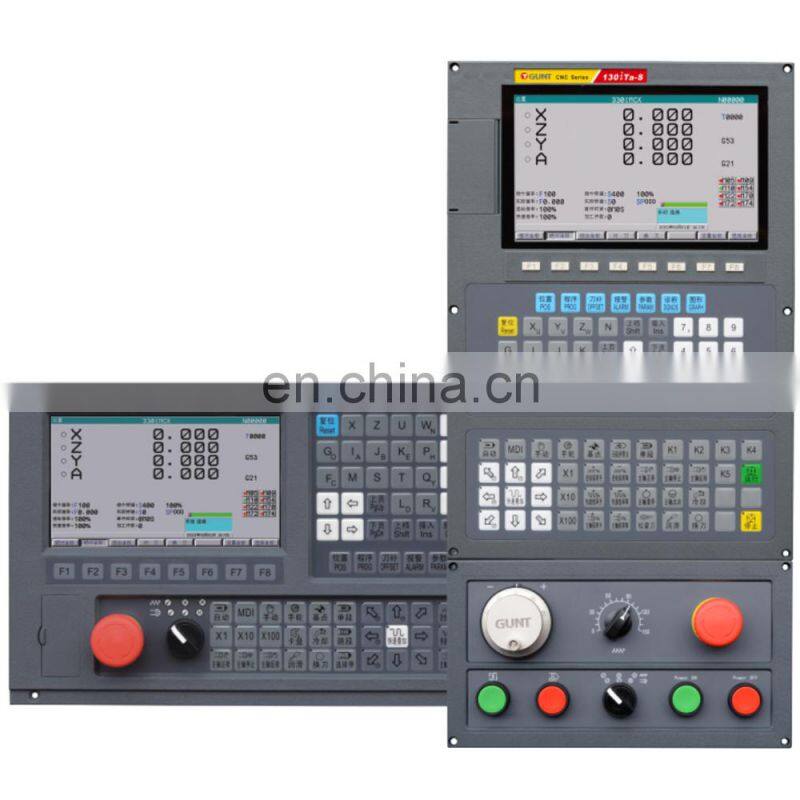

GUANGTAI CNC SYSTEM GUNT-130iTa
GUNT-130iTa The CNC system is upgraded with a new appearance structure and upgraded software and hardware. The interface is compatible with the previous generation 130ita. The system has high stability, stronger control function, simple operation and higher cost performance. It is equipped with absolute value encoder to realize high-speed and high-precision control.
Product Parameters
●Number of control axes: 2 axes
●Number of linkage axes: 2 axes
●Industrial 32-bit 200MHz ARM processor
●32MB user memory
●Resolution 800 × 480, 8-inch true color LCD
●The motion control core is composed of industrial DSP and FPGA
●Real time omni-directional self diagnosis function, real-time display of various states of the system
●Sub feed and rotary feed
●Metric and imperial input mode
●He machine tool returns to the reference point and the floating zero point
●Linear interpolation, circular arc interpolation, thread interpolation instructions can be used to turn metric and British single head / multi head straight thread, conical thread, circular arc thread, end face thread, variable pitch thread and continuous thread
●A variety of composite cycle commands, such as outer circle rough turning composite cycle, end face rough turning composite cycle,composite contour rough turning composite cycle, chip removal drill end face composite cycle, outer diameter / inner diameter drilling / grooving composite cycle, thread cutting composite cycle, etc., are convenient to improve machining efficiency
●Independent automatic backlash and stored pitch error compensation for each shaft. Tool automatic compensation function, tool tip radius C tool compensation function
●The maximum speed and lifting speed of each axis are set independently
●Programming unit metric British system switching function
●Programming setting of auxiliary shaft angle and displacement
●Multi group coordinate system setting
●Maximum stroke soft and hard limit function
●Chinese and English interface switching
●Display the current time, startup time, single piece time, processing time, cumulative working time of the machine tool and other information
●Screen display copy function
●Various interpolation command functions and m, s, t functions, etc
●The program preprocessing function can realize the smooth and seamless connection between program segments (lines)
●Parameters 、Software backup 、Upgrade function
●System G code group selection

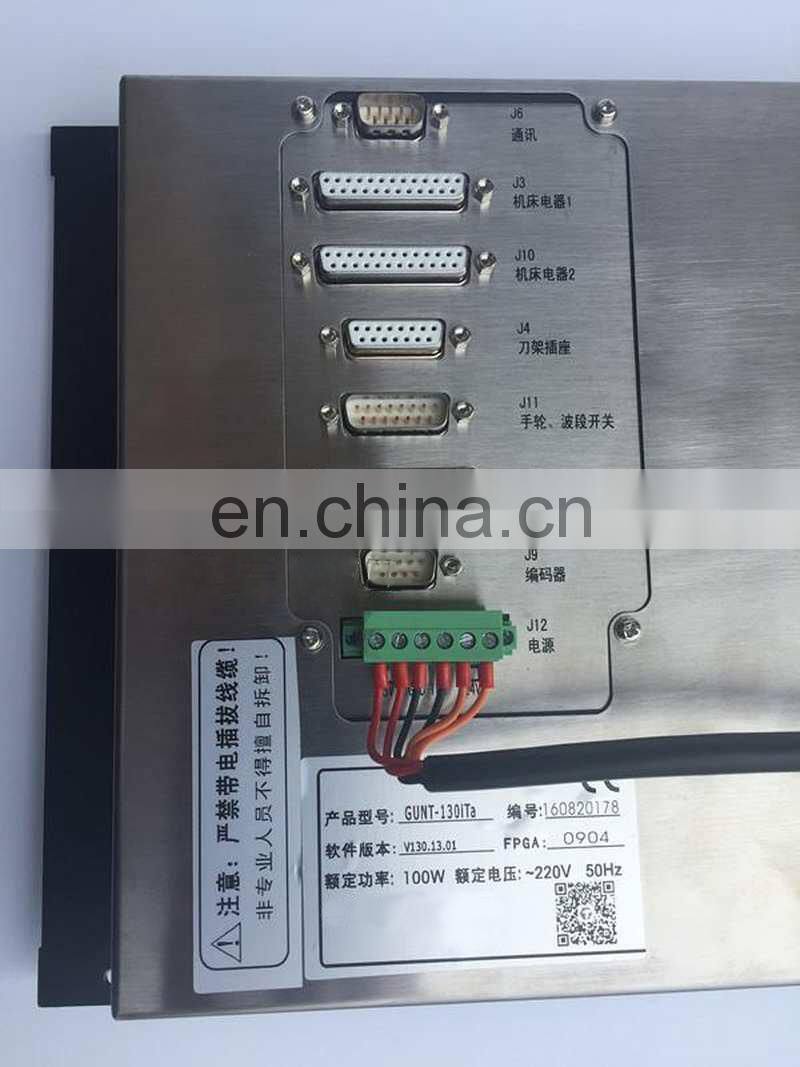

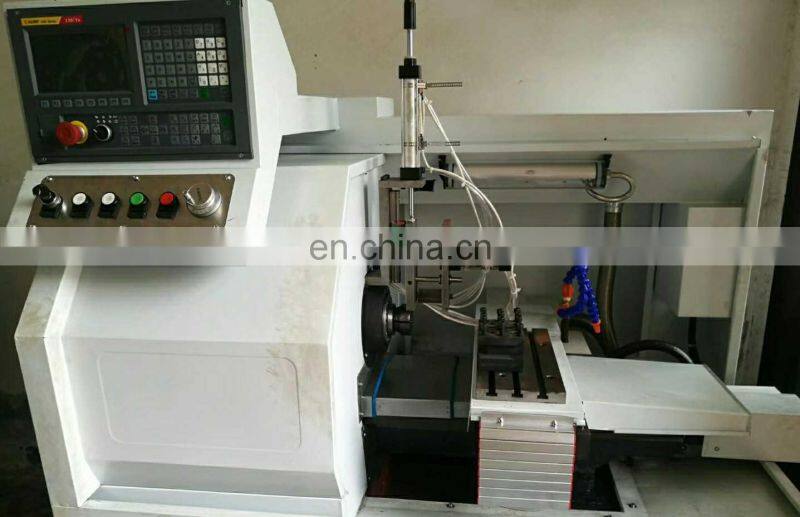

Physical product
Packing & Delivery
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below
