Home > Industrial Equipment & Components > Valve > Ball Valve > Spring Return Damper Actuator With 2 Auxiliary Switch 3Nm for HVAC System AC/DC 24V AC220V
Spring Return Damper Actuator With 2 Auxiliary Switch 3Nm for HVAC System AC/DC 24V AC220V
US$ 77.25 - 81.75
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
24v solenoid valve water controller, ATC GOGO AUTOMATIC
Place of Origin:
Zhejiang, China
Model Number:
DMF-Z-50S, DA3FU24V-DS/ DA3FU230V-DS
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CWX-15N DN15 G1/2 MxM Motorized Ball Valve for IC Card Smart Meters DC3-6V /DC12V CR01 / 02/ 05US$ 15.52 - 15.52MOQ: 10 Pieces -
CWX-15N DN15 G1/2 MxF Electric Ball Valve for IC Card Smart Meters DC9-24V CR01 / 02US$ 17.85 - 17.85MOQ: 10 Pieces
-
CWX-15N DN15 G1/2 MxF Brass MINI Automatic for IC Card Smart Meters AC/DC9-24V / AC220V CR03 / 04US$ 19.12 - 26.25MOQ: 10 Pieces
-
CWX-15N DN20 G3/4 MxF Motorized Ball Valve for Central Air-conditioning Fan Tray DC3-6V /DC12V CR01 / 02/ 05US$ 16.72 - 16.72MOQ: 10 Pieces
-
CWX-15N DN15 G1/2 MxM Brass Electricvalve MINI Automatic Motor Valve AC/DC9-24V / AC220V CR03 / 04US$ 19.12 - 26.25MOQ: 10 Pieces
Brand Name
24v solenoid valve water controller, ATC GOGO AUTOMATIC
Place of Origin
Zhejiang, China
Model Number
DMF-Z-50S, DA3FU24V-DS/ DA3FU230V-DS
Material
Plastic
Application
General
Structure
Control
Pressure
Medium Pressure
Port Size
2"
Temperature of Media
Medium Temperature

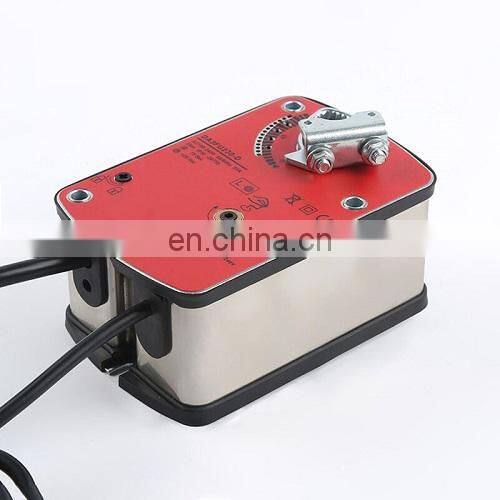

Spring return damper Actuator with 2 auxiliary switch 3Nm for HVAC system AC/DC 24V AC220V
Model: DA3FU24V-DS/ DA3FU230V-DS
Toque: 3Nm
Nominal Volatage: AC100-240V; AC/DC24V
DS type include 2 auxiliary switch
Running time : Running time 75s; spring reset time<25s
Life-time: 60,000 timesrotation
Technical Specification:
|
Types |
DA3FU24-D |
DA3FU24-DS |
DA3FU230-D |
DA3FU230-DS |
|
|
Torque5 |
3Nm |
||||
|
Damper size |
1m2 |
||||
|
Running time |
Running time 75s; spring reset time<25s |
||||
|
Power supply |
AC24V 50/60Hz;DC24V |
AC90~250V 50/60Hz |
|||
|
Power consumption |
working 5W,stop3W |
||||
|
Wire sizing |
0.5mm2 |
||||
|
Weight |
1.5Kg |
||||
|
Control signal |
single line |
||||
|
Direction of rotation |
to install on the other side |
||||
|
Angle of rotation |
max 95º |
||||
|
Angle limit |
position limit 5~85º(5º each step) |
||||
|
Position indication |
machine instruction |
||||
|
Manual override |
without |
||||
|
Rated value of auxiliary switches |
1mA…3(0.5)A,AC220V |
||||
|
Life-time |
60,000 cycles |
||||
|
Sound power level |
Max 45dB(A) when motor working,max62dB(A) while spring return |
||||
|
Protection class |
Ⅲ |
Ⅱ |
|||
|
Protection degree |
IP54 |
||||
|
Ambient temperature |
-20~+50℃ |
||||
|
Ambient humidity |
5~95%RH |
||||
|
Inventory temperature |
-40~+70℃ |
||||
|
Criterion |
CE certification |
||||

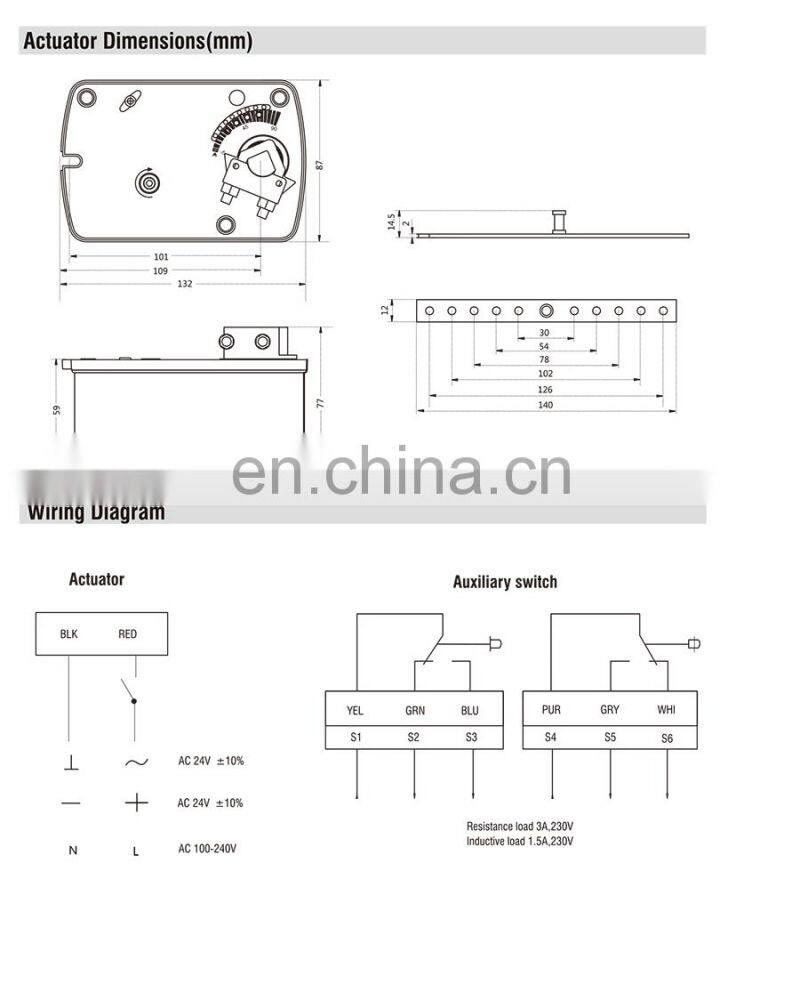

Dimensions

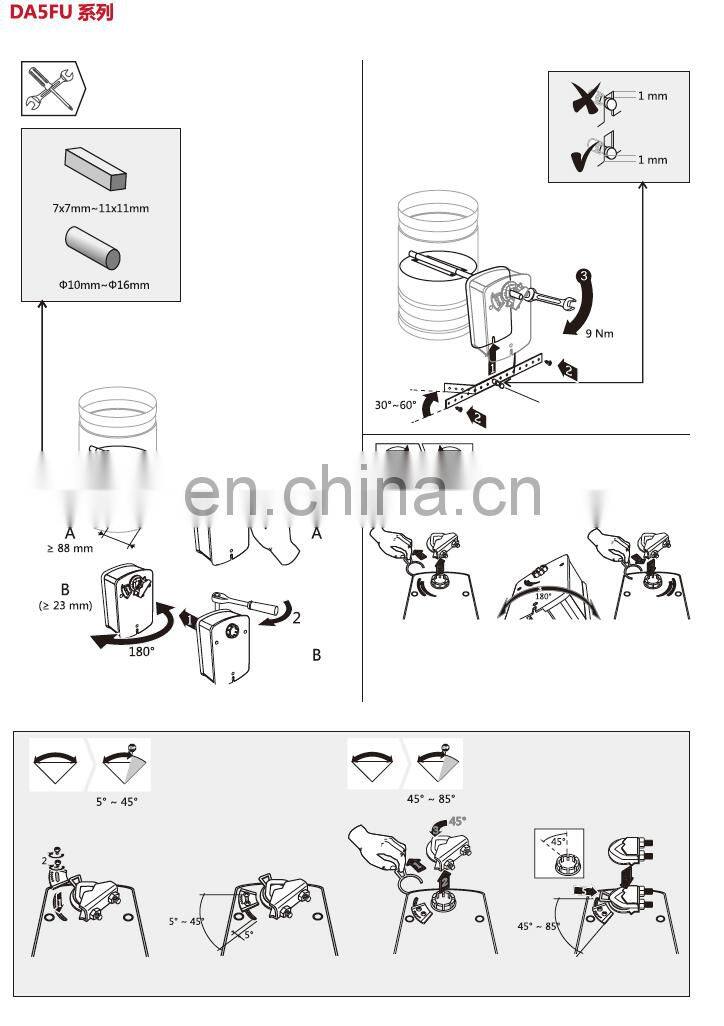

Installation diagram
PHOTOS
