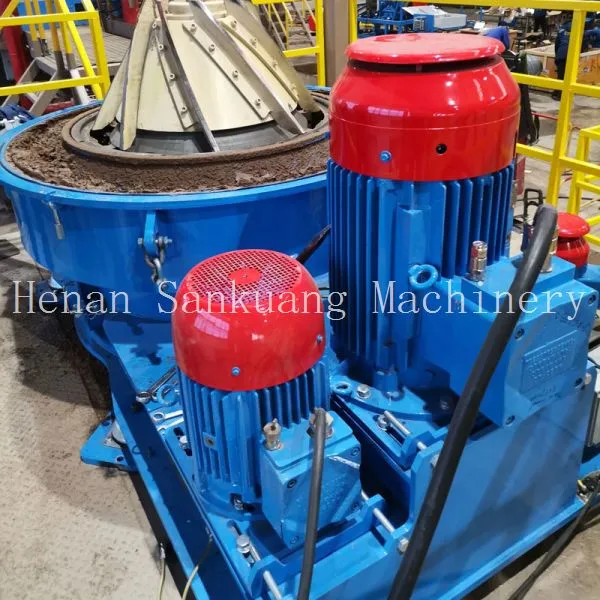

Help CenterHorizontal Coal Dewatering Machine, 304 SS, 380V, 5-10 TPH, With Vibration Motor
Product Spotlights
Related Products
-
Compact Coal Dewatering Machine, 220V, 0.75kW, 0.5 TPH, Lab ScaleUS$ 1000MOQ: 1 Combo -
Coal Dewatering Screen Machine, 0.5mm Gap, 220V, 3kW, 1-3 TPH, Continuous OperationUS$ 1000MOQ: 1 Combo
-
Coal Dewatering Machine for Coal Washing Plant, 380V, 15 TPH, Efficient DewateringUS$ 1000MOQ: 1 Combo
-
Automatic Coal Dewatering Machine, 220V, 1.5kW, 0.2mm Mesh, 2 TPH CapacityUS$ 1000MOQ: 1 Combo
-
1 Year Warranty Coal Dewatering Machine, 380V, 10TPH, Free Technical TrainingUS$ 1000MOQ: 1 Combo
Welcome to Henan San Kuang Machinery Technology Co., Ltd. As a professional manufacturer established in 2022 with a factory spanning 10,000–30,000 square meters, we take pride in delivering reliable industrial solutions. Our horizontal coal dewatering machine, crafted from 304 stainless steel and powered by a 380V vibration motor, is designed to efficiently remove moisture from coal with a capacity of 5–10 tons per hour. This machine combines robust construction, low energy consumption, and easy maintenance, making it an ideal choice for coal preparation plants, mines, and processing facilities worldwide.
The core working principle relies on high-frequency vibration generated by the built-in vibration motor, which forces water through the screen mesh while retaining solid coal particles. The horizontal layout ensures a compact footprint, allowing seamless integration into existing production lines. With over 50 employees and annual export value exceeding US$2.5 million, we have supplied this equipment to markets across North America, South America, Europe, Africa, and Asia.
Key Features & Technical Specifications
- 304 Stainless Steel Construction – Corrosion-resistant and durable, ensuring long service life even in harsh coal washing environments.
- 380V Vibration Motor – Direct-drive system provides stable, adjustable vibration amplitude for optimal dewatering efficiency.
- High Capacity (5–10 TPH) – Handles medium to large volumes of coal, suitable for continuous operation.
- Horizontal Design – Low profile saves vertical space and simplifies installation.
- Easy Screen Replacement – Modular screen panels allow quick change-out without special tools.
- Low Noise & Vibration – Equipped with dampening springs and balanced motor to meet workplace safety standards.
- Customizable Options – Available with different screen mesh sizes, voltage variants, and feeding configurations upon request.
| Parameter | Value |
|---|---|
| Model | HCD-5/10 |
| Material | 304 Stainless Steel |
| Voltage | 380V / 50Hz (3-phase) |
| Capacity | 5 – 10 TPH |
| Vibration Motor Power | 2×2.2 kW (standard) |
| Screen Area | 3.5 m² (customizable) |
| Overall Dimensions (L×W×H) | 3500×1800×1500 mm (approx.) |
| Weight | ~2,800 kg |
Dewatering Performance – Under typical coal feed with 20–30% moisture, this machine can reduce moisture content to below 10–12%, depending on particle size and screen configuration. The unique vibration pattern prevents clogging and ensures consistent throughput.
Maintenance & Reliability – All bearings are sealed and lubricated for life. The vibration motor is IP54 rated for dust and water resistance. We provide a comprehensive spare parts package and technical documentation with every order.
Trusted by Global Customers
Henan San Kuang Machinery Technology Co., Ltd. is a certified manufacturer with multiple industry approvals (including ISO9001, ISO14001, OHSAS18001, and others). Our factory is equipped with advanced CNC machining, welding robots, and testing facilities. We have successfully exported to over 50 countries, with main markets in Eastern Europe, Southeast Asia, Africa, and the Americas. Our annual export value of US$2.5–5 million reflects the consistent quality and customer satisfaction we deliver.
We offer flexible shipping from major Chinese ports (Shanghai, Lianyungang, Qingdao, Tianjin) and provide both FOB and CIF terms. Every machine undergoes a 48-hour factory load test before shipment. We also provide online technical support, on-site installation guidance, and training for your team.
Ready to upgrade your coal dewatering process? Contact us today for a quotation or to discuss your specific requirements. Our engineers are available 24/7 to assist you.
Frequently Asked Questions (FAQ)
-
What is the typical moisture reduction rate of this machine?
Under standard conditions, the output moisture can be reduced to 8–12% from an initial 20–30%, depending on coal particle size and screen aperture. -
Can the machine handle wet, sticky coal?
Yes, the high-frequency vibration and 304 stainless steel surface reduce sticking. Optional spray bars can be added for extremely sticky materials. -
What voltage and frequency options are available?
Standard is 380V/50Hz. Custom voltages (e.g., 220V/60Hz, 440V/60Hz) are available upon request. -
How long is the screen mesh lifespan?
With proper maintenance, screen panels last 6–12 months depending on abrasiveness of coal. We supply replacement screens. -
Do you provide installation and training?
Yes, we offer detailed manuals, video guides, and optional on-site commissioning by our engineers. -
What is the warranty period?
Standard warranty is 12 months from shipment date, covering manufacturing defects. Extended warranty is negotiable. -
Can this machine be used for other minerals besides coal?
Yes, it works well for dewatering sand, iron ore, tailings, and other granular materials. Please consult us for specific applications. -
What certifications does your company hold?
We hold multiple certifications including ISO9001, ISO14001, OHSAS18001, and others. Copies can be provided upon request.
