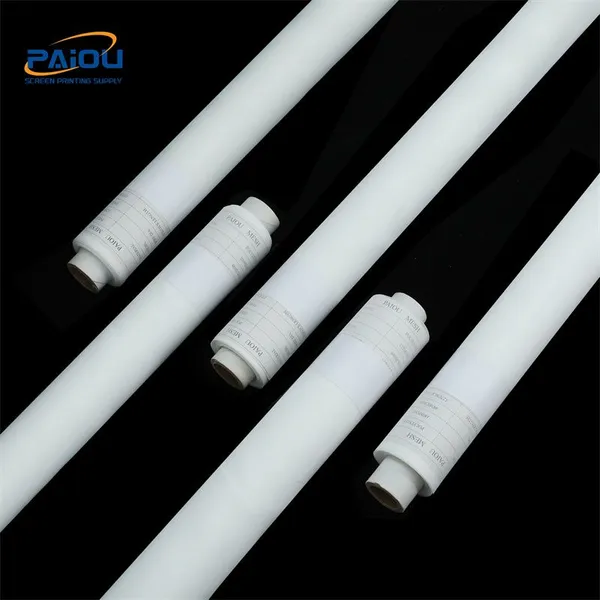

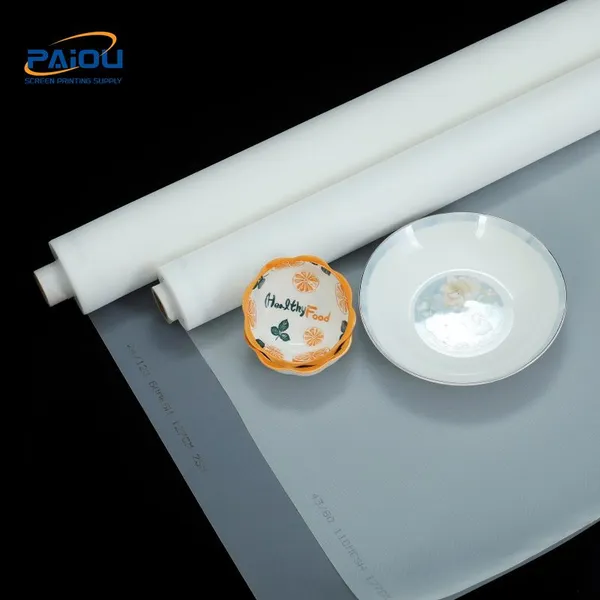

Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth

Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth thumbnail-1
Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth thumbnail-2
Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth thumbnail-3
Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth thumbnail-4
Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth thumbnail-5
Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth photo-1
Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth photo-2
Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth photo-3
Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth photo-4
Food Grade Pure Nylon Wheat Flour Milling Mesh Filter Cloth photo-5
US$ 1 - 20 MOQ: 1 Meter
Key Specifications
Get Latest Price
Material:
Other, PA6
Type:
Other, woven filter mesh
Application:
Other, flour milling mesh
Contact Supplier Request Quote Chat Now
Shijiazhuang Paiou Mesh Co.'ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Material Other, PA6
Type Other, woven filter mesh
Application Other, flour milling mesh
Style Other, woven filter mesh
Hole Shape Square
Color White
Characteristic High Tension and Low Elongation
Width 0.6-3.7m
Roll Length 10m, 15m, 20m, 25m, 30m, 45m, 50m etc
Capacity 5000m2/Day
Popular Width 115cm, 127cm, 258cm etc
HS Code No. 5911200090
Transport Package In carton
Specification 5um-2000um
Trademark PAYOVO
Origin China

Gg and Xxx Pure PA Nylon Filter Flour Milling Mesh China Supplier


Nylon mesh has excellent resistance to most common solvents and will operate continuously at temperatures up to 100°C in the chemical PH range 7-14.
Good abrasion resistance and low coefficient of friction.
Working temperature is typically around 120°C.
Water absorption is very high.
Softening point is between 170°C and 230°C
Melting point is between 210°C and 250°C
Excellent Tear Resistance
Excellent Dimensional Stability
Higher Tension Strength & Break Point


PA-GG Series Flour Milling Mesh Specification sheet
Type Mesh Opening Thread Diameter
(um) 		Base
(cm) 		Mesh count (mesh/inch) Open Area
(%)
PA-10GG 2000 550 3.9 9.9 61.5
PA-12GG 1800 450 4.4 11.2 64
PA-14GG 1600 400 5 12.7 64
PA-15GG 1400 400 5.6 14.2 60.5
PA-16GG 1300 350 6.1 15.5 62.1
PA-18GG 1188 350 6.5 16.5 59.7
PA-19GG 1080 350 7 17.8 57
PA-20GG 1000 300 7.7 19.6 59.2
PA-22GG 950 300 8 20.3 57.8
PA-24GG 850 300 8.7 22.1 54.6
PA-26GG 800 300 9.1 23.1 52.9
PA-27GG 750 250 10 25.4 56.3
PA-28GG 710 250 10.4 26.4 54.7
PA-30GG 670 250 10.9 27.7 53
PA-31GG 610 250 11.6 29.5 50.3
PA-32GG 600 250 11.8 30.0 49.8
PA-34GG 560 220 12.8 32.5 51.5
PA-36GG 530 220 13.3 33.8 49.9
PA-38GG 500 220 13.9 35.3 48.2
PA-40GG 475 200 14.8 37.6 49.5
PA-42GG 450 200 15.4 39.1 47.9
PA-44GG 425 200 16 40.6 46.2
PA-45GG 400 180 17.2 43.7 47.6
PA-47GG 375 180 18 45.7 45.7
PA-50GG 355 150 19.8 50.3 49.4
PA-52GG 335 150 20.6 52.3 47.7
PA-54GG 315 150 21.5 54.6 45.9
PA-56GG 308 150 21.8 55.4 45.2
PA-58GG 300 150 22.2 56.4 44.4
PA-60GG 280 150 23.3 59.2 42.4
PA-62GG 275 150 23.5 59.7 41.9
PA-64GG 265 150 24.1 61.2 40.8
PA-66GG 250 120 27 68.6 45.7
PA-68GG 243 120 27.5 69.9 44.8
PA-70GG 236 120 28.1 71.4 43.9
PA-72GG 224 120 29.1 73.9 42.4
PA-74GG 212 120 30.1 76.5 40.8


PA-XX Series Flour Milling Mesh Specification sheet
Type Mesh Opening
(um) 		Thread Diameter
(um) 		Tram Silk
 (um) 		Warp/weft
(cm) 		Open Area
(%)
PA-3xx 300 100+2*60 100 24.0/25.0 54
PA-4xx 280 100+2*60 100 25.5/26.5 53
PA-5xx 250 100+2*60 90 27.5/29 51
PA-6xx 214 90+2*60 90 32/34 49
PA-7xx 199 80+2*60 80 33/36 48
PA-8xx 181 80+2*60 70 36/40 46
PA-8.5xx 160 70+2*60 70 40/43.5 44
PA-9xx 146 70+2*60 64 43/48 44
PA-9.5xx 140 60+2*60 60 43.0/50.0 43
PA-10xx 130 60+2*50 64 49/52 44
PA-10.5xx 125 60+2*50 60 48.5/54.0 40
PA-11xx 120 60+2*50 48 53/60 42
PA-12xx 112 60+2*50 48 55/63 40
PA-12.5xx 106 60+2*43 48 56.0/64.0 40
PA-13xx 100 60+2*50 48 58/68 58
PA-14.5xx 90 50+2*43 50 62.5/71.5 37
PA-15xx 88 50+2*43 48 65/74 34
PA-17xx 80 50+2*43 43 68.0/81.0 35
PA-20xx 75 50+2*43 43 70.0/84.7 34
PA-21xx 71 50+2*43 43 74.0/87.7 33
PA-25xx 63 43+2*43 43 78.0/94.0 30


PA-XX Series Flour Milling Mesh Specification sheet
Mode Mesh Opening                                                               （um） Thread Diameter                                                                                                                                （um） Thickness              （cm） Mesh Count Open Area（%）
PA-3xxx 301  140 22.7 57.6  47
PA-4xxx 280  140 23.8 60.5  44
PA-5xxx 257  120 26.5 67.3  47
PA-6xxx 213  120 30 76.2  41
PA-7xxx 203  120 31 78.7  39
PA-8xxx 182  100 35.5 90.2  42
PA-8.5xxx 163  100 38 96.5  38
PA-9xxx 154  90 41 104.1  40
PA-9.5xxx 143  90 43 109.2  38
PA-10xxx 133  80 47 119.4  39
PA-10.5xxx 124  80 49 124.5  37
PA-11xxx 120  80 50 127.0  36
PA-12xxx 112  70 55 139.7  38
PA-12.5xxx 105  70 57 144.8  36
PA-13xxx 99  70 59 149.9  34
PA-14xxx 97  70 60 152.4  34
PA-15xxx 92  60 66 167.6  36
PA-15.5xxx 89  60 67 170.2  36
PA-16xxx 95  50 69 175.3  43
PA-17xxx 91  50 71 180.3  42

Package:


1. Fold the mesh into PVC bag, then in carton. Suitable for small quantity and have no requirement on the crease.
2. Pack the mesh with papertube and plastic bag, then in cartons. Suitable for large quantity.


Delivery:

1. By Express company(Fedex, DHL, TNT, EMS, UPS) . Suitable for small quantity and need materials urgently.
2. By Air. Suitable for small quantity and need materials urgently.
3. By Sea. The most economical way, suitable for larget quantity or don't need materials urgently.
4. By truck or Railway, suitable for Landlocked country.
