Rod-Type Guided Wave Radar Level Meter - Anti-Adhesion, Temperature-Resistant, Suitable for Complex Working Conditions
Product Spotlights
A precision instrument for industrial level measurement, leveraging time-of-flight microwave technology. It emits high-frequency pulses along a steel cable/rod, reflects off media surfaces, and converts time differences into accurate level readings.
Features include advanced echo processing for high accuracy, adaptability to complex conditions (high temp/pressure, low dielectric media), and safe installation in various containers (metal/non-metal) with low emission power.
Features include advanced echo processing for high accuracy, adaptability to complex conditions (high temp/pressure, low dielectric media), and safe installation in various containers (metal/non-metal) with low emission power.
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)

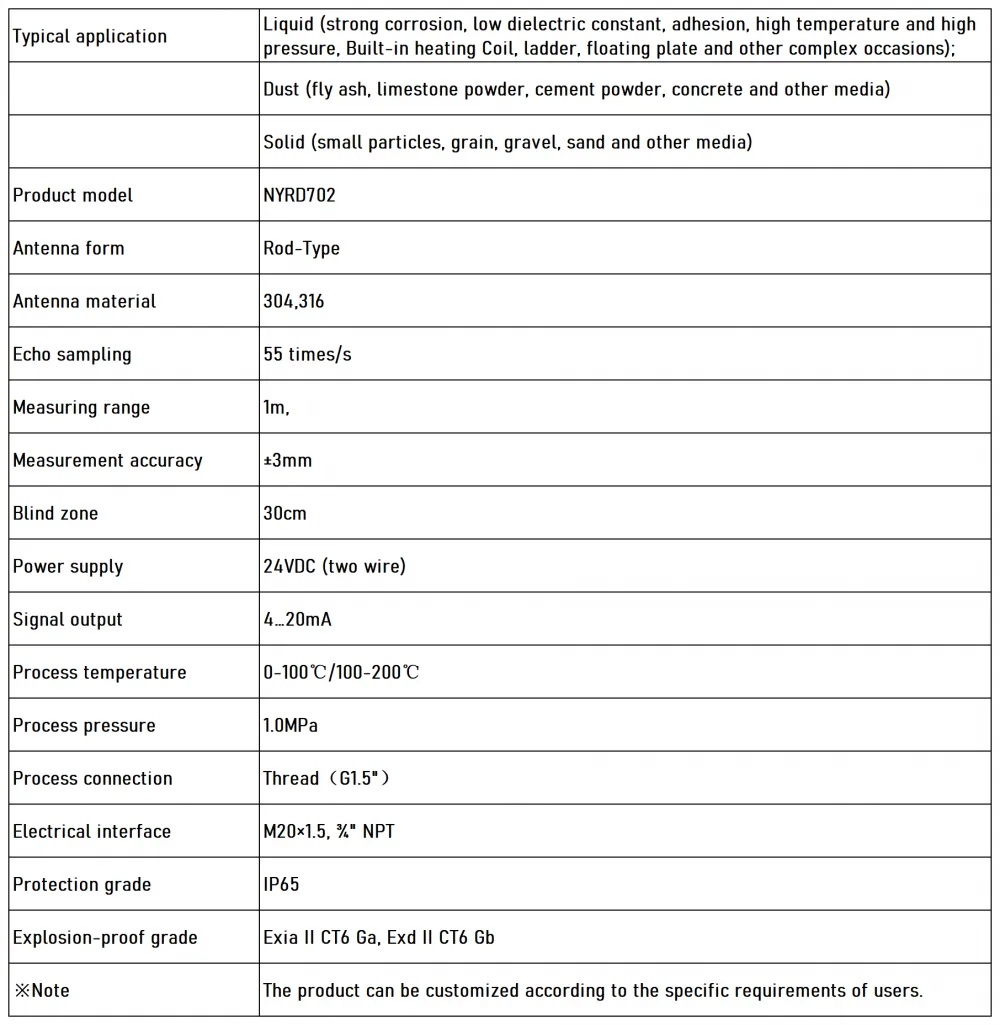

Key Specifications
Get Latest Price
Location:
Xi'an, Shaanxi, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Precise Coaxial Guided Wave Radar Level Meter - Contact Measurement With Advanced Sensing TechNegotiableMOQ: 1 Unit -
2-Wire Transmitter Tank-Side Display Controller - 24V Power | Intrinsically Safe, Isolated, Dust Explosion ProtectionNegotiableMOQ: 1 Unit
-
Fork Length OEM Hirschmann Tuning Fork Explosion Proof Fuel Oil Level Switch Level Sensor 24VDC Power SupplyNegotiableMOQ: 1 Unit
-
OEM Vibrating Fork Type Level Switch Water Level Switch Controller and Detector for Liquid Level Monitoring Power Supply 24VDCNegotiableMOQ: 1 Unit
-
OEM Vibrating Fork Type Level Switch Water Level Switch Controller and Detector for Liquid Level Monitoring Power Supply 220VACNegotiableMOQ: 1 Unit
The high-frequency microwave pulse emitted by the guided
wave radar propagates along the detection component
(steel cable or steel rod), and encounters the measured
medium. Due to the sudden change of the dielectric
constant, it causes reflection, and a part of the pulse
energy is reflected back. The time interval between the
transmitted pulse and the reflected pulse is proportional
to the distance of the measured medium.
