MGW-D70 Diesel-Heat Car Spray Booth

Product Spotlights

MGW-D70 diesel-heat spray booth is used for standard car spraying and baking,by side exhaust

US$ 5800 1 - 9 Set

US$ 5600 ≥10 Set

Key Specifications

Type:

Spray Booth

Certification:

Warranty:

18 months

Qingdao Megawin International Trade Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao,China

Delivery Detail:

15 days

Type Spray Booth

Certification CE

Warranty 18 months

Coating Powder Coating

Brand Other, Megawin

After-sales Service yes

Heating Mode Diesel

Airflow Direction Cross-flow Type

Paint Mist Treatment Dry-type

Condition New

Substrate Steel

Transport Package Wrapped film wrapping and packaging

Origin Shandong,China

Technical Parameter
External size	7000 × 5250 × 3300 mm (L×W×H)
Internal size	6900 × 3900 × 2600 mm (L×W×H)
Main door size	3000 × 2500 mm,3-folds,sheet metal frame,with handle & lock and safety glass windows
Escape door size	700 × 1800 mm,1-fold,aluminum alloy frame,with handle & lock and safety glass windows
ing temperature	80 ºC
Heating time (20-60ºC)	4/6 min
Total power	11 kw

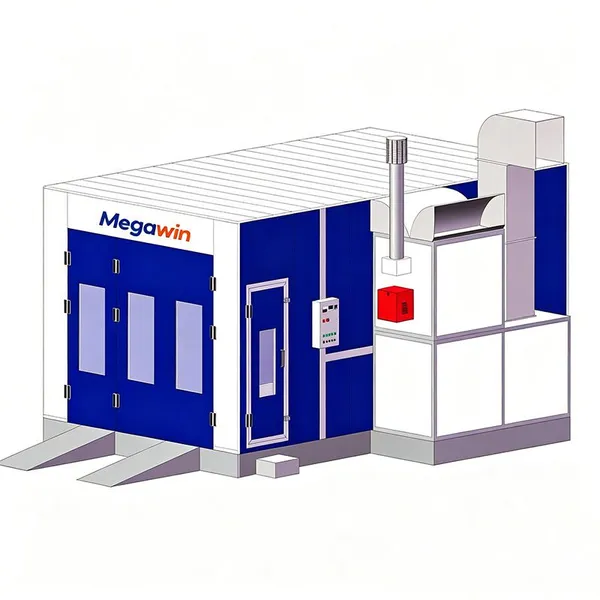

Note:the picture is for reference only
Specification
Cabin system	wall panel	50mm EPS panel+0.4mm steel plate+0.6mm galvanized steel roof panel
	basement	-300mm height,3 rows of galvanized steel grills,2 rows of embossed plate galvanized -plate ramp,1900 × 630 mm × 2pcs
Air Handling system	intake fan	2 × 3 kw centrifugal fan
	exhaust fan	1 × 4 kw centrifugal fan
		cabinet for fan ×1unit,air duct ×3pcs,electric damper ×1unit
Heating system	burner	Italy Riello G10 diesel burner(optional FS10 gas burner)
	heat exchanger	Stainless steel heat exchanger,argon arc welding
Lighting system	ceiling light	8units × 4pcs=32pcs × 24w
	side light	optional
Filtering system	pre-filter	effectively capture dust particles larger than 10 microns
	ceiling filter	italy SF-600G high efficiency filter,filtering rate>99%
	floor filter	fiberglass filter,filtering rate>70%
Control system	power switch,spraying/heating switch,light switch, breakdown alarm,emergency stop etc
Voltage	optional
Color	optional
Note	All spray booth is customizable
