HYDROPA Control Valve WEH16AHY-F1/X/R/V/G12/V
Product Description
The W*H16* pilot-operated directional control valve can be actuated by either a solenoid or pressure oil, depending on the drive method. This valve is used for directional control in hydraulic systems and is specifically designed for modern control systems. Its optimized flow path design ensures a low pressure drop even at high flow rates. Thanks to its CETOP interface, the valve can be mounted on a mounting plate or directly on a control block. The WEH16* electrically piloted directional control valve primarily consists of a main valve body and an electromagnetic pilot valve. The solenoid drives the pilot piston to move longitudinally, thereby releasing pressure oil to one side of the main control piston, which then switches to the desired position. As a result, the main flow can flow from port P to system ports A or B. The fluid discharged by the actuator flows back to the tank via port A or B. The required control fluid supply within the valve can be provided internally via port P or externally via port X from an external pressure source. When the solenoid is de-energized, both the pilot piston and the main piston return to their initial positions. The hydraulically actuated WVH16* is remotely controlled via an externally mounted pilot valve.
| Item | Specification |
|---|---|
| Origin | Germany |
| Actuation Type | Electro-hydraulic |
| Nominal Size | NG16 |
| Design Version | Version A |
| Solenoid Voltage | 12 V |
| Seal Material | Viton (FKM) |
| Measurement Conditions | v = 35 mm/s, t = 50 ℃ |
| Construction Type | Spool valve |
| Mounting Position | Any orientation |
| Mounting Pattern | Subplate mounting to ISO 4401 / CETOP 07 |
| Max Working Pressure – Ports P, A, B | 320 bar |
| Max Working Pressure – Port T (Internal Pilot Drain) | 140 bar |
| Max Working Pressure – Port T (External Pilot Drain) | 250 bar |
| Working Medium | Mineral oils conforming to DIN 51524 |
| Maximum Ambient Temperature | +50 ℃ |
| Fluid Viscosity Range | 20 ~ 400 mm²/s (cSt) |
| Contamination Level | ISO 4406 (1999): 21/18/15 |
| Fluid Temperature Range | -20 ~ +80 ℃ |
| Maximum Flow Rate | 300 L/min |
| Weight (1 solenoid) | 8.5 kg |
| Weight (2 solenoids) | 9.1 kg |
| Pilot Control Pressure | 5 ~ 210 bar |
| Max Flow @ 210 bar | 250 L/min for D-type control piston300 L/min for all other control pistons |
| Permissible Voltage Tolerance | ±10 % of nominal voltage |
| Max Switching Frequency | 10,000 cycles per hour |
| Switching Times (±10% tolerance) | 2-position:Switch-on: 60 ms; Switch-off: 80 ms3-position:Switch-on: 80 ms; Switch-off: 60 ms |
| Service Life | 10⁷ switching cycles |
| Protection Class (DIN 40050) | IP65 |
Performance Characteristics
Pilot-operated 4-way valve NG 16
Pressure range p: up to 320 bar
Flow rate range Q: up to 300 l/min
Connection dimensions comply with DIN 24340 and ISO 4401 standards

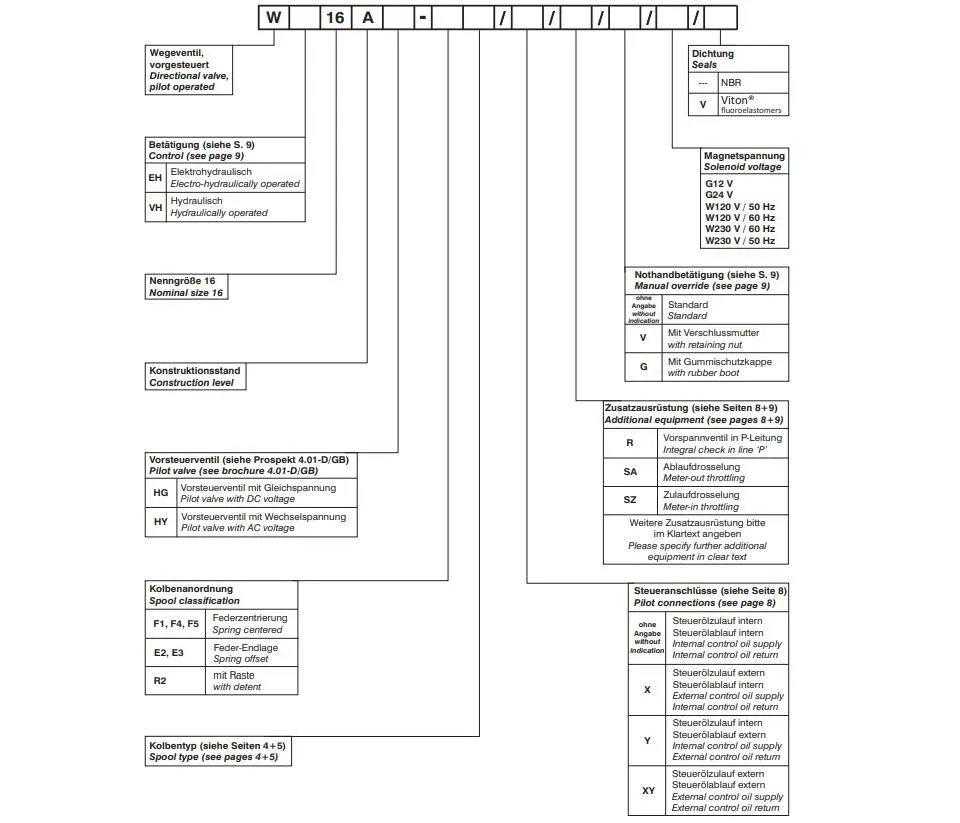

Selection Guide
WEH 16* - Electro-hydraulically driven
WVH 16* - Hydraulically Actuated

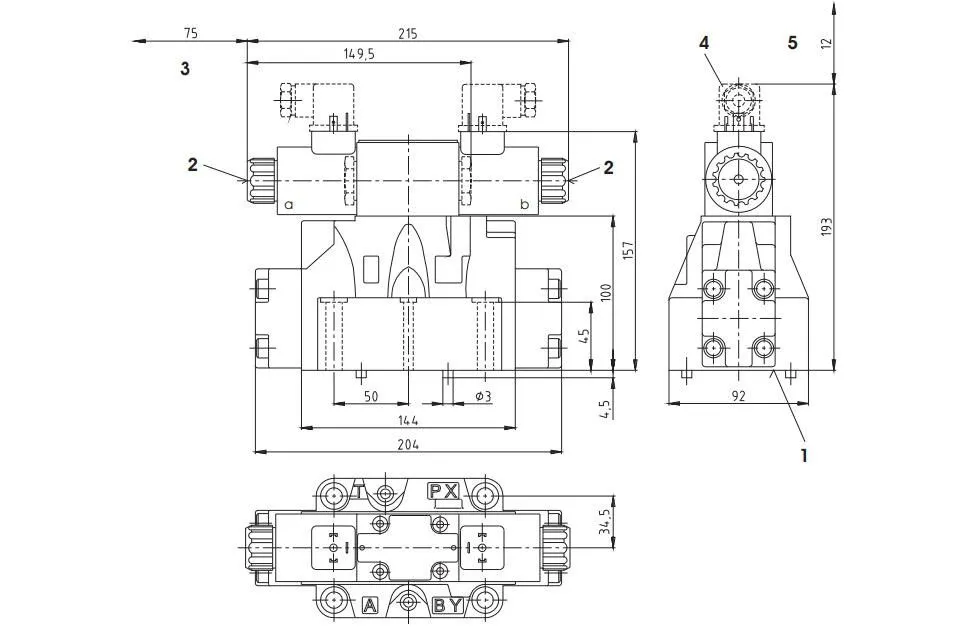

Product Structure and Details
Pilot valve: AC voltage pilot valve
Piston arrangement: Spring-centered
Control Interface: External control oil inlet; internal control oil outlet
Additional Equipment: Pre-tensioning valve in P line
Emergency Manual Operation: With locking nut
Curves: δp-Q characteristic curve
Product Applications
Power generation, coal mining, steel, machine tools, agricultural machinery, automotive manufacturing, machinery manufacturing, petrochemicals, civil construction, metallurgy, etc.
