Home > Computer Products > Mainboard > GeniusCore RK3288 Liontron C4 Industrial Single Board Computer 2GB+32GB EMMC 4K Decoding Android Linux Embedded Control Mainboard

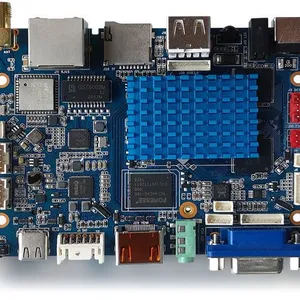

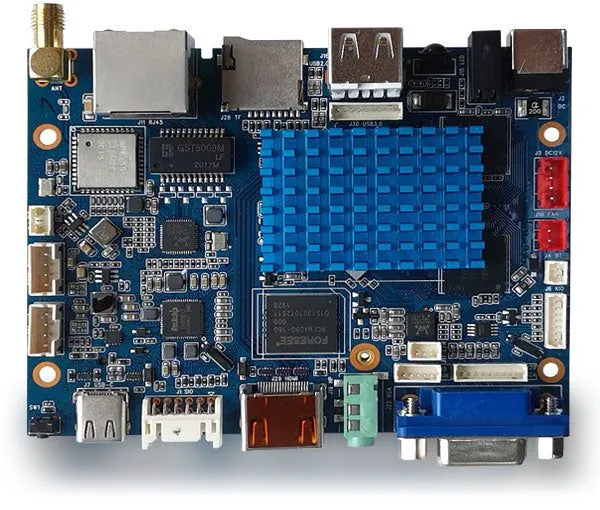

GeniusCore RK3288 Liontron C4 Industrial Single Board Computer 2GB+32GB EMMC 4K Decoding Android Linux Embedded Control Mainboard
Product Spotlights
RK3288 C4 Smart Minicomputer SBC adopts Rockchip RK3288 quad-core Cortex-A17 CPU up to 1.6GHz with Mali-T764 GPU, supporting 4K & 1080P hardware decoding. Standard 2GB RAM +16GB eMMC. Equipped with HDMI2.0, VGA, Ethernet, Wi-Fi, Bluetooth and multi serial ports, ideal for digital signage and industrial embedded control.
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Integrated Graphics:
Integrated Graphics
Main Chipset:
Other, Rockchip RK3288 ARM SoC, non-Intel/AMD/NVIDIA chipset.
Maximum Memory Capacity:
4G
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
24 days
Related Products
-
Friendly Elec NanoPi CM3588 Development BoardNegotiableMOQ: 1 Piece -
Friendly Elec NanoPi CM3588 Plus RK3588 AI & Edge Computing Development BoardNegotiableMOQ: 1 Piece
-
Friendly Elec CORE4418 Development BoardNegotiableMOQ: 1 Piece
-
Friendly Elec CORE6818 Development BoardNegotiableMOQ: 1 Piece
-
GeniusCore RK3588 D-3588 Edge AI Single Board Computer WiFi 6 Dual 2.5G GbE Industrial Embedded Dev BoardNegotiableMOQ: 1 Piece
Integrated Graphics
Integrated Graphics
Main Chipset
Other, Rockchip RK3288 ARM SoC, non-Intel/AMD/NVIDIA chipset.
Maximum Memory Capacity
4G
Memory
Other, Support LPDDR3 onboard memory (2GB standard, optional 4GB).
SATA Interface
Other, No onboard SATA interface, storage via eMMC flash.
CPU Socket
Other, Onboard BGA soldered RK3288 SoC, no removable CPU socket.
Printed Circuit Board
Double Layers
Main Board Structure
Integrated
Audio Effects
Not HiFi
Structure
Other, Custom embedded SBC size 100mm × 72mm, not standard ATX/Micro ATX/Mini-ITX form factor.
Model
C4
Transport Package
Export Carton
Trademark
GeniusCore
Origin
China
|
RK3288 Smart Minicomputer Single Board Computer 2GB RAM 16GB eMMC C4 C4 is a smart minicomputer single board computer powered by the Rockchip RK3288 processor, featuring a high-performance ARM Cortex-A17 quad-core CPU clocked up to 1.6GHz. The integrated Mali-T764 GPU supports 4K and 1080P hardware decoding, making it ideal for multimedia, digital signage, and embedded industrial solutions. Designed with a compact footprint and essential connectivity, the C4 is well-suited for a variety of smart applications requiring display output and control capabilities. Key Features: Processor: Rockchip RK3288, ARM quad-core Cortex-A17, up to 1.6GHz Graphics: Mali-T764 GPU, supports OpenGL ES 1.1/2.0/3.1 Display Support: HDMI 2.0 (up to 4K) VGA (up to 1080P) Connectivity: 4 × USB 2.0 (2 external, 2 internal) 1 × 10/100Mbps Ethernet Wi-Fi 802.11 b/g/n Bluetooth 4.0 Serial Ports: 4 × TTL/RS232 Memory & Storage: Default 2GB RAM, 16GB eMMC (supports up to 128GB) Power Supply: 9V–15V wide voltage DC input Form Factor: Compact 100mm × 72mm |
