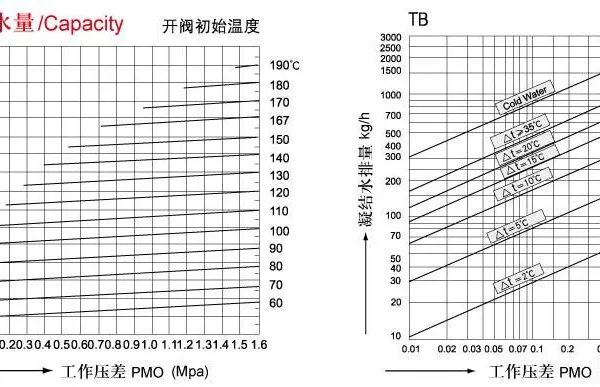

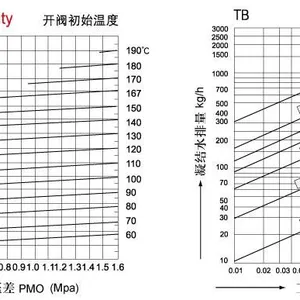

Help CenterIndustrial Thermostatic Steam Trap With Bimetal Element
Product Spotlights
✓ No Live Steam Loss
✓ Long Service Life
✓ Resistant to Water Hammer
Related Products
-
Industrial Thermostatic Steam Trap With Bimetal ElementNegotiableMOQ: 1 Piece -
Bimetallic Steam Trap for Power Plant and Petrochemical IndustryNegotiableMOQ: 1 Piece
-
China Bimetallic Steam Trap Manufacturer & OEM SupplierNegotiableMOQ: 1 Piece
-
Reliable Bimetallic Steam Trap for Industrial Condensate DrainageNegotiableMOQ: 1 Piece
-
Reliable Bimetallic Steam Trap for Industrial Condensate DrainageNegotiableMOQ: 1 Piece
Inverted Bucket Trap
The interior of the inverted bucket steam trap:this valve adopts the operating principles of density difference between condensate water and steam,and the leverage system connects with inverted bucket to form its internal structure,thus controlling the open and close of the steam pressure.The interior of the inverted bucket steam trap is an inverted bucket,a liquid level sensitive part,with the bucket's opening downward.When the device just started,air and low temperature condensate water occur in the pipes,at the moment the steam trap opens thoroughly,the air and low-temperature condensate water are discharged rapidly and the temperature of the device rises immediately.When any steam enters into the inverted bucket,the bucket will obtain buoyancy and the fixed lever of the bucket drives the valve core to close the valve.There is small aperture on the inverted bucket,which can discharge air automatically.As some of steam is discharged from such aperture,while other steam produces condensate water.The inverted bucket loses the buoyancy and sinks down and its fixed lever drives the valve core to open the valve.When the steam re-enters into the bucket,the valve will close again.It repeats the said procedures to discharge water intermittently.
The inverted bucket steam trap is one of the most solid mechanical steam traps. It has the following advantages: it is not afraid of water hammer, can continuously discharge non condensing gas, and has good anti pollution performance; the maximum back pressure is ≥ 90%, all internal parts are made of stainless steel, wear-resistant and anti-corrosion; the ball valve core and valve seat are in line contact, with good sealing performance and long service life; intermittent drainage and continuous drainage It can discharge condensate close to saturation temperature and make heating equipment reach ideal working efficiency. The valve seat of inverted bucket steam trap is under the protection of water seal, and there is no live steam leakage during operation, so the effect of energy saving is good.
The product applies to such industrial steam heating equipment as petroleum,chemical,printing,paper making and pharmaceuticals and discharge of the steam pipe network.
Merits
1.All moving parts of the internal cavity are made of stainless steel,capable of resistance to abrasion and erosion.
2.As the steam cannot reach the sealed aperture of the valve seat by water,the steam will not lose but has high efficiency and save energy.
3.The float bucket is located inversely.It can resist to water's strike and has long service lift.
4.The invented bucket has gas vent and performance of discharging the air continuously is excellent,without forming cool hysteresis and air blocking.
5.It is free of the affect of the back pressure and can perform well under high back pressure.
6.It has reliable operation and only two moving parts—free lever structure and inverted bucket,so no blockage is produced.
7.The valve seat and valve disc are located at the top of the valve.The valve disc allows the pollutants to pass,so it attains good self-cleaning performance,without affected by pollutants.
|
Shell Pressure grade |
Load leakage |
Used medium |
Discharging of high- temperature air |
Permitted backpressure rate |
Energy saving effect |
|
1.6、 2.5、 4.0MPA |
≈0% |
Steam、 Condensate water |
Adaption |
≥90% |
Excellence/ good |
|
Disposal Of feculence |
operating Pressure differential |
Drainage method |
Maximum allowable temperature |
Air exhaust system |
Resist |
|
Adaption |
4.0MPA |
Continue mode |
420℃ |
Automatic |
Adaption |
The materials of primary accessories
|
Part and component name |
Material |
|
Valve body、Valve cover |
Cast steel、Stainless steel、Alloy steel |
|
Inverted bucket、Lever |
304/316 Stainless steel |
|
Valve seat、Valve clack |
STLAlloy、High chrome stainless steel |
|
Automatic air exhaust |
Stainless steel、Thermo-sensitive element |
|
Filtrating screen |
Stainless steel |
