As a specialized manufacturer, Shanghai Wenqin Plastics Co., Ltd. is proud to introduce our premium Shanghai DuPont PA66 Pellets FR52G30NH. Engineered for demanding applications, this 30% glass fiber reinforced, flame-retardant nylon 66 compound delivers an exceptional balance of mechanical strength, thermal stability, and critical fire safety performance. Designed to meet stringent industry requirements, it is an ideal material solution for components where reliability and safety are non-negotiable.
Our commitment at Shanghai Wenqin Plastics is to provide high-performance polymer materials backed by a robust quality management system, including ISO9001 and ISO14000 certifications. Sourced from reputable raw materials and processed with precision, our FR52G30NH pellets ensure consistent quality and performance batch after batch, supporting your manufacturing excellence from our strategic location in Shanghai.
Product Features & Technical Advantages:
Superior Flame Retardancy: The FR52G30NH grade is formulated to be halogen-free, providing excellent flame retardant properties that help components meet critical safety standards such as UL94 V-0, reducing fire risks in end-use applications.
Enhanced Mechanical Properties: Reinforced with 30% glass fiber, this PA66 compound exhibits significantly improved tensile strength, stiffness, and impact resistance compared to unfilled grades, ensuring parts can withstand high stress and load.
Excellent Thermal Stability: Maintains dimensional stability and mechanical integrity over a wide temperature range, suitable for applications exposed to heat or requiring consistent performance in varying thermal conditions.
Good Electrical Insulation: Inherent properties of PA66 combined with the specific formulation offer good electrical insulation characteristics, making it suitable for electrical and electronic components.
Good Chemical Resistance: Resists many oils, greases, and solvents, enhancing durability in harsh operating environments common in automotive and industrial settings.
Excellent Processability: The pellet form is optimized for injection molding, offering good flow characteristics for filling complex molds and enabling high-efficiency, high-precision manufacturing.
Key Technical Specifications:
| Property | Typical Value | Test Method |
| Density | 1.38 g/cm³ | ISO 1183 |
| Tensile Strength | 160 MPa | ISO 527 |
| Flexural Modulus | 9500 MPa | ISO 178 |
| Izod Notched Impact Strength | 10 kJ/m² | ISO 180 |
| Heat Deflection Temperature (1.8 MPa) | 250 °C | ISO 75 |
| Flame Retardancy | UL94 V-0 (at specified thickness) | UL 94 |

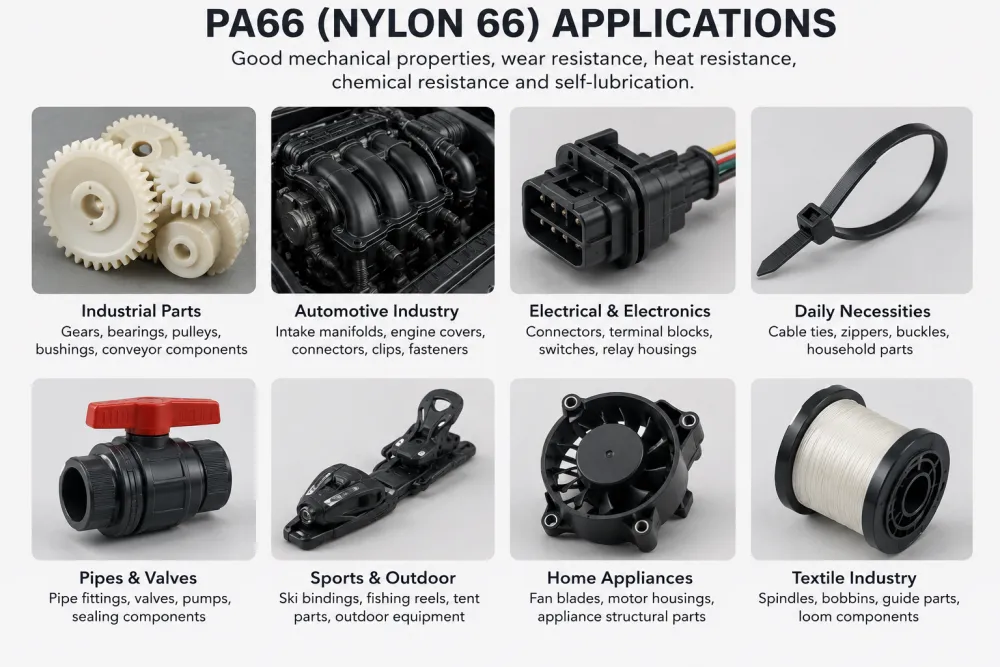

Application Areas: This versatile material is engineered for high-performance parts across multiple industries.
Electrical & Electronics: Connectors, circuit breakers, switches, coil bobbins, and housings for devices requiring flame retardancy and insulation.
Automotive: Under-the-hood components, sensor housings, connectors, and structural parts where heat resistance and strength are critical.
Industrial Equipment: Gears, bearings, rollers, and housings for machinery that demands durability, low friction, and dimensional stability.
Consumer Appliances: Internal components and external casings for appliances where safety, strength, and heat resistance are important.
Frequently Asked Questions (FAQ)
What does "FR52G30NH" signify in the product name?
"FR" stands for Flame Retardant. "52" often refers to a specific grade or formulation code. "G30" indicates 30% Glass Fiber reinforcement. "NH" typically signifies Halogen-Free, meaning the flame retardant additives do not contain chlorine or bromine, which is beneficial for environmental and safety reasons.Is this material suitable for food contact or medical applications?
This standard FR52G30NH grade is not specifically formulated or certified for food contact or medical applications. For such regulated uses, please inquire about specialized, compliant grades.What are the recommended drying conditions before processing?
PA66 is hygroscopic. It is generally recommended to dry the pellets at 80-90°C (176-194°F) for 4-6 hours in a dehumidifying hopper dryer to achieve a moisture content below 0.2% for optimal processing and final part quality.Can the color of the pellets be customized?
Yes. While the standard product is in natural color, we can provide custom color matching upon request. Masterbatches can be added during processing, or we can supply pre-colored pellets.What is the typical lead time for an order?
Lead times depend on order quantity and current stock. For standard grades, shipment can often be arranged promptly from our Shanghai warehouse. For large or custom orders, our team will provide a specific timeline.Do you provide Material Safety Data Sheets (MSDS) and technical data sheets (TDS)?
Yes, comprehensive technical documentation, including TDS and MSDS, is available for this product upon request to support your engineering and safety assessments.How does this grade compare to other flame-retardant nylons?
This PA66 FR52G30NH offers a balanced profile: the high heat deflection temperature and mechanical strength of PA66, combined with halogen-free flame retardancy and the reinforcement of 30% glass fibers. It often provides better heat resistance than FR PA6 grades and good overall performance for structural parts requiring fire safety.What packaging options are available?

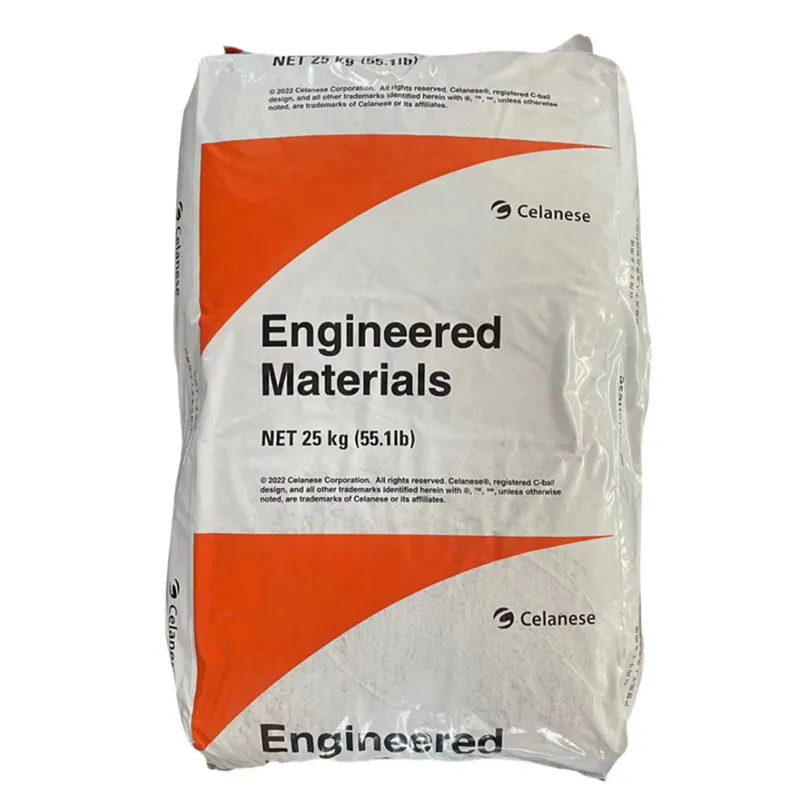

The pellets are typically packed in 25 kg woven bags with inner plastic liners to prevent moisture contamination. Other packaging options, such as big bags or customer-specific packaging, can be discussed.
Shanghai Wenqin Plastics operates with a commitment to quality and reliability, underscored by our adherence to international standards like ISO9001 for quality management and ISO14000 for environmental management. Our strategic location in Shanghai, coupled with extensive shipping experience from ports like Shanghai and Ningbo, enables us to serve a global clientele efficiently across North America, Europe, Asia, and other key markets. We invite you to leverage our expertise in high-performance engineering plastics. Contact us today to discuss how our Shanghai DuPont PA66 FR52G30NH pellets can enhance the safety, performance, and reliability of your products, or to request samples and detailed specifications for your evaluation.
