As a dedicated plastics specialist, Shanghai Wenqin Plastics Co., Ltd. is proud to offer the premium PA66 DuPont ST801 NC010 resin. Leveraging our focus on sourcing and supplying high-performance engineering materials, we provide this exceptional grade to manufacturers worldwide who demand reliability and superior performance in their final products. This super tough, high-impact resistant Nylon 66 resin represents a top-tier solution for applications where durability under stress is non-negotiable. We understand the critical needs of industries from automotive to consumer electronics, and this material is engineered to meet those rigorous challenges head-on, ensuring your components withstand the test of time and use.
This DuPont-engineered PA66 grade is specifically formulated to deliver an outstanding balance of toughness and rigidity. The ST801 NC010 designation signifies a material with enhanced impact resistance, making it less prone to cracking or breaking under sudden loads or in low-temperature environments compared to standard PA66 grades. Its inherent properties include excellent mechanical strength, good chemical resistance, and dimensional stability, which are crucial for precision-molded parts. The "NC010" typically indicates a natural color, which provides maximum flexibility for downstream coloring or is ideal for applications where a neutral base is required.
Core Technical Advantages & Specifications:
Exceptional Impact Strength: The primary selling point of ST801 NC010 is its superior toughness. It absorbs and dissipates energy effectively, making it suitable for parts that may experience drops, impacts, or repetitive stress.
High Mechanical Performance: It maintains the classic PA66 benefits of high tensile and flexural strength, ensuring structural integrity in demanding applications.
Good Thermal & Chemical Resistance: Performs reliably across a range of temperatures and resists many oils, fuels, and chemicals, aligning with requirements in automotive and industrial settings.
Excellent Processability: Designed for efficient injection molding, it offers good flow characteristics for filling complex molds and achieving consistent part quality.
Typical Physical & Mechanical Properties (Representative Values):
| Property | Test Method | Typical Value | Unit |
|---|---|---|---|
| Tensile Strength (Yield) | ASTM D638 | 80 | MPa |
| Flexural Modulus | ASTM D790 | 2800 | MPa |
| Izod Impact Notched (23°C) | ASTM D256 | No Break | J/m |
| Izod Impact Notched (-40°C) | ASTM D256 | High Value | J/m |
| Melting Point | --- | ~260 | °C |
| Density | ASTM D792 | 1.14 | g/cm³ |
Benefits for Your Business: Choosing this resin translates directly into tangible benefits for your production and products. You can achieve components with a longer service life, reducing warranty claims and enhancing brand reputation for durability. Its processability can lead to higher molding efficiency and lower reject rates. Furthermore, the material's performance can potentially allow for part consolidation or lightweighting designs without sacrificing strength, contributing to overall cost savings and design innovation.
Common Applications Include:
Automotive: Under-hood components, connectors, clips, fasteners, and functional parts requiring toughness.
Electrical & Electronics: Housings for power tools, circuit breakers, connectors, and structural parts.
Consumer Goods: Durable sporting goods, lawn and garden equipment components, and housings for appliances.
Industrial: Gears, rollers, bearings, and other mechanical parts subjected to impact loads.
Shanghai Wenqin Plastics operates with a commitment to quality and reliability, supported by a comprehensive quality management system including ISO 9001. Our strategic location in Shanghai and shipment ports like Shanghai and Ningbo enable efficient logistics to our main markets across North America, South America, Europe, Asia, Africa, and Oceania. We serve a diverse global clientele, understanding the nuanced requirements of different regions. This DuPont PA66 ST801 NC010 resin is more than just a material; it's a partnership in enhancing your product's performance. We invite you to contact us to discuss how this super tough nylon resin can be integrated into your supply chain, request samples for testing, or obtain a competitive quotation tailored to your volume needs. Let us help you build stronger, more reliable products.
Frequently Asked Questions (FAQ):
Q: What does "ST801 NC010" specifically mean in this DuPont PA66 grade?
A: "ST" typically stands for "Super Tough," indicating a formulation with significantly enhanced impact resistance. "801" is the specific grade designation from DuPont. "NC010" commonly refers to the color code, with "NC" meaning Natural Color, providing a clean base for coloring or use as-is.Q: How does the impact resistance of ST801 compare to a standard PA66 grade?
A: The ST801 grade is engineered to offer substantially higher impact strength, especially at room temperature and below. Where standard PA66 might be notch-sensitive and brittle upon impact, ST801 is designed to absorb energy and resist cracking, often showing "no break" in standard Izod impact tests.Q: Is this material suitable for outdoor applications with UV exposure?
A: Unmodified PA66, including ST801, can be susceptible to degradation from prolonged UV exposure. For outdoor use, it is generally recommended to use UV-stabilized versions of the material or apply protective coatings. We can inquire about stabilized options for your specific need.Q: What are the key processing parameters for injection molding with this resin?
A: Like most PA66, it requires drying before processing (typically 80-90°C for 3-4 hours). Recommended melt temperature ranges are usually between 280-300°C, and mold temperatures around 80-100°C. Always refer to the official technical datasheet for precise, grade-specific processing guidelines.Q: Can this grade be reinforced with glass fibers or other additives?
A: The ST801 NC010 is typically supplied as an unreinforced, super tough base resin. For applications requiring higher stiffness or dimensional stability along with toughness, glass-filled or mineral-filled super tough grades are available from various suppliers. We can assist in identifying the most suitable grade for your combined property requirements.Q: Do you provide material certifications or test reports with shipment?
A> Yes, upon request, we can provide a Certificate of Analysis (CoA) for the shipment batch, detailing key property values. For specific third-party test reports, please inquire, as they may be subject to availability and feasibility.Q: What is the typical packaging for this resin?

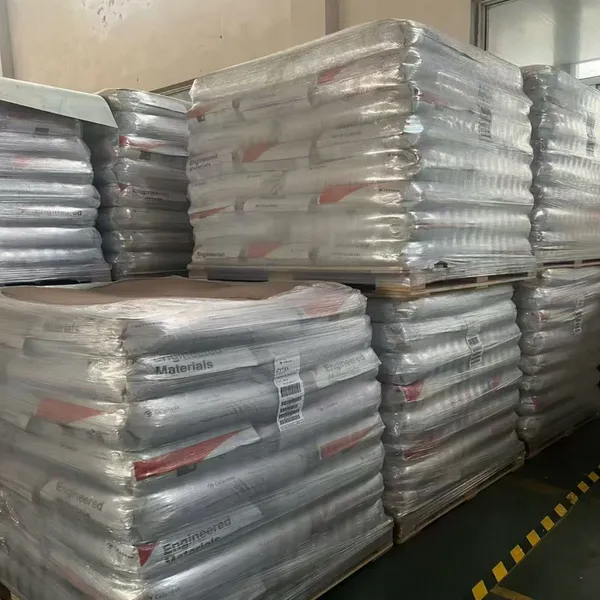

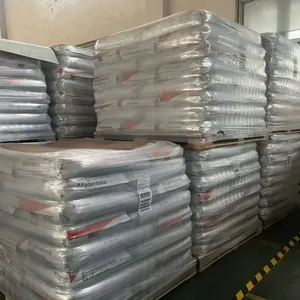

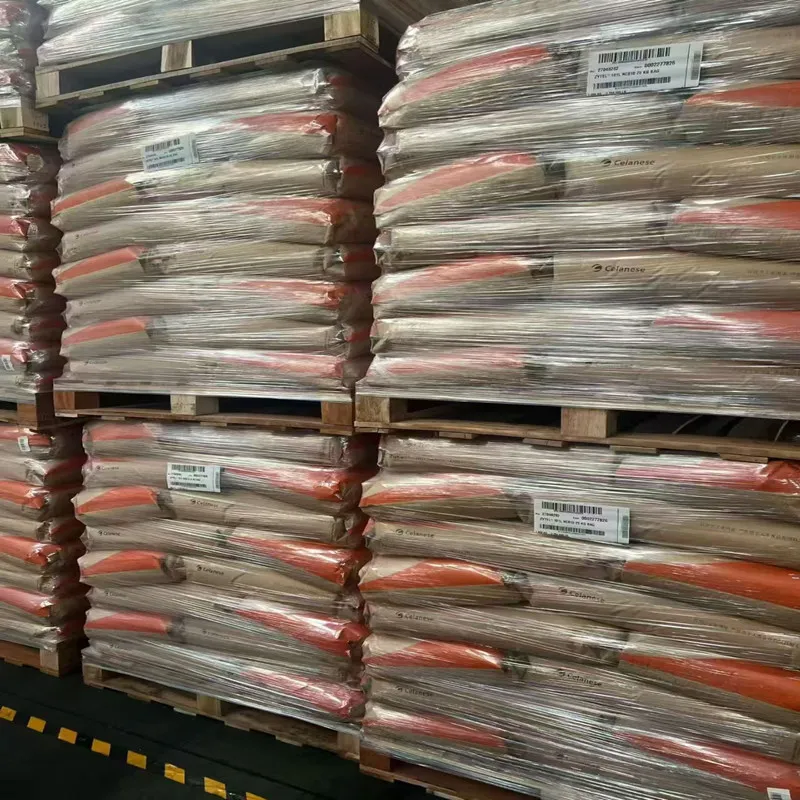

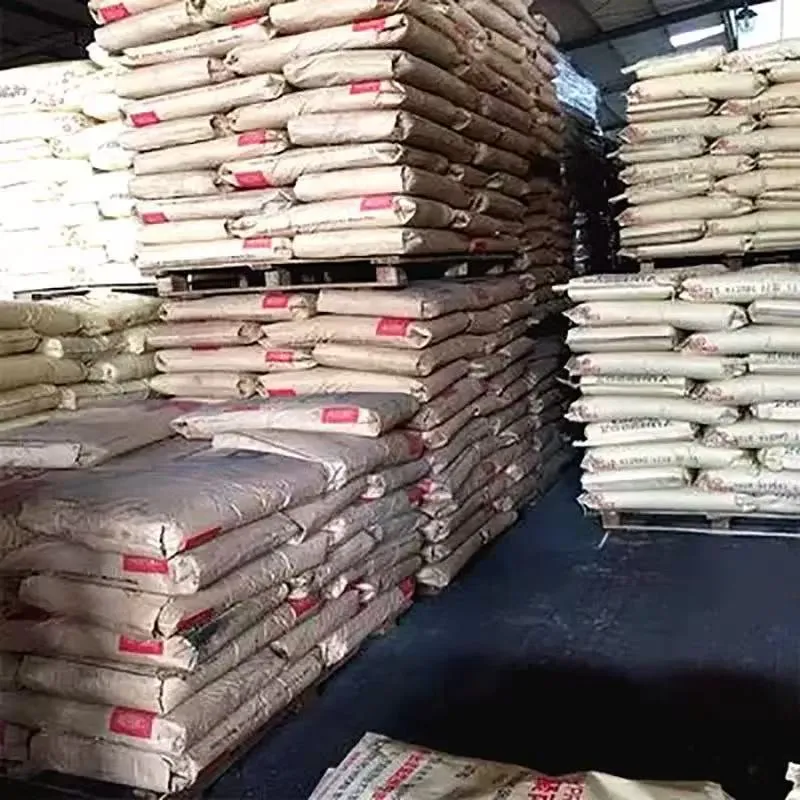

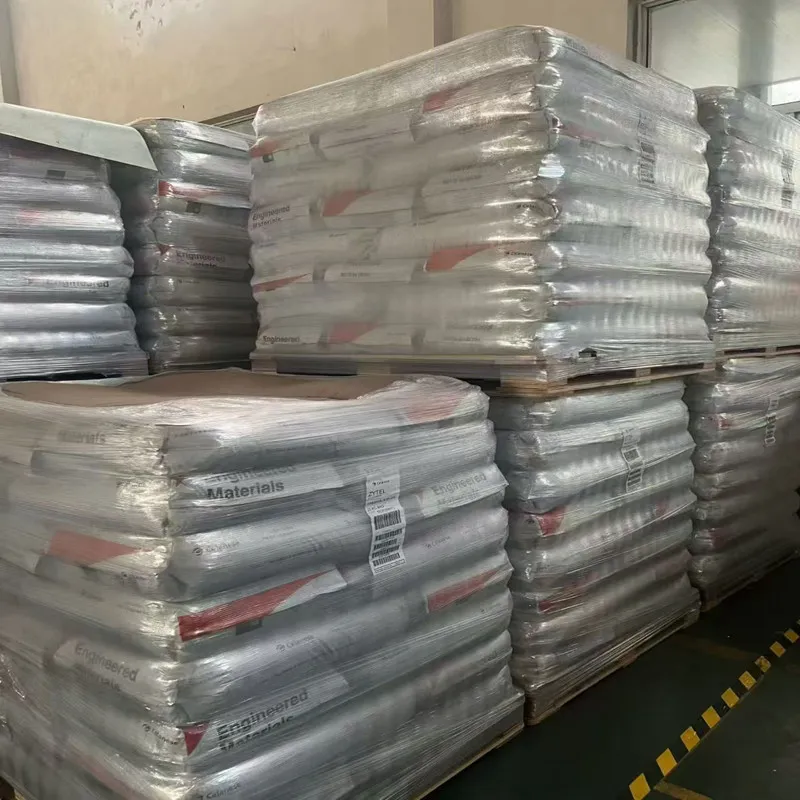

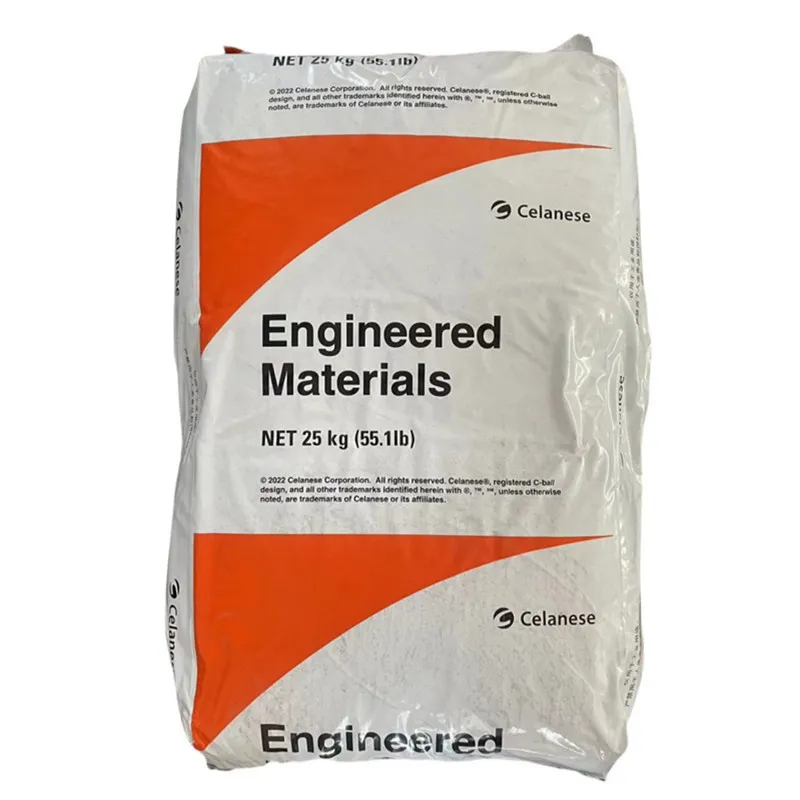

A: It is commonly packaged in 25 kg multi-layer paper bags with polyethylene liners to ensure moisture protection during storage and transport. Other packaging options like bulk bags may be available depending on order volume.Q: What is the lead time for an order, and where do you ship from?
A> Lead times depend on order quantity and current stock levels. We primarily ship from the ports of Shanghai and Ningbo, China, ensuring efficient access to global shipping routes for our customers in North America, Europe, Southeast Asia, and other key markets.
