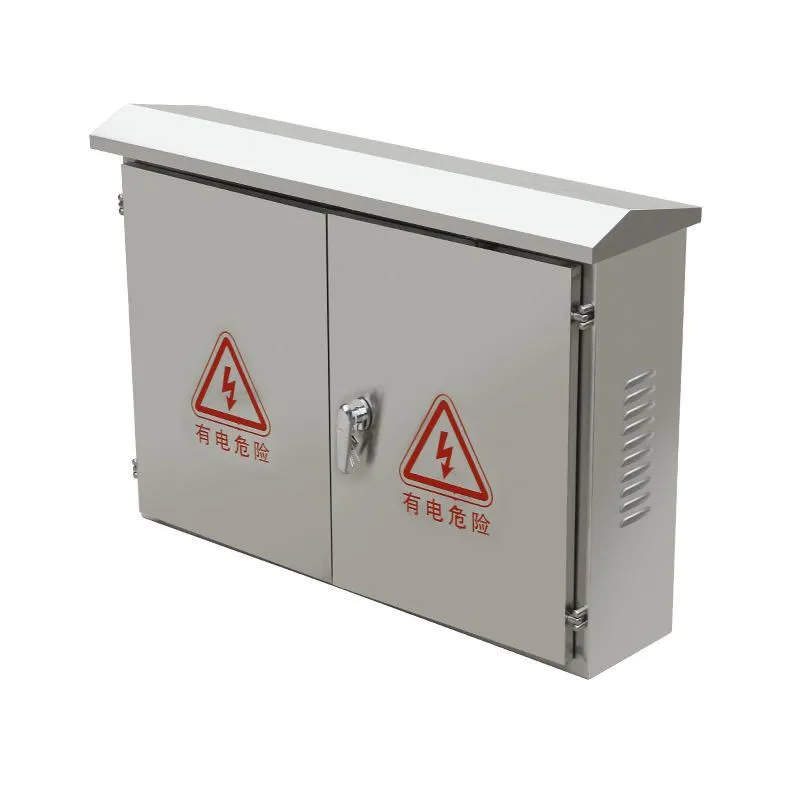

As a professional manufacturer with over a decade of experience in power distribution and control systems, Jinhua Dika Electrical Equipment Co., Ltd. is proud to present our high-performance ATS (Automatic Transfer Switch) Switchgear designed specifically for generator backup applications. Engineered for reliability in demanding environments, this switchgear features a robust IP65-rated enclosure, ensuring complete protection against dust ingress and water jets from any direction. It is the ideal solution for facilities that require seamless and automatic power transfer between the main utility supply and a standby generator, minimizing downtime and protecting critical loads.
Our ATS switchgear is built to provide uninterrupted power supply (UPS) continuity for various commercial, industrial, and infrastructure applications. The core value lies in its intelligent control system, which continuously monitors the primary power source. Upon detecting a failure, such as a blackout, voltage dip, or frequency deviation, the system initiates a safe and sequenced transfer to the backup generator, all without manual intervention. This automation is crucial for data centers, hospitals, telecommunications hubs, manufacturing plants, and water treatment facilities where even a brief power interruption can lead to significant operational and financial losses.
Key Features and Technical Advantages:
- Robust IP65 Enclosure: Constructed from high-grade galvanized steel or aluminum, the enclosure provides superior protection against harsh environmental conditions, including dust, rain, and corrosion, making it suitable for both indoor and outdoor installation.
- Intelligent Microprocessor Controller: At the heart of the system is a programmable logic controller (PLC) or dedicated ATS controller. It offers precise monitoring of voltage, frequency, and phase sequence on both sources.
- Safe and Reliable Switching: Utilizes high-quality, motorized or solenoid-operated changeover switches or circuit breakers with mechanical and electrical interlocks to prevent the dangerous paralleling of the main and backup sources.
- Flexible Configuration and Programming: Parameters such as voltage/frequency thresholds, time delays for transfer and retransfer, engine start/stop signals, and load shedding sequences are fully customizable to match specific project requirements.
- User-Friendly Interface: Features an intuitive control panel with status indicators (LEDs), mode selector switch (Auto/Off/Manual), and an optional backlit LCD or HMI screen for real-time system monitoring, event logging, and parameter adjustment.
- Comprehensive Safety and Protection: Incorporates protections against short-circuit, overload, phase failure, and under/over voltage. The design prioritizes operator safety with clear labeling and secure compartmentalization.
Technical Specifications (Typical Configurations):
| Parameter | Specification / Options |
| Enclosure Protection | IP65 (Dust-tight & Protected against water jets) |
| Rated Operational Current (Ie) | Available from 63A up to 4000A (Customizable) |
| Rated Insulation Voltage (Ui) | 690V / 1000V |
| Number of Poles | 3-Pole or 4-Pole (3P+N) |
| Control Supply Voltage | 24/48VDC, 110VAC, 220VAC (Selectable) |
| Transfer Time (Open Transition) | Typically 1-3 seconds (Programmable) |
| Communication Options | Modbus RTU, Profibus, Ethernet/IP (Optional) |
| Standards Compliance | Designed to meet IEC 60947-6-1 for ATS |
Benefits for Your Business:
- Enhanced Operational Resilience: Guarantees continuous power to critical processes, safeguarding productivity, data integrity, and safety systems.
- Reduced Labor Costs: Eliminates the need for manual generator startup and transfer, allowing for unattended operation.
- Extended Equipment Lifespan: Proper sequencing and timing protect both the generator and connected loads from harmful inrush currents and improper switching.
- Remote Monitoring Capability: Optional communication modules enable integration into Building Management Systems (BMS) or SCADA for centralized oversight.
- Simplified Maintenance: Clear diagnostics and event history facilitate troubleshooting and preventive maintenance scheduling.
Backed by Jinhua Dika's commitment to quality, evidenced by our adherence to international management standards, this ATS switchgear is a product of rigorous design and testing. Our company serves a global market, exporting to North America, Europe, Southeast Asia, and beyond, demonstrating wide acceptance and reliability. With flexible shipment options from major Chinese ports like Shanghai and Ningbo, we ensure timely delivery to support your project timelines. We invite you to contact us with your specific current rating, voltage, and functional requirements. Our engineering team is ready to provide a tailored solution that delivers dependable backup power transfer for your critical application.
Frequently Asked Questions (FAQ):
-
Q: What is the main difference between an ATS and a manual transfer switch?
A: An Automatic Transfer Switch (ATS) performs the transfer from main to backup power automatically without any human action, typically within seconds of a failure. A manual transfer switch requires an operator to be physically present to throw the switch, leading to longer downtime. -
Q: Can this ATS be used for both single-phase and three-phase generator systems?
A: Our standard ATS switchgear is primarily designed for three-phase systems, which are common in commercial and industrial backup applications. Solutions for critical single-phase loads are available upon request. -
Q: How does the IP65 rating benefit my installation?
A: The IP65 rating means the enclosure is completely dust-tight and can withstand low-pressure water jets from any direction. This allows for installation in outdoor locations, dusty industrial environments, or wash-down areas without the need for an additional protective shelter. -
Q: What time delays are configurable, and why are they important?
A> Key programmable delays include: Engine Start Delay (time after utility failure before signaling the generator to start), Transfer to Generator Delay (allows generator to stabilize), and Retransfer to Utility Delay (ensures utility is stable before switching back). These protect equipment and ensure smooth operation. -
Q: Is remote monitoring and control possible with this ATS?
A: Yes. We offer optional communication protocol modules (e.g., Modbus) that allow the ATS status, alarms, and parameters to be integrated into a central monitoring station, SCADA, or BMS for remote oversight and control. -
Q: What maintenance does the ATS switchgear require?
A: Maintenance is minimal but crucial. It typically involves periodic visual inspection, checking electrical connections for tightness, verifying control settings, and exercising the transfer mechanism as recommended by the manufacturer. The controller often provides maintenance reminders. -
Q: Can you provide custom configurations for specific generator brands or paralleling systems?
A: Absolutely. As a manufacturer, we specialize in custom-engineered solutions. We can design the ATS control logic to interface with specific generator controllers, synchronizing panels, or complex paralleling switchgear systems. -
Q: What is the typical lead time for a custom-configured ATS panel?
A: Lead time varies based on complexity and current ratings. Standard configurations may have shorter lead times, while fully customized solutions require detailed engineering. We provide accurate timelines upon receipt of your detailed specifications.
