【Product Overview】

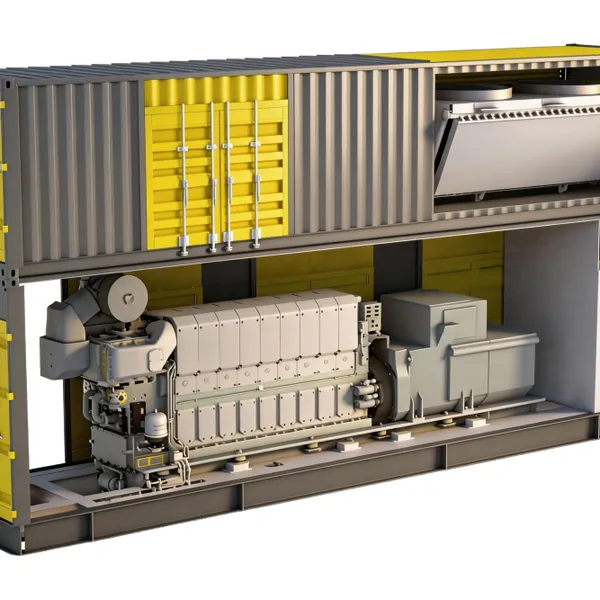

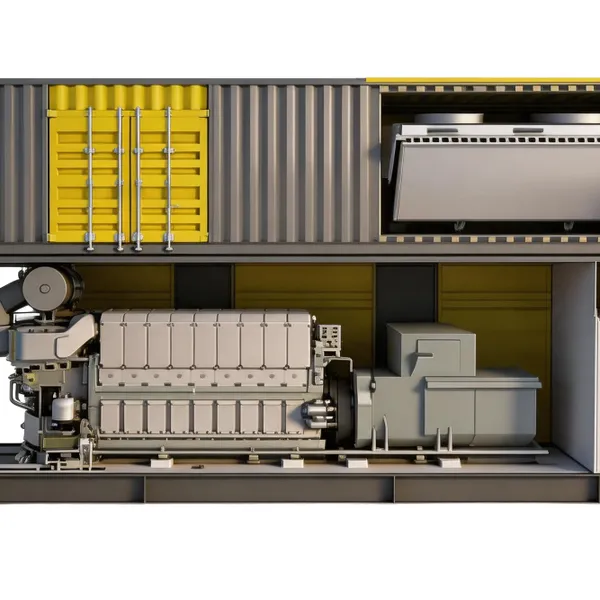

SP2000 “Stack Power” series is a 2000kW-class stacked 40ft containerized generator set. With compact structure, small footprint and easy transportation, it delivers 1880kWe rated power, supporting 50/60Hz and 6.3kV/10.5kV/13.8kV high-voltage output. Designed for 20-year long service life and 24/7 heavy-duty continuous operation, it is widely used in mining plants, industrial parks, overseas power projects and generator rental business.
【Key Specifications】
Rated Power: 1880kWe
Engine Power: 1980kW
Rated Speed: 900rpm (60Hz) / 1000rpm (50Hz)
Generator Output: 2350kVA (cosφ=0.8), 2088kVA (cosφ=0.9)
Rated Voltage: 6300V / 10500V / 13800V
Rated Frequency: 50Hz / 60Hz
Structure: Double-layer 40ft standard container (1AAA)
Dimension: Upper 12912×2438×2896mm; Lower 12912×2438×2896mm
Weight: Upper 10,000kg; Lower 45,000kg
【System Configuration】
Fuel System – Compatible with diesel, heavy oil and multi-fuel. Equipped with high-pressure fuel pump, safety filter and double-wall high-pressure pipe, ensuring stable fuel supply, high efficiency and low emission for long-term operation.
Lubrication System – Wet oil sump design with pre-lubrication and forced circulation. Multi-protection for low oil pressure, high oil temperature and low oil level, ensuring reliability under heavy load.
Air Intake & Exhaust – Air filter + turbocharger + intercooler for clean, cool and dense intake. High-temperature exhaust manifold + industrial silencer reduce noise and emission. Supports SCR/DPF upgrade for stricter emission standards.
Cooling System – Dual-circuit cooling (high/low temp) with jacket water preheating unit. Radiator + heat exchanger for efficient heat dissipation. Protection for high temp, low water level and low flow.
Starting System – Air motor start with built-in high-pressure air bottle, providing start and control air.
Control System – PLC + dedicated controller with touch screen. Real-time monitoring of speed, voltage, current and frequency. Complete protection against overspeed, overload, short circuit and overheating. Supports remote monitoring and data transmission.
【Product Advantages】
Compact Stacked Container Design – Small footprint, lower transport cost, shorter on-site installation time.
High Efficiency & Energy Saving – Advanced heat exchanger for optimal cooling and low energy consumption.
Harsh Environment Adaptability – Stable performance under high temperature and high altitude conditions.
Flexible Customization – Optional well-known brand engines and generators.
-
Long Service Life – 20-year design life, reliable 24/7 heavy-duty operation.
Modular & Scalable – Multiple units can be freely combined for large-scale power stations.
【Applications】
Mining main/backup power station
Industrial park centralized power supply
Overseas mining & oilfield power projects
Large construction temporary power & generator rental
Remote area independent power plant
【After-Sales Service】
Pre-shipment full testing & commissioning
Complete technical documents & operation training
Free technical guidance during warranty period, lifelong technical support
On-site installation, commissioning & maintenance service available
