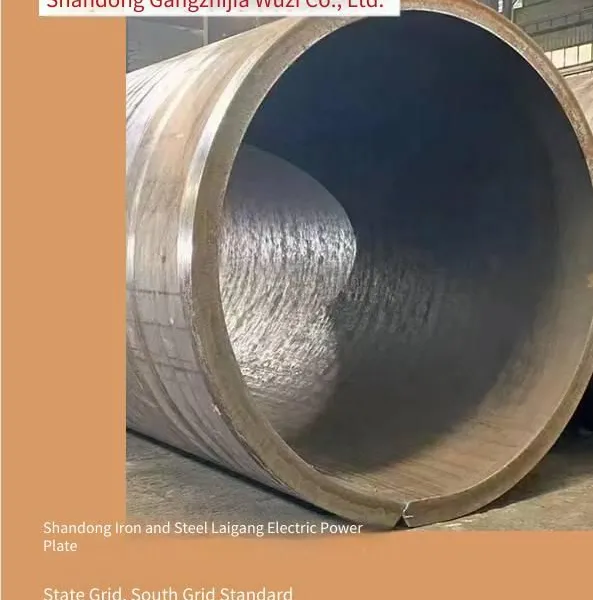

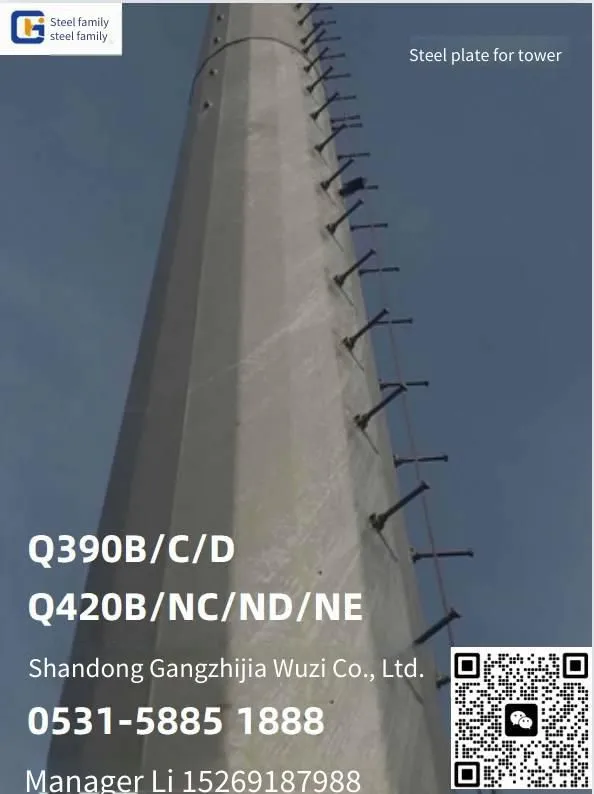

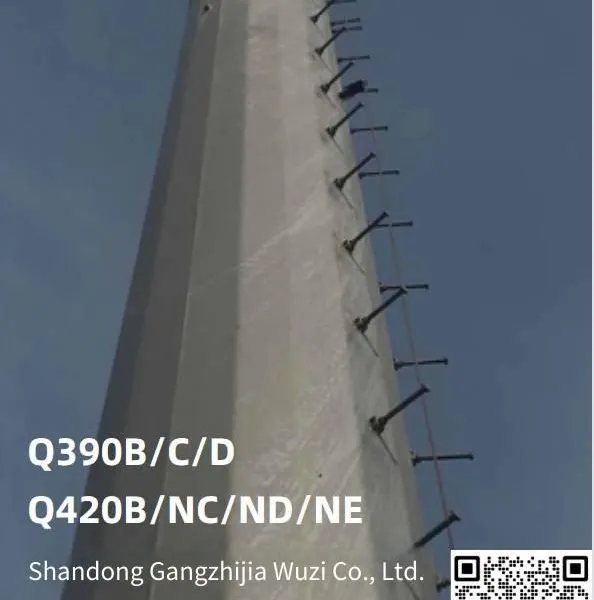

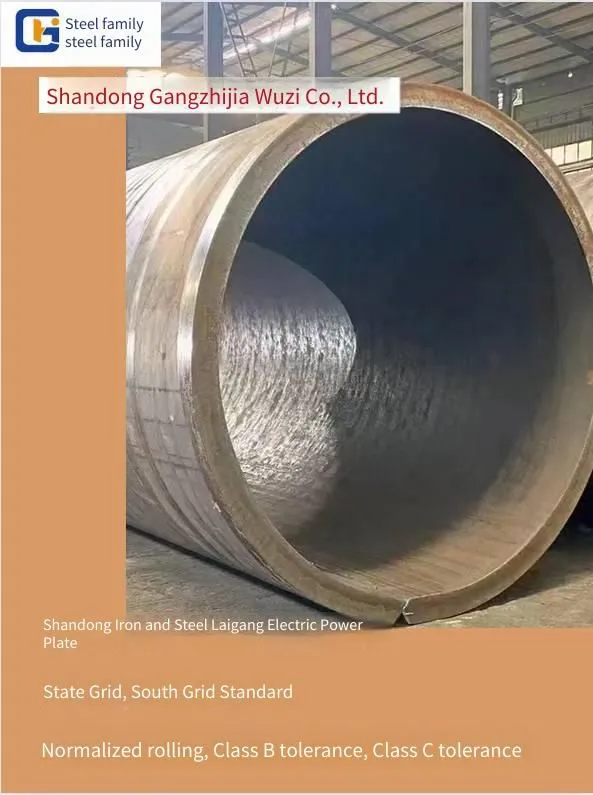

Help CenterSteel Plates for Power Transmission Towers, Including High-strength Steels Such as Q420b, Q420nc, Q420ne for State Grid and China Southern Power Grid. High-quality Products From Large Manufacturers Like Shandong Steel and Laiwu Steel With Guaranteed Quali
Related Products
-
European Standard S355jr S355j2 Hot Rolled Coils, Genuine Products With Quality Assurance Certificates, Meeting Export RequirementsUS$ 492.31MOQ: 1 Ton -
Genuine and Second - Grade Products of Nm400, Nm450, Nm500 From Large Manufacturers Such as Shandong Steel, Laigang, and Taiyuan Iron and SteelNegotiableMOQ: 0
-
Can Represent in Tendering for Low - Price Bundled Genuine Second - Grade Hot - Rolled Coils of Various Materials From Different Steel MillsUS$ 392.31 - 400MOQ: 5 Tons
-
Ultra-wide and Ultra-long Steel Plates in Various Materials Including Plain Carbon, Low Alloy, High Strength, and Wear-resistant. Spot Goods and Futures for Custom Rolling Are Available.NegotiableMOQ: 0 Ton
-
Surfacing Wear-resistant Plates, in Stock, Customizable Specifications, Can be Cut, Processed, Bent, and Rolled Into Circles, for Mining MachineryUS$ 153.85MOQ: 1 Sheet
Q420 is a low-alloy high-strength structural steel, and the implementation standard is GB1591-2008

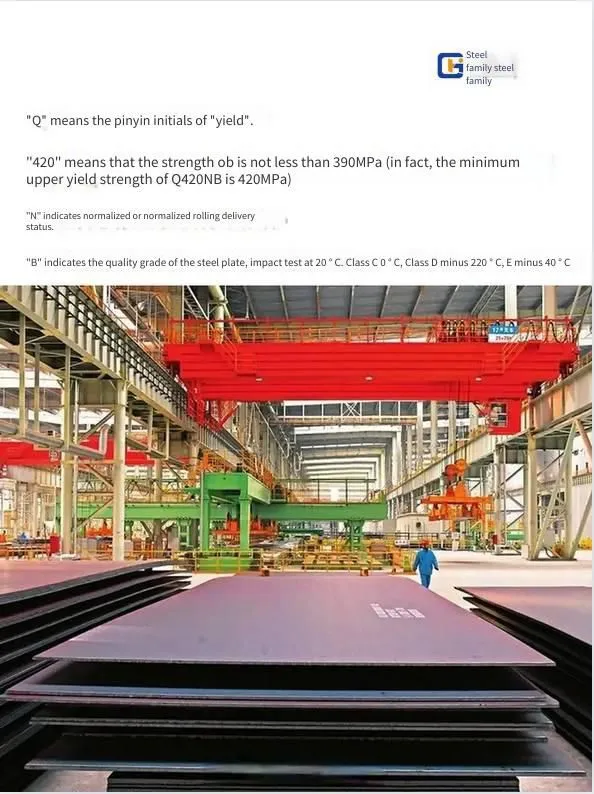

The grade of the steel consists of three parts: the Chinese Pinyin letter representing the yield strength, the yield strength value, and the quality grade symbol. For example:
Q420C. Among them:
Q - The first letter of the Chinese Pinyin for "yield" of the steel's yield strength;
420 - The yield strength value, with the unit of MPa;
C - The quality grade is Grade C (the grades are divided into A, B, C, D, E).
When the buyer requires the steel plate to have through-thickness properties, the symbol representing the through-thickness (Z-direction) performance level is added after the above-specified grade. For example: Q420CZ15.
Grade |
C |
Mn |
Si |
P |
S |
V |
Nb |
Ti |
Al |
Cr |
Ni |
A |
≦0.20 |
1.00～1.70 |
≦0.55 |
≦0.045 |
≦0.045 |
0.02～0.20 |
0.015～0.060 |
0.02～0.20 |
- |
≦0.40 |
≦0.70 |
B |
≦0.20 |
1.00～1.70 |
≦0.55 |
≦0.040 |
≦0.040 |
0.02～0.20 |
0.015～0.060 |
0.02～0.20 |
- |
≦0.40 |
≦0.70 |
C |
≦0.20 |
1.00～1.70 |
≦0.55 |
≦0.035 |
≦0.035 |
0.02～0.20 |
0.015～0.060 |
0.02～0.20 |
≧0.015 |
≦0.40 |
≦0.70 |
D |
≦0.20 |
1.00～1.70 |
≦0.55 |
≦0.030 |
≦0.030 |
0.02～0.20 |
0.015～0.060 |
0.02～0.20 |
≧0.015 |
≦0.40 |
≦0.70 |
E |
≦0.20 |
1.00～1.70 |
≦0.55 |
≦0.025 |
≦0.025 |
0.02～0.20 |
0.015～0.060 |
0.02～0.20 |
≧0.015 |
≦0.40 |
≦0.70 |
[Tensile strength] (σb/MPa)
520～680
[Elongation] (δ5/%)
Grade |
δ5/% |
A |
≧18 |
B |
≧18 |
C |
≧19 |
D |
≧19 |
E |
≧19 |
[Yield point] (σs/MPa)
Thickness (diameter, side length)/mm |
≦16 |
>16～35 |
>35～50 |
>50～100 |
σs/MPa |
≧420 |
≧400 |
≧380 |
≧360 |
[Impact absorption energy] (Akv (longitudinal)/J)
Grade | Temperature |
+20℃ |
0℃ |
-20℃ |
-40℃ |
A |
- |
- |
- |
- |
B |
≧34 |
- |
- |
- |
C |
- |
≧34 |
- |
- |
D |
- |
- |
≧34 |
- |
E |
- |
- |
- |
≧27 |
Q420 has high strength and good fatigue resistance; high toughness and low brittle transition temperature; good cold forming and welding properties; good corrosion resistance and certain wear resistance. It has high strength, especially in the normalized or normalized and tempered states, it has high comprehensive mechanical properties.
Application:
Large ships, bridges, power station equipment, medium and high pressure boiler parts, locomotives and vehicles, overweight machinery, mining machinery, and other large welded structural parts.
Welcome to call if you have any needs or want to consult.
