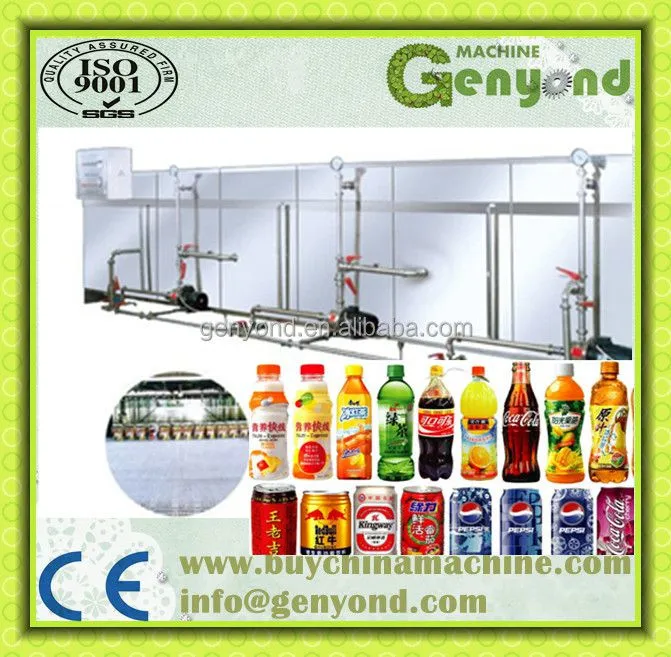

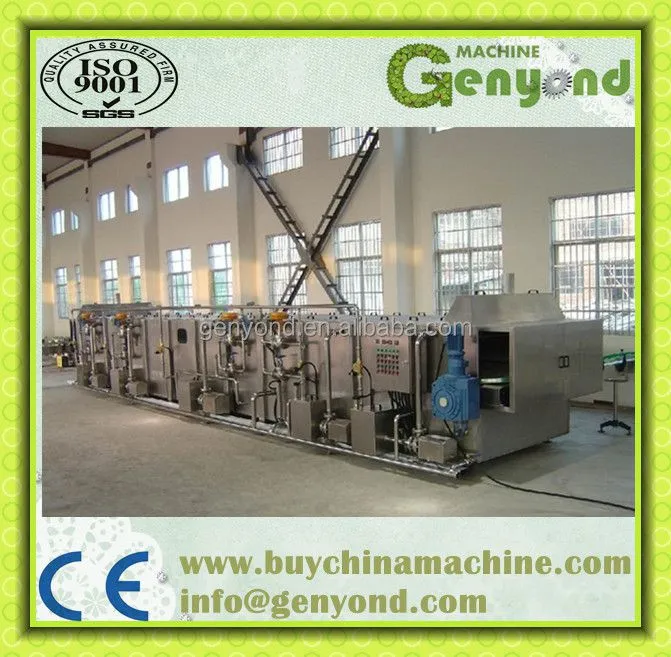

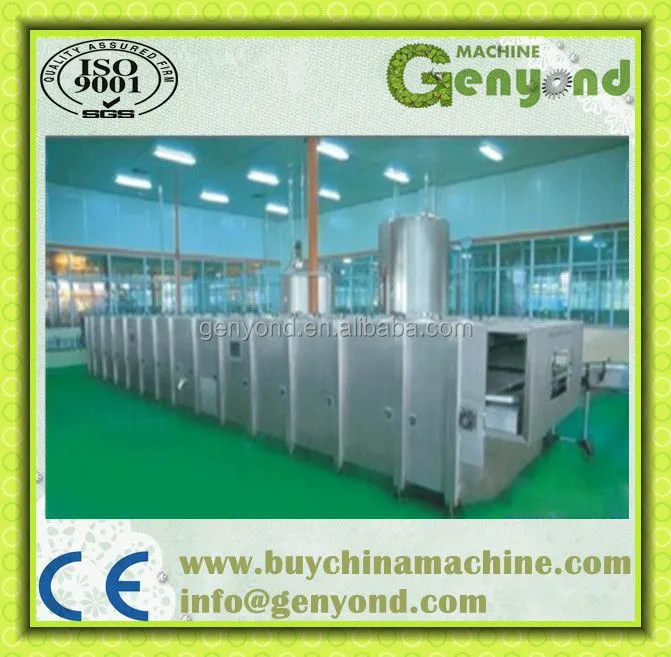

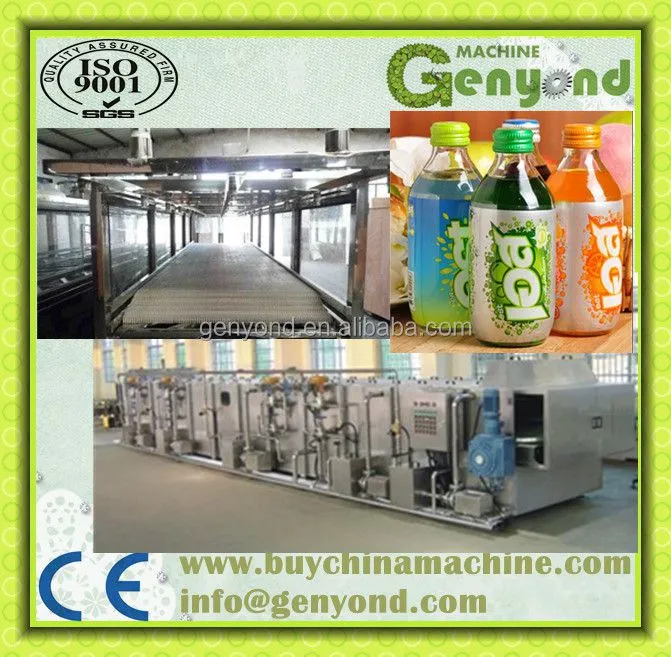

Help CenterSpraying Cooling Tunnel for Bottled Juice Pasteurization and Cooling
Related Products
-
Hot Sale Single/Dual/Three Channel Fruit Pulper Machine Fruit Pulp Juice Making Machine Mango Pulp Making Machine Pulper PriceUS$ 2600.00 - 3000.00MOQ: 1 Set -
Mango Tomato Pulp/paste/sauce/purees Making MachineUS$ 7500.00 - 8000.00MOQ: 1 Set
-
Complete Jelly Manufacturing EquipmentUS$ 8900.00MOQ: 1 Set
-
Beer Fermentation Tank for Berwery/ FactoryUS$ 4000.00MOQ: 1 Set
-
Industry Beetroot Sugar Processing PlantUS$ 500000.00MOQ: 1 Set
Machine Introduction
Spraying Water Cooling Tunnel can reduce the temperature of hot filling drinks to 35-40 degree or increase the temperature.
Machine Features
1. The machine can applicable to all types non-carbonated material such as tea, juice, sauce.
2. The chain plate apply anti-friction and high temperature resistance engineering plastic.
3. Apply advanced PLC controller to assure all action precision.
4. The conveyor is frequency controlled.
5. All spray tubes are made of stainless steel and spray evenly.
6. All spray nozzles are made of engineering plastic.
7. The catchment flume is made of stainless steel and equipped with a level alarm device.
8. The spray-cooling tunnel has a spray cooling recycling water pump.
9. The machine body is made of SUS304 stainless steel and can run stably and smoothly.
Machine Technocial Patameters
Model |
GY-3000 |
GY-6000 |
GY-8000 |
GY-12000 |
GY-18000 |
|
Maximum sterilize temperature |
100°C |
|||||
Line speed of the conveyer |
110-553mm/min,stepless speeding |
|||||
Heating steam pressure |
0.4MPa |
|||||
Heating water consumption (m³) |
21 |
40 |
55 |
80 |
120 |
|
Total power (kw) |
9.6 |
10.6 |
13.6 |
16.5 |
25 |
|
External dimension(mm) |
Length |
6500 |
14000 |
18880 |
21880 |
31000 |
Width |
2250 |
2750 |
||||
Height |
1735 |
1735 |
||||
Weight (kg) |
3000 |
5000 |
6500 |
8500 |
12000 |
|
Tunnel area (m2) |
13.5 |
26.5 |
34 |
51 |
76 |
|
This machine can be designed according to the customer’s requirements.
