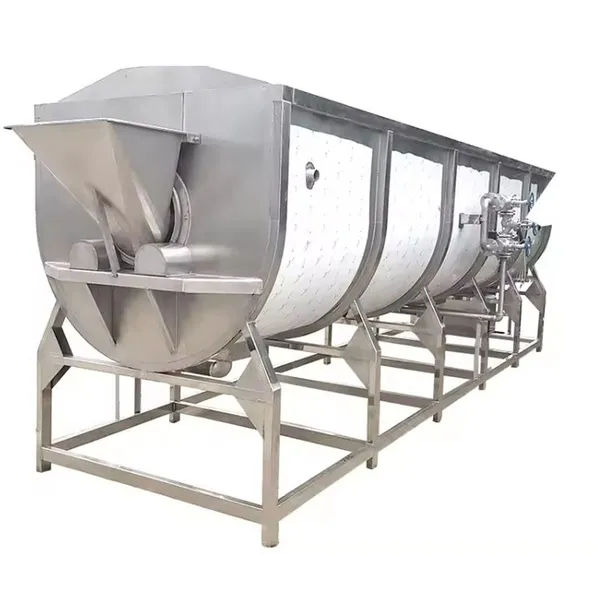

Stainless Steel Nuts Hot Water Blancher Potato Sweet Corn Mangoes Kiwi Chips Boiling Blanching Machine for Jute Leaves
US$ 500000 - 800000
MOQ: 1 Set
Key Specifications
Get Latest Price
brand name:
Genyond
dimension(l*w*h):
customized
place of origin:
Shanghai, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Industrial Conveyor Belt Air Bubble Hot Water Date Mango Blanching Tomato Avocado Fruit Strawberry Washing MachineUS$ 500000 - 800000MOQ: 1 Set -
Automatic Vegetable Fruit Processing Line Fruit Vegetable Steam Blanching Machine Tomato Peeling Blanching Machine Optical SorterUS$ 500000 - 800000MOQ: 1 Set
-
Full Automatic Ginger Powder Production Line Turmeric Powder Making Machine Ginger Processing Grind Mill Machinery PriceUS$ 500000 - 800000MOQ: 1 Set
-
Industrial High Efficiency Automatic Potato Chips Fruit Blancher/ Vegetable Steam Blanching Machine for SaleUS$ 500000 - 800000MOQ: 1 Set
-
Best Selling Stainless Steel Vacuum Candied Peaches Cooking Kettle Sugar Dipping Machine Vacuum Cook Sugar Soak Vacuum CookingUS$ 5000 - 8000MOQ: 1 Set
brand name
Genyond
dimension(l*w*h)
customized
place of origin
Shanghai, China
automatic grade
Automatic
Capacity
1~60 Tons, 1-60ton
key machines
Fruit & Vegetable juicer machine, Food Sterilizer, Meat Mincer, bread making machine, Fruit & Vegetable peeling machine, Pasteurizer, Sausage Stuffer, Emulsifier, Fryer, Mixer, Heat Exchanger, packing machine, bottle wash machine
product type
Vegetables, Fruit
Name
dehydrated fruit
Function
Multifunctional Fruit production line
usage
Food Industry Equipment
Keywords
Vegetable Fruits Cleaning Washing Line
Certification
CE ISO
After Warranty Service
Video technical support, Online support, Spare parts,
Application
canned pineapple
Advantage
Easy Operation High Efficiency
Finished Products
dehydrated fruit
Condition
New
Year
2023
Weight
500 KG
System Overview

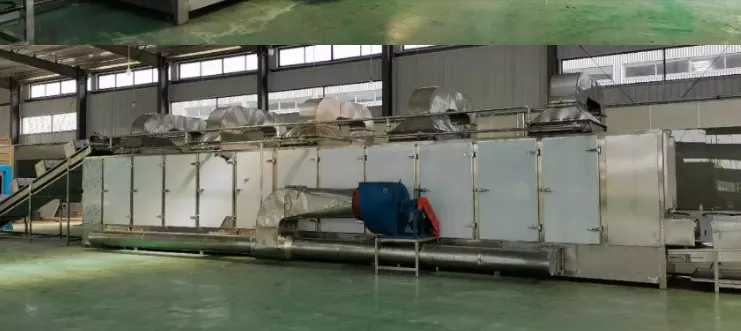

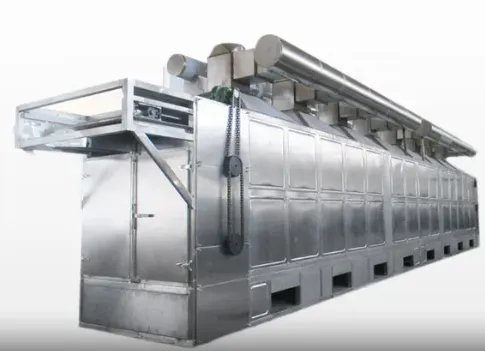

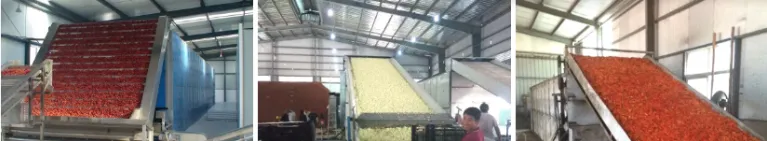

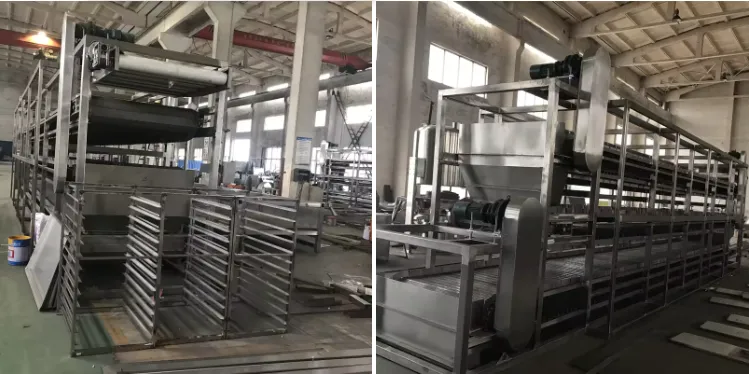

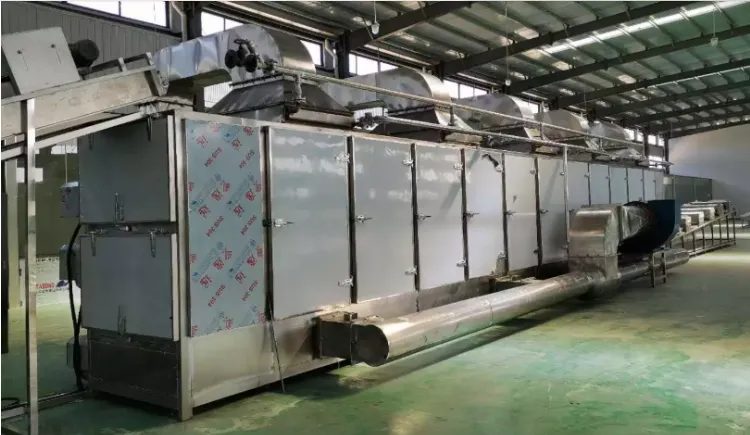

Continuous belt Conveyor Tunnel drying machine

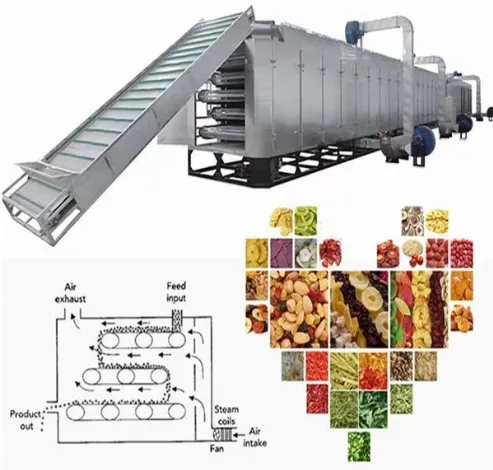

The raw material after washed should be distributed on the conveyer belt through suitable mechanism such as star distributor, swing conveyor, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to down or from down to up. In this way the raw material can be dried uniformly
Description
Application Scope

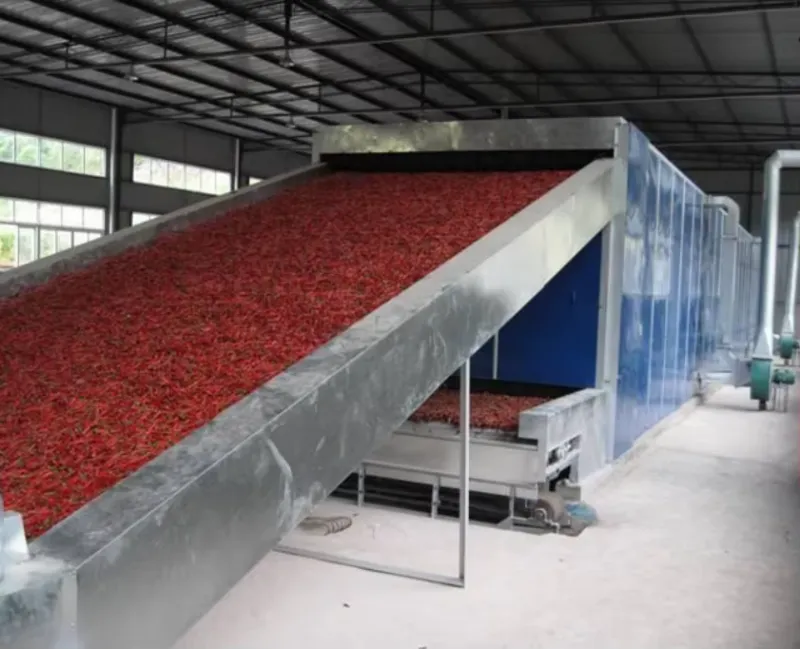

De-watering vegetable, chilli, Cassava , particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber,
small wooden product, plastic product, aging and solidification for the electronic component and device
Specification
| Model ltem | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 |
| Drying Unit(Qty) | 4 | 5 | 4 | 5 | 4 | 5 | 10 |
| Mesh Belt(m) | 1.2 | 1.2 | 1.6 | 1.6 | 2 | ||
| Drying Length(m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 |
| Material Thickness(mm) | 10-80 | ||||||
| Drying Temperature(oC) | 50-140 | ||||||
| Steam Pressure(MPa) | 0.2-0.8 | ||||||
| Steam Consumption(kg/h) | 120-300 | 150-375 | 150-400 | 180-500 | 180-500 | 225-600 | 450-1200 |
| Drying Time (h) | 0.2-1.2 | 1.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 |
| Evaporation Capacity(kg/h2o/h) | 60-160 | 80-200 | 85-220 | 100-260 | 100-260 | 120-300 | 240-600 |
| Total Power (kw) | 11.4 | 13.6 | 14.6 | 18.7 | 19.7 | 24.5 | 51 |
| Total Weight (kg) | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 14000 |
Advantages
