Milk Dairy Margarine Ghee Line Butter Maker Cutter Press Liquid Storage Tank Chiller Pasteurizer Curd Draining Table Cheese Vat
US$ 39900.00
≥1 Set
Key Specifications
Get Latest Price
video outgoing-inspection:
Provided
machinery test report:
Provided
core components:
Bearing, Motor, Pump
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Complete Margarine Vegetable Butter Production Line Goat Cow Camel Milk Powder Making Processing Production Line Plant MachineUS$ 39900.00MOQ: 1 Set -
Full Automatic Margarine Ghee Shortening Kneading Making Machines Processing Plant Production Line From Vegetable OilUS$ 39900.00MOQ: 1 Set
-
Milk Cooler Margarine Cheese Pres 100 500 Liters Dry Mozzarella Cheddar Cheese Making Processing Vat Production Line Sterilizer, Pasteurizer, UHTUS$ 39900.00MOQ: 1 Set
-
Ice Cream Machines Filling Chiller Production Line Ice-cream Maker Led Cup Toy Silicone Mold Stick Dispenser Ice Cream MachineUS$ 39900.00MOQ: 1 Set
-
Automatic Industrial Quick Frozen Ice Cream Factory Extruder Tunnel Production Line Manufacture Ice Cream Extrusion MachineUS$ 39900.00MOQ: 1 Set
video outgoing-inspection
Provided
machinery test report
Provided
core components
Bearing, Motor, Pump
place of origin
Shanghai, China
brand name
Genyond
voltage
380/440V
power(w)
120
weight
9000 KG
dimension(l*w*h)
25000*15000*2800
warranty
1 Year
key selling points
High Productivity
Product Keywords
milk processing plant
Material
304 Stainless Steel
Function
milk processing
Capacity
20-5000L/H
Final product
UHT/pasteurized/flavoured milk/yogurt
End product
ghee, cheese margarine
Applicable Industries
Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops
Showroom Location
None
Marketing Type
Hot Product 2019
Warranty of core components
1 Year
Condition
New
Specification
| Genyond® Plus Series | 161 AF | 16 2 AF | 164 AF | 181 AF | 182 AF | 184 AF |
| N OM I NAL CAPACITY - PU FF PASTRY MARGAR I N E AT - 20 °C [ KG / H] | NA | 1 , 150 | 2 , 300 | NA | 1 , 500 | 3 , 000 |
| N OM I NAL CAPACITY - TAB LE MARGAR I N E AT - 20 °C [ KG / H] | 1 , 100 | 2 , 200 | 4,400 | 1 , 500 | 3 , 000 | 6 , 000 |
| N OM I NAL CAPACITY - SHORTE N I N G AT - 20 °C [ KG / H] | 1 , 500 | 3 , 000 | 6 , 000 | 2 , 000 | 4 , 000 | 8 , 000 |
| N U M B E R OF R E FR I G E RANT CI RCU I TS | 1 | 2 | 4 | 1 | 2 | 4 |
| N U M B E R OF TU B ES PE R R E FR I G E RANT CI RCU I T | 1 | 1 | 1 | 1 | 1 | 1 |
| M OTOR S FOR PU FF PASTRY MARGAR I N E [ k W] | NA | 22 +30 | 18.5 +22 + 30 +37 | NA | 37 +45 | 30 + 37 +45 +55 |
| M OTOR S FOR TAB LE MARGAR I N E [ k W] | 18.5 | 2 x18.5 | 18.5+18.5+22+22 | 30 | 22 + 30 | 22 +30 +37 +45 |
| M OTOR S FOR SHORTE N I N G [ k W] | 18.5 | 2 x18.5 | 18.5+18.5+22x 22 | 30 | 22 + 30 | 22 + 22 + 30 + 30 |
| N U M B E R OF G EAR B OXES | 1 | 2 | 4 | 1 | 2 | 4 |
| COOLI N G SU R FACE PE R TU B E [ M 2 ] | 0 .61 | 0 .61 | 0 .61 | 0 .84 | 0.84 | 0.84 |
| AN N U LAR SPACE [ M M] | 10 | 10 | 10 | 10 | 10 | 10 |
| CAPACITY AT - 20 °C [k W] | 50 | 100 | 200 | 80 | 160 | 320 |
| MAX. WOR KI N G PR ESSU R E - M E DIA SI DE [ BAR] | 20 | 20 | 20 | 20 | 20 | 20 |
| MAX. WOR KI N G PR ESSU R E - PRODU CT SI DE [ BAR] | 120 | 120 | 120 | 120 | 120 | 120 |
| M I N. WOR KI N G TE M PE RATU R E [ C°] | -29 | -29 | -29 | -29 | -29 | -29 |
| CH I LLI N G TU B E DIAM ETE R / LE N GTH [ M M] | 160 / 1 ,200 | 160 / 1 , 200 | 160 / 1 , 200 | 160 /1 ,600 | 160 /1 ,600 | 160 /1 ,600 |
| PRODU CT VOLU M E PE R TU B E [ L]* | 8.6 | 8.6 | 8.6 | 10.5 | 10.5 | 10.5 |
| PRODU CT PI PE I N / OUT [ M M] | DN 50 | DN 50 | DN 50 | DN 50 | DN 50 | DN 50 |
| ROWS OF SCRAPE R S | 4 | 4 | 4 | 4 | 4 | 4 |
| N OM I NAL SCRAPE R ROTOR SPE E D [ R PM]* | 340 | 340 | 340 | 240 | 240 | 240 |
| WATE R ATTE M PE RATI ON CAPACITY [ k W]** |
6 | 2 x6 | 4 x6 | 6 | 2 x6 | 4 x6 |
| WATE R ATTE M PE RATI ON VOLU M E [ L]** |
30 | 30 | 60 | 30 | 30 | 60 |
| WATE R CI RCU LATI ON PU M P [ k W]** | 0 .3 | 0 .3 | 0 .3 | 0 .3 | 0 .3 | 0 .3 |
Product Description
Product DescriptionProcess:

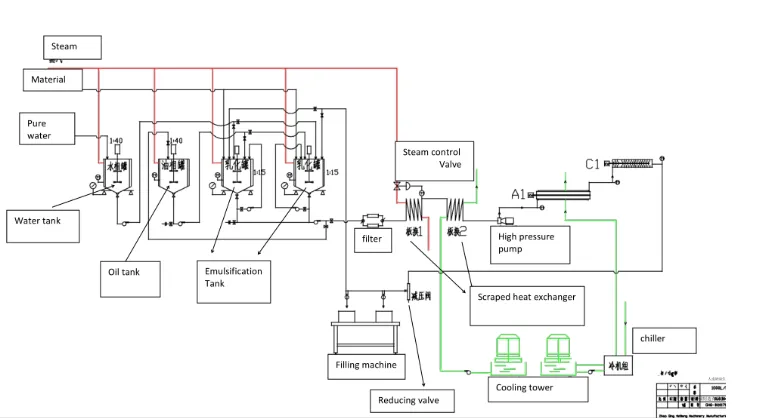

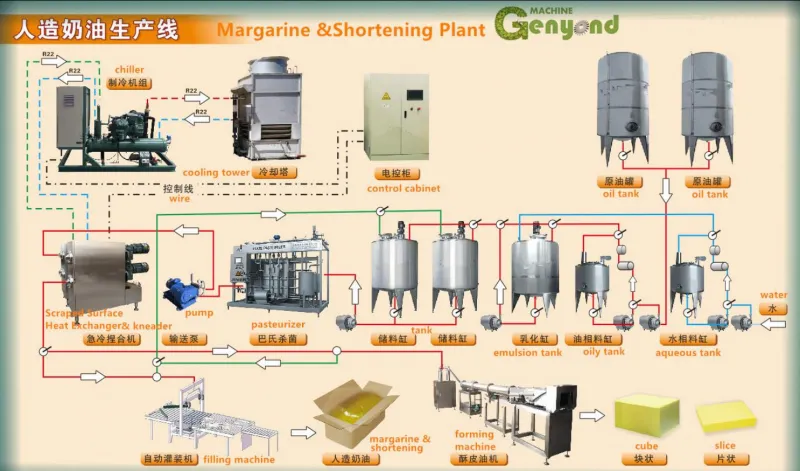

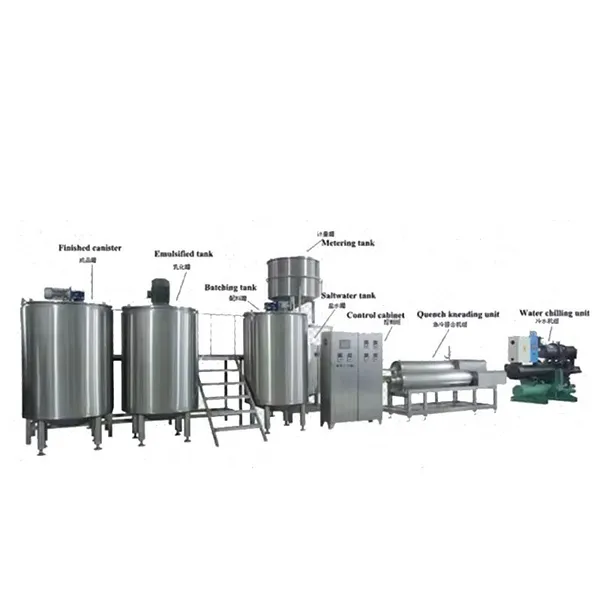

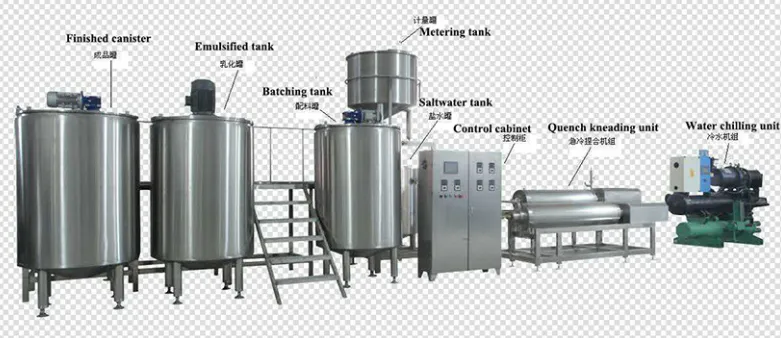

Measuring---Ingredients Configuration---Filtration---Emulsification---Fast cooling---Kneading---Filling&Packaging

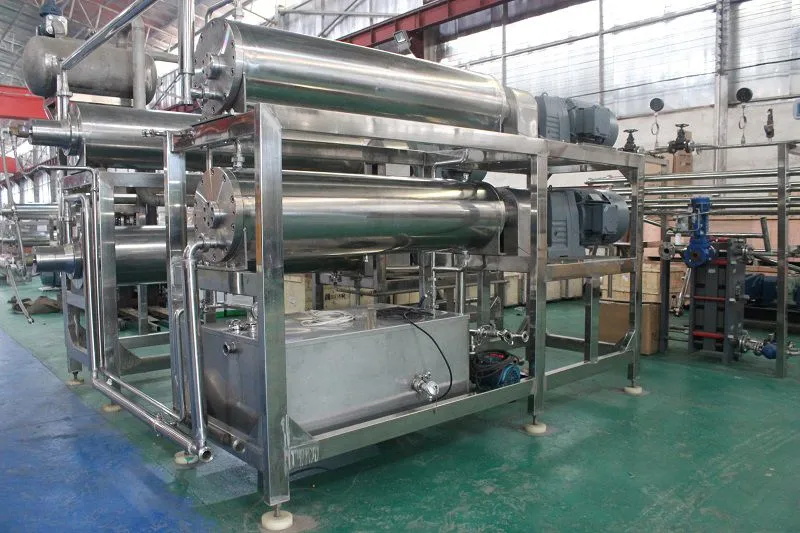

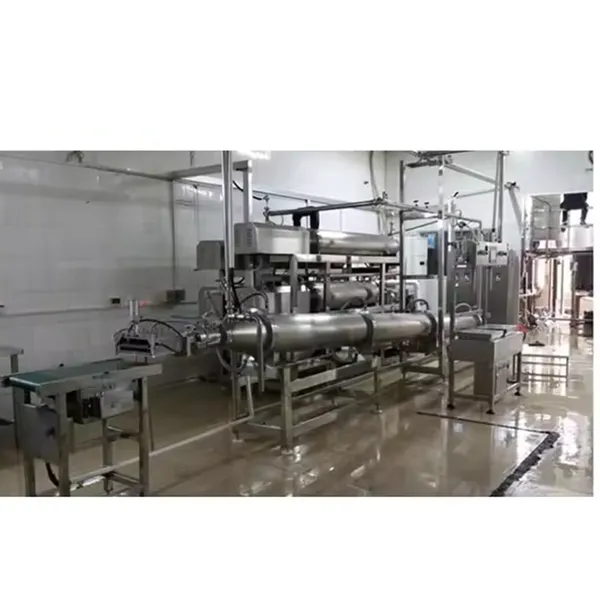

This is basically Horizontal stainless steel (S.S) tube with jacket made up of metal steel (M.S). The shaft is rotate inside this tube with high revolution. In this metal tube, the ammonia is expending which give chilling effect to the stainless steel tube present inside.
The space between the shaft and tube is relatively small, the margarine emulsion is pumped down to this space. The shaft is fitted with scraper blades and the emulsion is continuously spread onto the chilled wall of inside stainless tube and scraped from it through the scraper. The scraper reduced the crystal present in the emulsion and gives foaming property to this emulsion. During this process the temperature is about 18° to 22° C and then this emulsion is transfer to next level (crystalizer).
The space between the shaft and tube is relatively small, the margarine emulsion is pumped down to this space. The shaft is fitted with scraper blades and the emulsion is continuously spread onto the chilled wall of inside stainless tube and scraped from it through the scraper. The scraper reduced the crystal present in the emulsion and gives foaming property to this emulsion. During this process the temperature is about 18° to 22° C and then this emulsion is transfer to next level (crystalizer).
related products :
Heat Exchanger Cooling Machine Palm Oil Animal Oil Shortening Margarine Processing Machine Production Line /Edible Palm Oil Animal Oil Shortening Margarine Cheese Complete Making Plant Equipment Production Line /Margarine Slice Machine / Sheet Shortening Equipment /Margarine Production Line /Margarine Emulsifier Mixer/Phaco Emulsifier/Homogenizer Machine /Margarine Kneading Machine /50g Dairy Mayonnaise Aseptic Glycerin Packaging Machine for Margarine /Emulsifier Machine Vacuum Emulsifying Mixer for to Make Shampoo Food Mixer Margarine Making Machines /Cold Pressed Canola Oil Extract and Degumming Bleaching Process Line /China Supply Palm Fresh Fruit Oil Pressing Machine and Palm Fruit Oil Production Line /Rapeseed Oil Processing Equipment Production Line /Canola Oil Crushing Press Refinery Plant Production Line/Palm Oil Making Machine Palm Oil Processing Machine / High Viscosity Kneading Equipment Machinery /vegetable oil margarine production line/Milk Powder Production Line/Liquid palm oil margarine making machine shortening production line/Sheet block plate Margarine shortening making machine/Margarine Production Line with palm oil/High Quality Salted/Unsalted Butter milk/ Cheese Margarine Production/Resting Tube in Sheet Margarine Production Line/GYC Cheap Factory Price edible oil margarine making machine/High Quality Milk Type Butter Blends Milk Margarine Production line/margarine cheese complete plant production line/Small Pasteurized Milk Production Line with EquipmentUnits/Saladdressing/process line/Mayonnaise production line...
packing 1.We can load container at:Qingdao,Shanghai, Ningbo,Tianjin, Guangzhou, etc. 2.We provide shipping methods:Courier service,Air transport,Sea Transport 3.Can accept order:Full container cargo load,Less container load 4.Delivery term :EXW,FOB,CIF,CNF, Door to Door etc. We always choose the most economical and reliable shipping company to make sure you receive the goods in time. The BL and tracking number will be provided to you once the consignment is shipped. Our Services Training and Use 1.We will supply with the machine operation manual in English version for installing and operation. 2.We will make training video for client’s reference. 3.Customer can come to our factory for free training. Warranty and After sales service 1.Our warranty is within 12 months from the date when client receive the material. 2.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time. 3.When some problems can’t be solved by customers, our engineer can go to door to support.
