Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement

Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement thumbnail-1
Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement thumbnail-2
Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement thumbnail-3
Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement thumbnail-4
Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement thumbnail-5
Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement photo-1
Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement photo-2
Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement photo-3
Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement photo-4
Micro-expansion Cement Grouting Material, Grouting for Secondary Concrete Pouring, Non-shrinkage Grouting Material for Beam and Column Reinforcement photo-5
US$ 107.69 1 - 9 Ton
US$ 104.62 ≥10 Ton
Key Specifications
Get Latest Price
Main Markets:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, Domestic Market
Location:
Baoding, Hebei, China
Contact Supplier Request Quote Chat Now
Yilifang (Hebei) Building Materials Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product introductionProduct introduction
Product information

  • Product category: Bearing grouting material

  • Brand: Yilifang

  • Type: High-strength and early-strength

  • Material: Cement-based, epoxy type

  • Special use: Anchoring grouting

  • Customization: Consult by phone

  • Origin/Manufacturer: Fast delivery across the country

Product real shotProduct picture
Front



Product features

　　1. Early strength and high strength: The strength can reach over 35MPa in 1 day.

　　2. Large fluidity: It can fill all voids and meet the requirements of secondary grouting.

　　3. Non-shrinking: Ensure a tight bond between the equipment and the foundation.

　　4. Low-temperature workability: Allows outdoor construction at an air temperature of -10℃.

　　5. Strong durability: This product is an inorganic cementitious material, and its service life is longer than that of the foundation concrete. After millions of fatigue tests and 50 freeze-thaw cycle tests, the strength shows no obvious change. The strength is significantly improved after being soaked in engine oil for 30 days.


Side



Product Usage

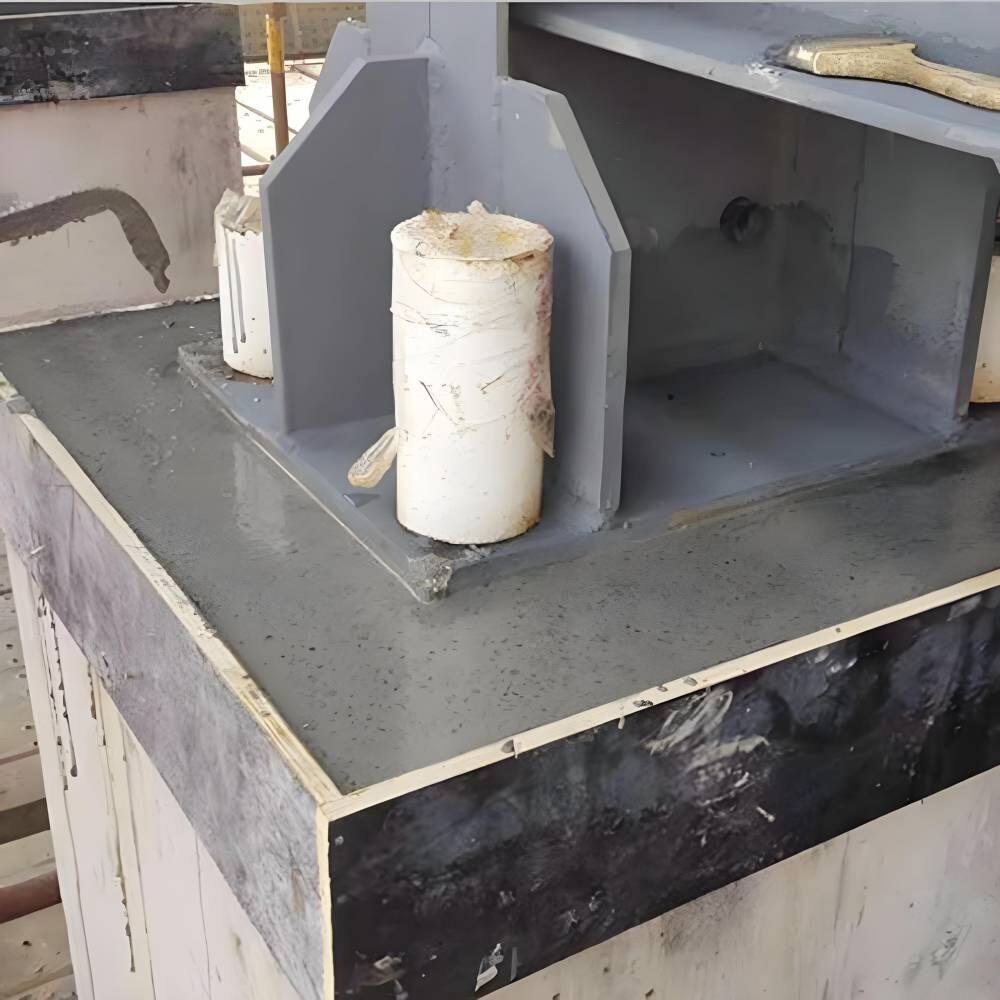

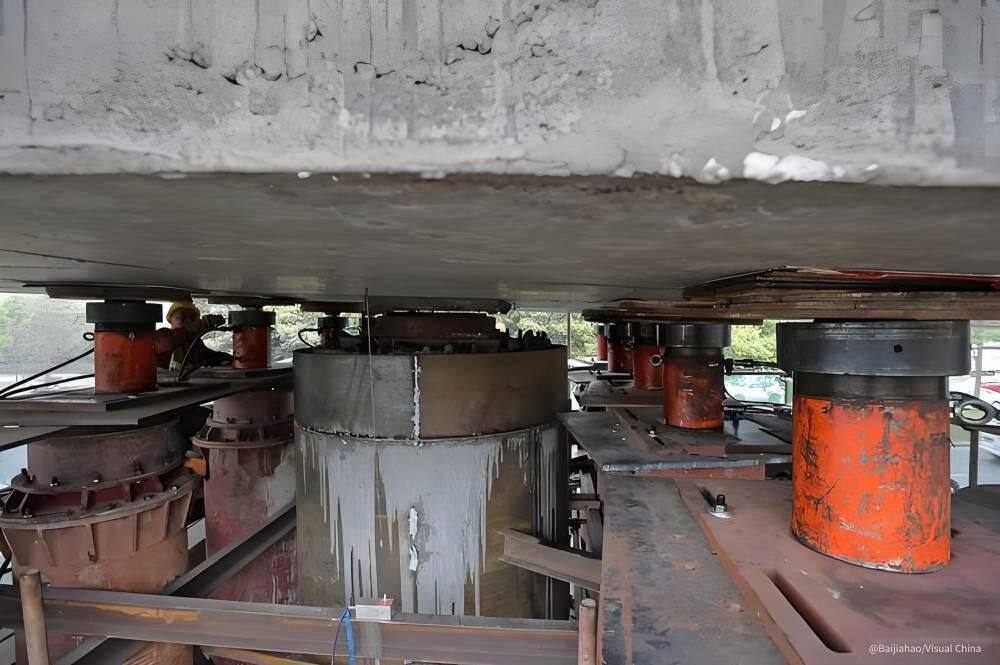

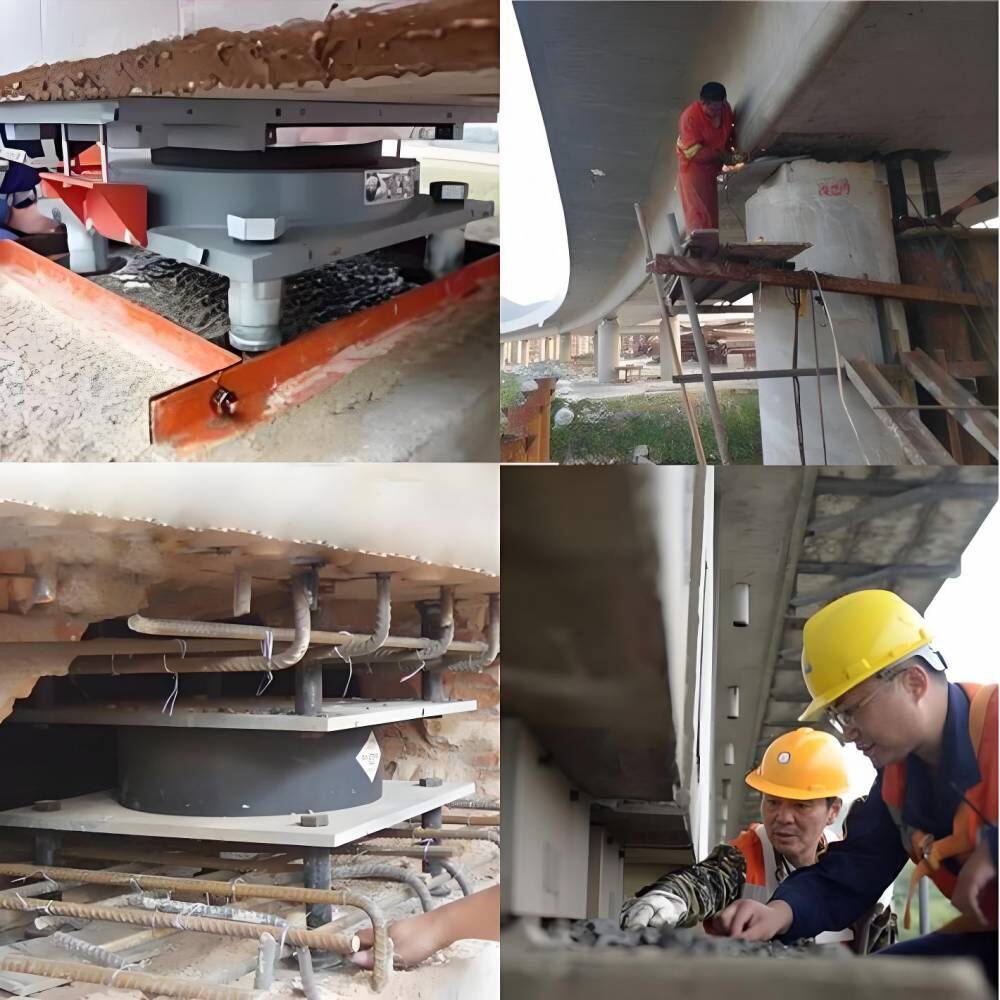

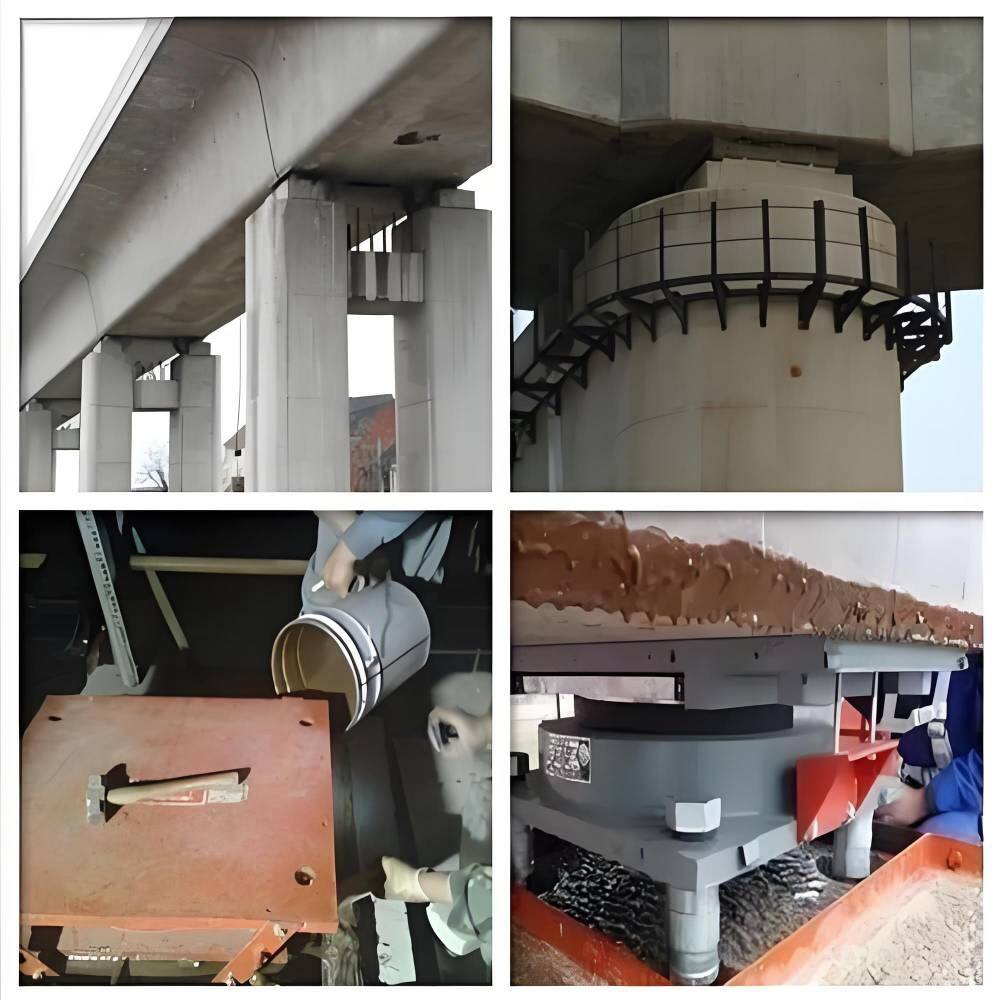

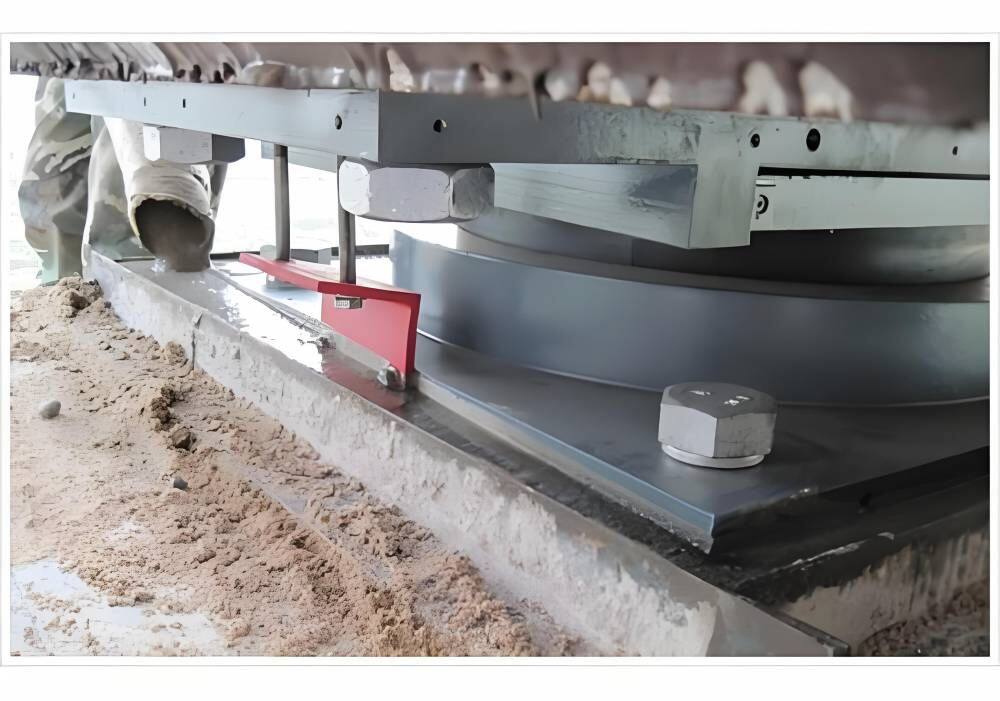

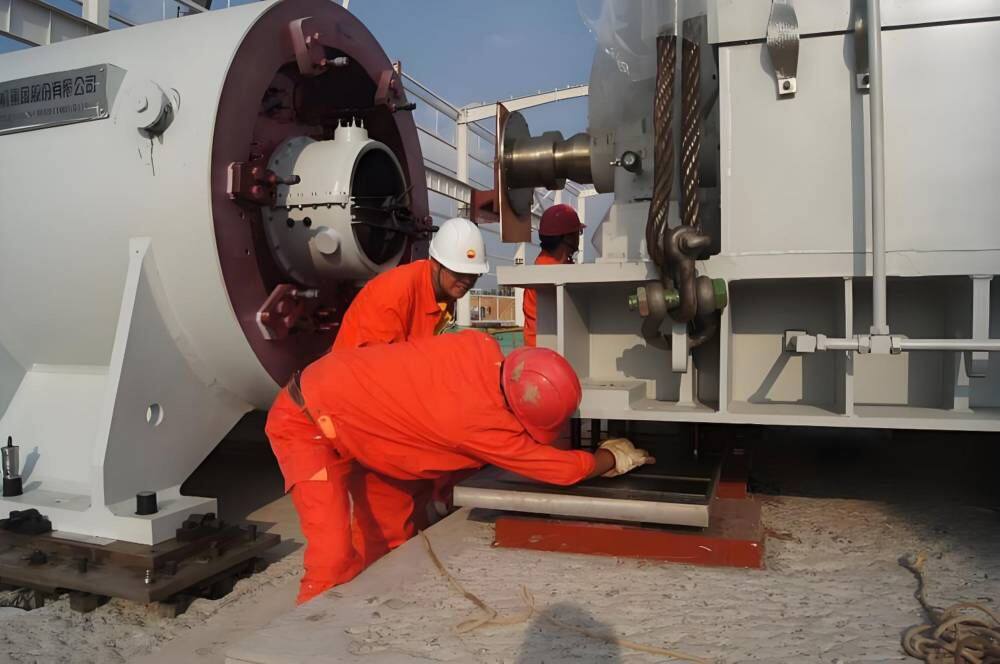

　　It is suitable for grouting construction of components such as column foundations, pile foundations, rock foundations, track pressing plates, bottom plates, and bearings in projects such as railways, highways, bridges, and tunnels.


Back

 Technical Parameters

Fluidity (mm)

Vertical expansion rate (%)

Compressive strength (Mpa)




Initial value shall not be less than

30min
  Retained value shall not be less than

3h

Difference between expansion values at 3h and 24h


2h

1d

3d

28d

300

270

0.1—3.5

0.02-0.5

≥20

≥35

≥45

≥60

　　Construction Instructions


Bottom

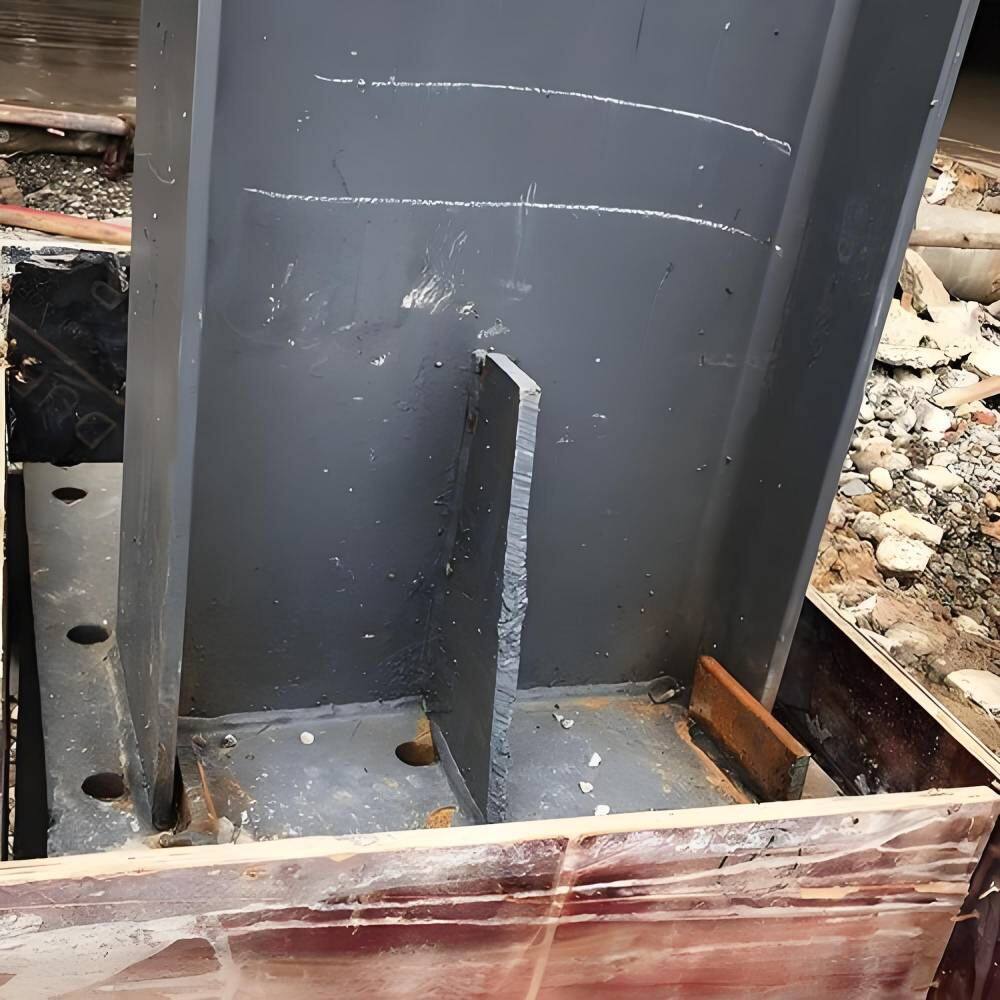

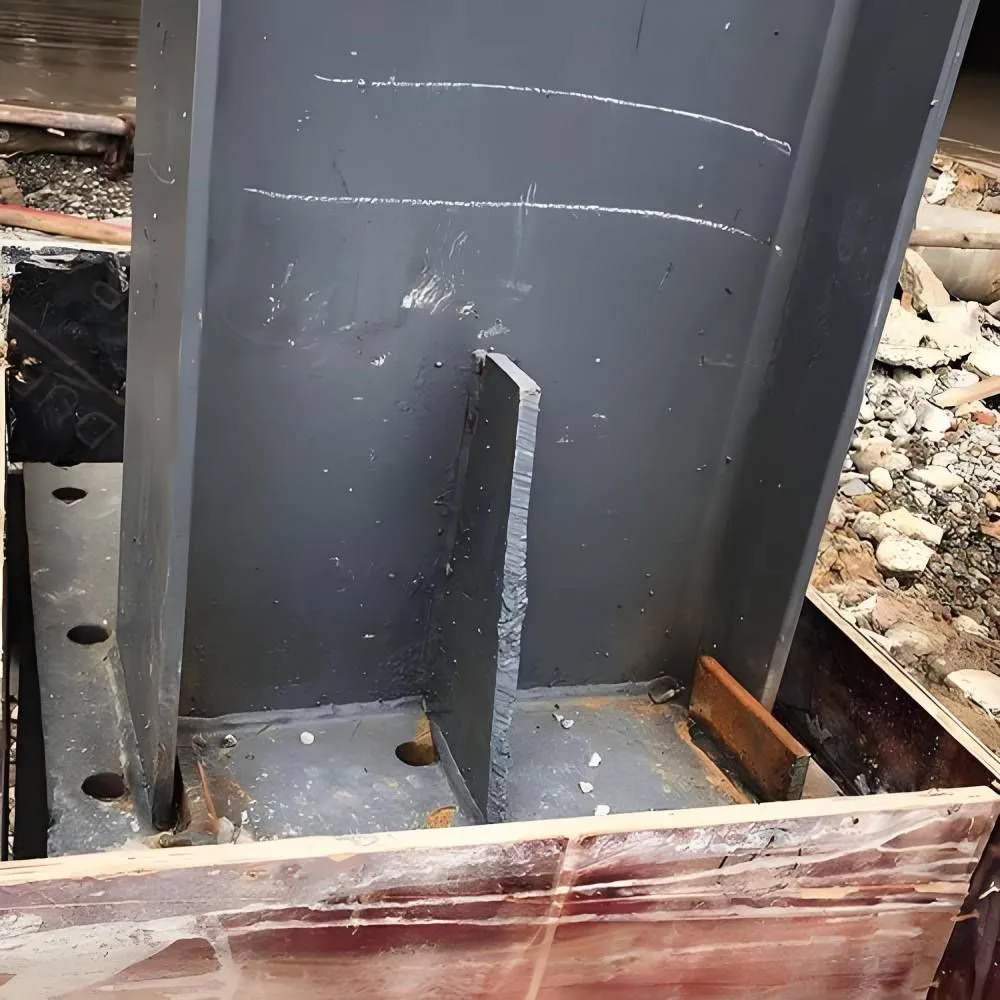

　Step 1: Foundation treatment and formwork support

　　1. Roughen the surface of the concrete foundation or use the special interface agent J-302 concrete re-casting agent for interface treatment. Remove rust and oil stains from the components (such as steel base plates) that will be bonded with the seating grout.

　　2. Moisten the surface of the concrete foundation 24 hours before pouring the seating grout once, and there should be no water accumulation during pouring.

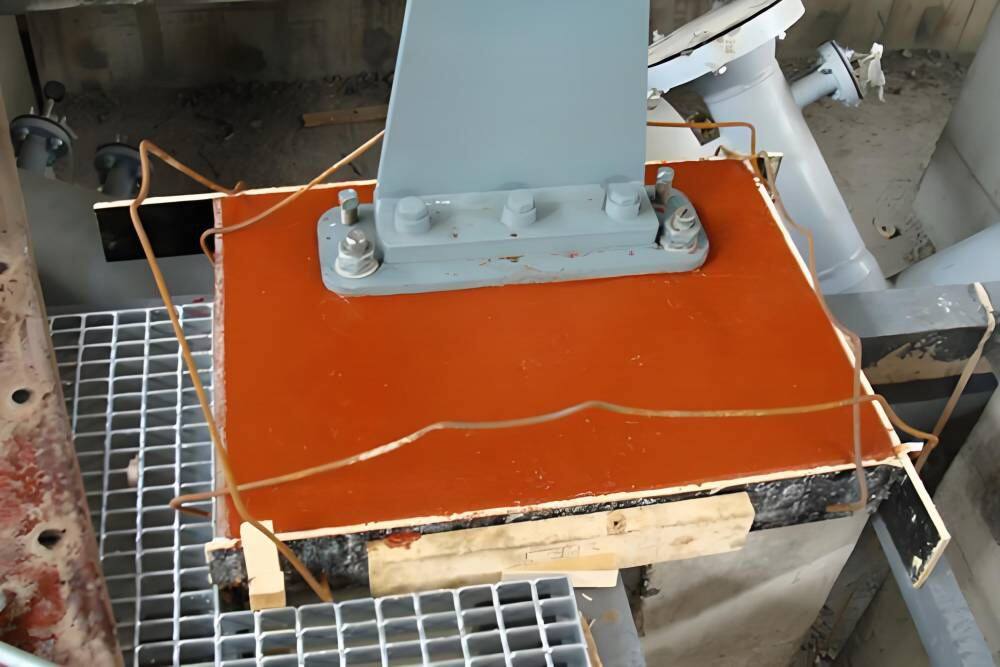

　　3. The baffle should be set up tightly to prevent grout leakage. The joints between the formworks can be sealed with a quick plugging agent.


Product detail drawingProduct detail drawing
Show the product from more angles



Show the product from more angles



Show the product from more angles



Show the product from more angles

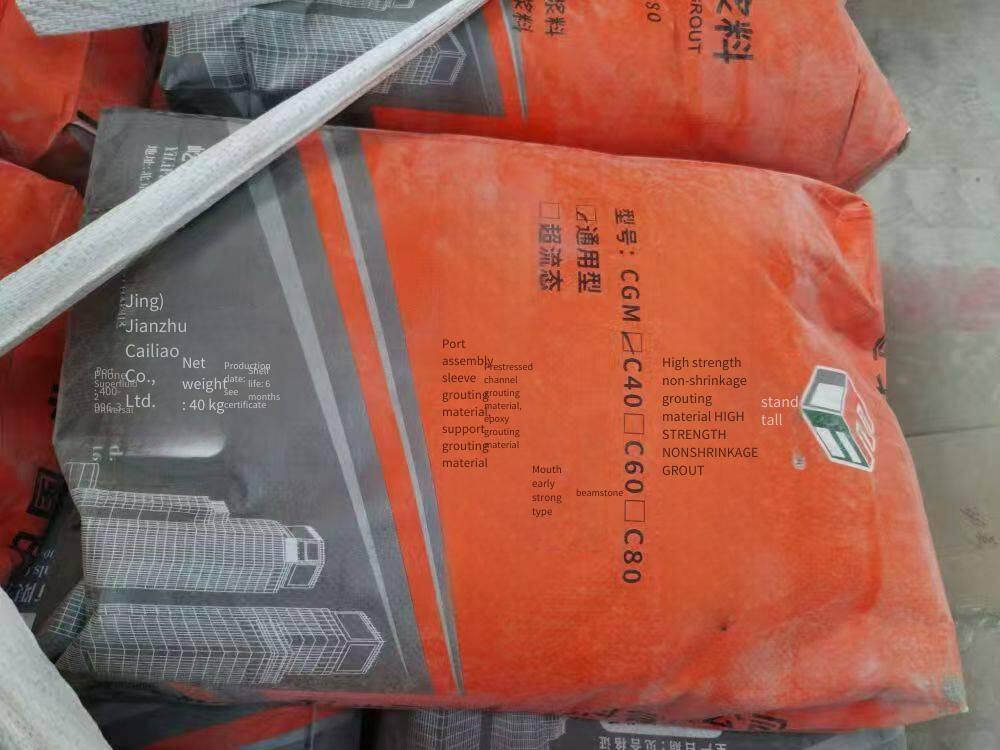

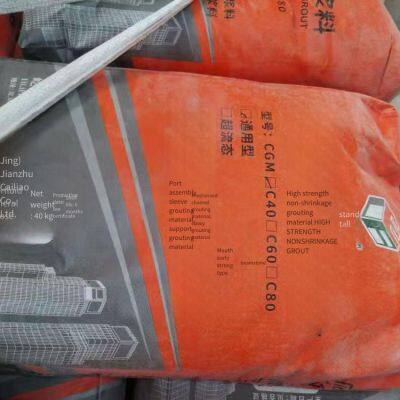

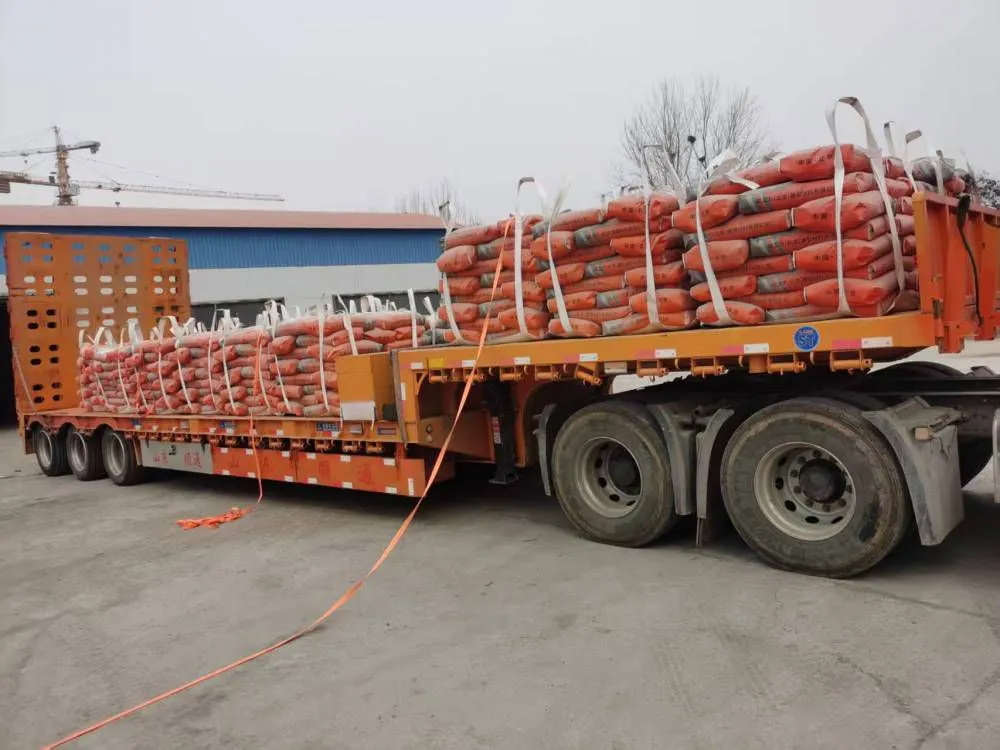

Product packagingProduct packaging



Custom instructionsCustom instructions



Purchase InstructionsPurchase notice

Step 1: Foundation Treatment and Formwork Support

　　1. Rough the surface of the concrete foundation or use the special interface agent J-302 Concrete Re-pouring Agent for interface treatment. Remove rust and oil stains from the components (such as steel base plates) that will be bonded with the seating mortar.

　　2. Moisten the surface of the concrete foundation 24 hours before pouring the seating mortar once, and there should be no standing water during pouring.

　　3. The formwork should be tightly supported to prevent grout leakage. The joints between the formworks can be sealed with a quick plugging agent.

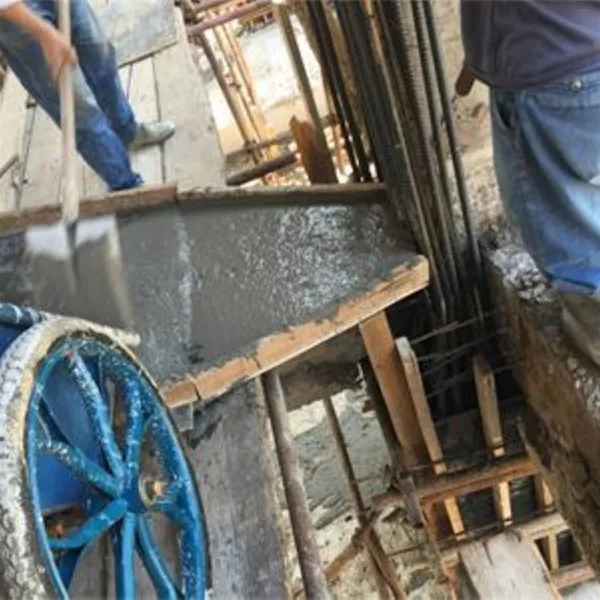

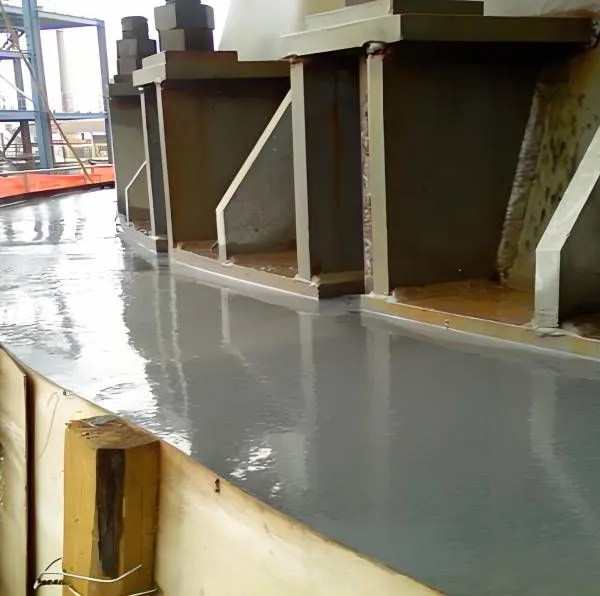

　　Step 2: Grouting Construction

　　1. Add water according to the proportion of 13 - 15% of the weight of the seating mortar and stir evenly.

　　2. During grouting, inject the mortar from one side as much as possible to facilitate the discharge of air between the base plate and the concrete foundation. If necessary, tools such as bamboo slices can be used for diversion. The pouring must be continuous once it starts and cannot be interrupted.

　　Step 3: Curing

　　1. Cover the poured seating mortar with a wet straw bag or cloth and cure it by sprinkling water 2 - 6 times a day.

　　2. The curing temperature should be above 15℃, and the curing period is 7 days. If the on - site temperature is low, the curing period can be appropriately extended.

　　3. Thermal insulation measures should be taken for winter construction.

　　Step 4: Form Removal

　　Form removal should be carried out 24 hours after the pouring is completed, and curing should continue after form removal.

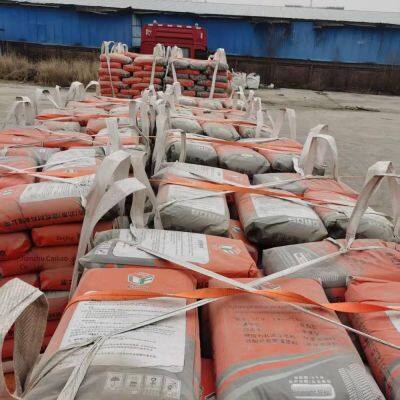

　　Packaging, Storage and Transportation

　　1. The standard packaging specification is 40 kg ± 1 kg per bag.


Product Tags: Bearing grouting material , Hebei bearing grouting material , Cement bearing grouting material , High-strength bearing grouting material , Bridge bearing grouting material
