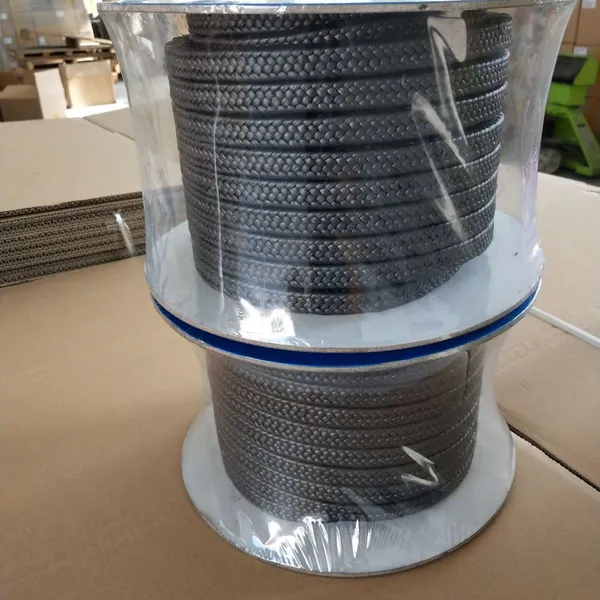

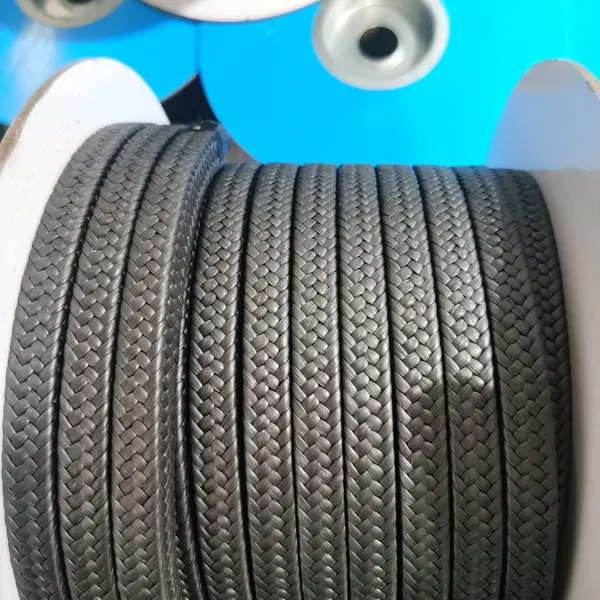

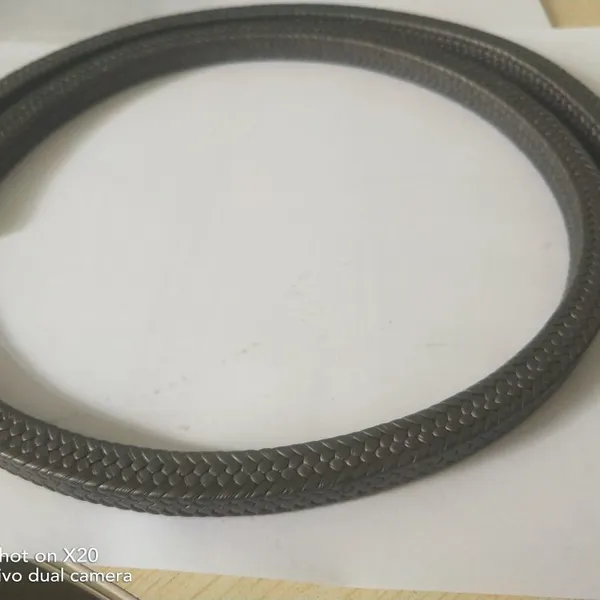

Help CenterGraphited PTFE Packing
Product Spotlights
Related Products
DESCRIPTION:
Braided packing made of PTFE yarn containing graphite particles and anti-corrosive lubricant. It is recommended for shafts for almost all chemicals. Stability and long service lift are achieved by low friction coefficient. It has great tear strength and high thermal conductivity. This self-lubricating packing does not score the shaft and minimizes sleeve replacement cost. For use in pumps, valves, reciprocating and rotating shafts, mixers and agitators. Especially designed for services involving surface speeds and temperature higher than those normally specified for pure PTFE packings. Can be safely used in all chemical pump applications with the exception of molten alkali metals, fluoride, fuming nitric acid and other strong oxidizing agents. It is also against water, steam, petroleum derivatives, vegetable oil and solvents.
GENERAL PARAMETER:
ITEM |
Rotating |
Reciprocating |
Static |
|
Pressure Psi bar Kg/cm2 |
15 |
100 |
150 |
Shaft speed M/s |
12 |
6 |
|
Density g/cm3 |
1.5 |
||
Temperature °C |
－150~+260 |
||
PH range |
0-14 |
STOCK DIMENSIONS
Sizemm |
4 |
5 |
6 |
8 |
10 |
12 |
14 |
15 |
16 |
18 |
19 |
20 |
appr. m/kg |
45 |
29 |
21 |
12 |
7.4 |
5.1 |
3.8 |
2.9 |
2.3 |
1.9 |
1.6 |
1.3 |
kg/coil |
2.5 |
5,10 |
