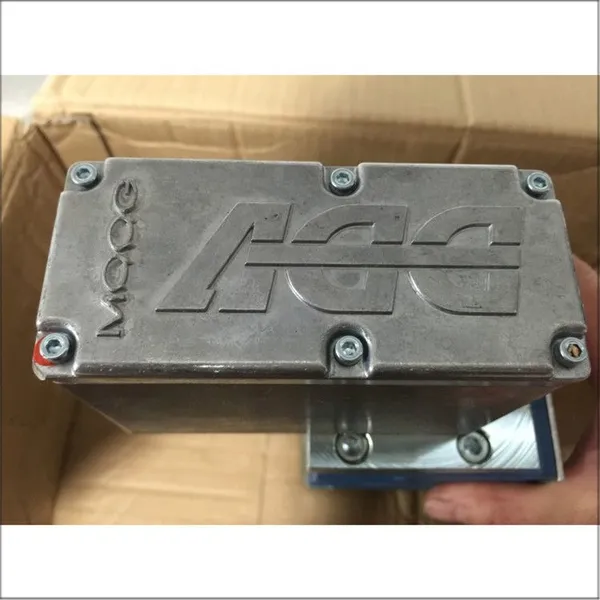

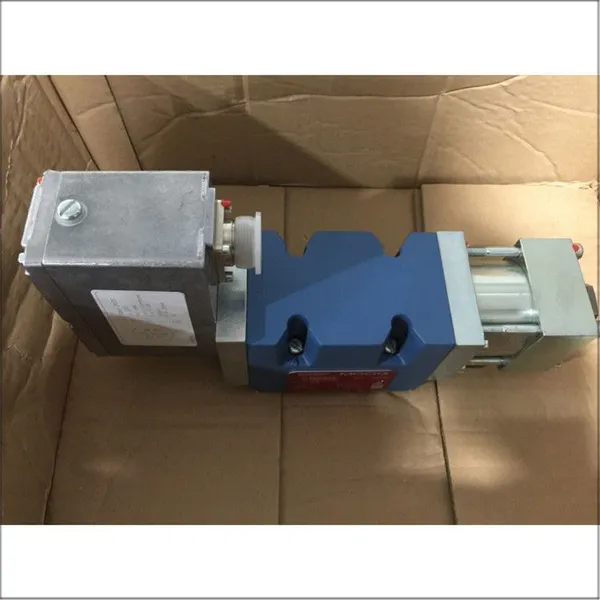

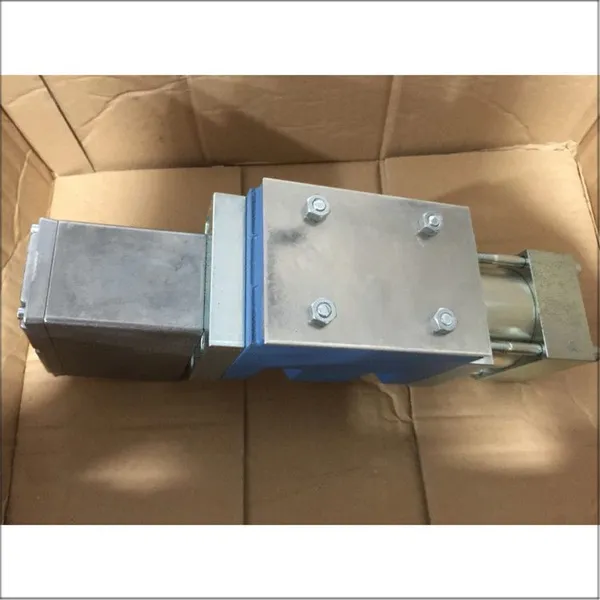

MOOG D634-501A is a high-performance direct acting live feedback servo proportional valve produced by MOOG company, widely used in high-precision hydraulic servo systems, such as aerospace test benches, wind turbine pitch testing platforms, precision injection molding equipment, and other scenarios that require extremely high dynamic response and control accuracy. Its core selling points are as follows:
Core product selling points
Direct acting structure, fast response speed
Adopting a direct acting force motor drive, the traditional pilot stage amplification link is eliminated, and the valve core is directly pushed by the force motor. The step response time is less than 8ms, far superior to ordinary pilot proportional valves (25-40ms), achieving millisecond level fast response.
Built in LVDT electrical feedback, high control accuracy
Equipped with a linear variable differential transformer (LVDT), it performs real-time sampling and closed-loop correction of valve core displacement throughout the entire stroke, with hysteresis less than 0.2% and linearity better than ± 0.25% FS, ensuring that the command signal is highly consistent with the actual flow/pressure output, suitable for position and speed closed-loop control.
Strong anti pollution ability and more stable operation
Due to the absence of small pilot throttle holes, the requirement for oil cleanliness is relatively low, and it can adapt to ISO 4406 18/15 grade oil, significantly reducing the frequency of filter element replacement and system shutdown maintenance time, and improving the overall availability of the machine.
High reliability and long-term stability
Each original MOOG valve comes with a globally unified serial number and factory calibration report, which can be traced back to the assembly station of the East Aurora factory in New York, USA, ensuring product consistency and quality traceability, meeting the quality system requirements of high-end equipment manufacturers.
Significant improvement in system level performance
In practical applications, after replacing the original imported brand pilot valve, the system's repeated positioning accuracy has been improved by an average of 37%, the pressure control overshoot has been reduced by 62%, and the comprehensive operating efficiency of the equipment has achieved substantial breakthroughs.
Widely used in high dynamic working conditions
Suitable for complex control scenarios such as servo cylinder positioning, material fatigue test loading, and multi axis coordinated pressing, it is a benchmark level actuator for high-end hydraulic systems in aerospace, new energy, marine engineering, and other fields.
Support high-precision system integration

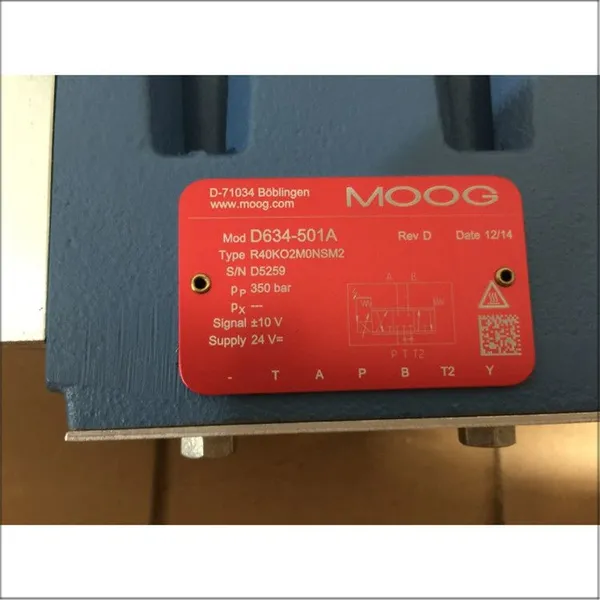

Nominal pressure: 35 MPa
Nominal diameter: 10mm
Control signal: ± 10V
Rated voltage: 24V
Rated flow rate: 100 L/min (△ PN=7MPa)
Installation form: Plate installation, in accordance with ISO 4401-07-06-0-05 standard
Easy to seamlessly integrate with mainstream controllers and hydraulic systems.
Original genuine product guarantee, complete service support
There are a large number of imitations or compatible products on the market, but the original MOOG valve has small zero drift under high temperature continuous operation, the magnetic circuit of the force motor matches the original factory parameters, and the material thermal expansion coefficient is consistent. Its long-term stability far exceeds that of non original products. Suppliers such as Ningbo Bingsheng Industrial Technology Co., Ltd. provide full cycle technical support from selection, integration to on-site debugging.
